Testing Condition:

WARNING: This page is about a different variant/trim than selected.

Always perform test at a temperature of 5°C (41°F) or more.

WITH CONSULT-II

  1. Start engine and warm it up to normal operating temperature.
  2. Turn ignition switch OFF and wait at least 5 seconds.
  3. Start engine and let it idle for at least 70 seconds.
  4. Select "PURG FLOW P0441" of "EVAPORATIVE SYSTEM" in "DTC WORK SUPPORT" mode with CONSULT-II.
  5. Touch "START".

    If "COMPLETED" is displayed, go to step  7.

  6. When the following conditions are met, "TESTING" will be displayed on the CONSULT-II screen. Maintain the conditions continuously until "TESTING" changes to "COMPLETED". (It will take at least 35 seconds.)
    Fig 1: Identifying Selector Level And Suitable Position Chart
    G00771551Courtesy of NISSAN MOTOR CO., U.S.A.

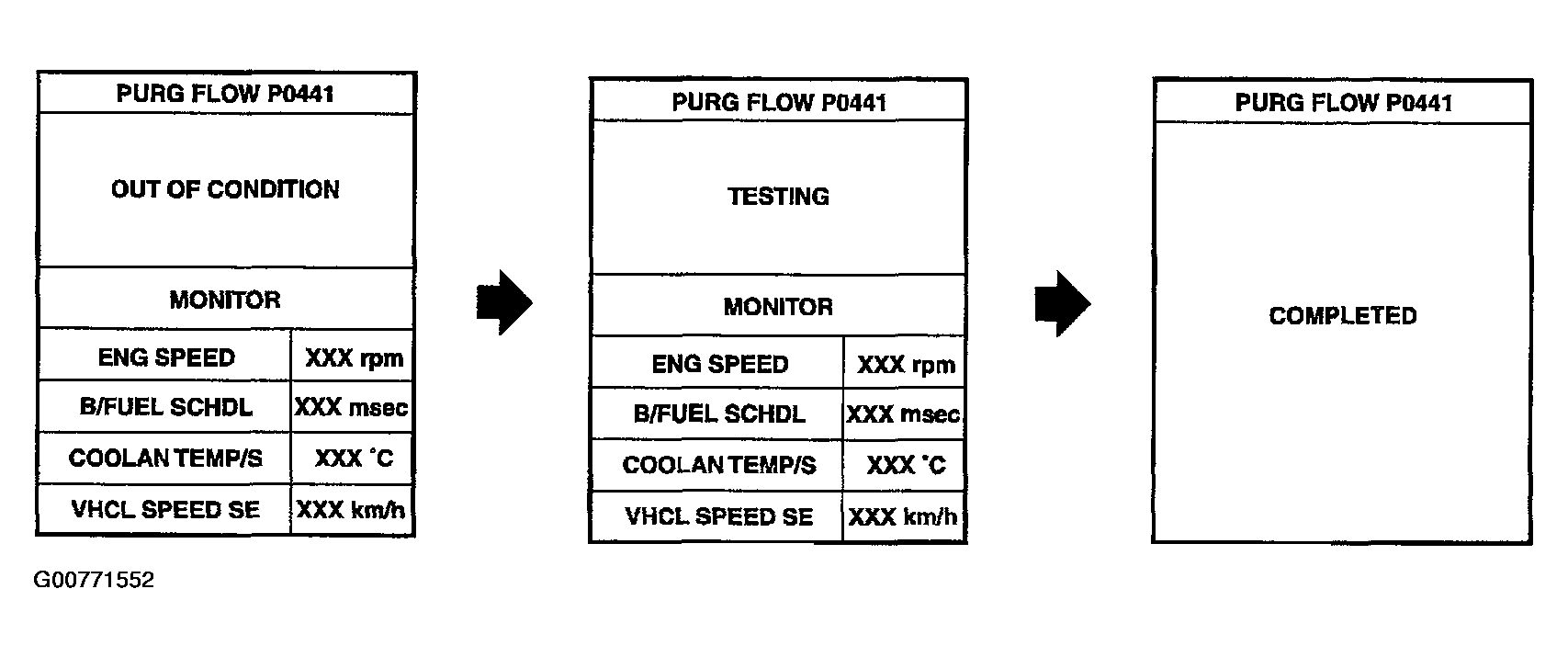

    Fig 2: Identifying Scan Tool Display
    G00771552Courtesy of NISSAN MOTOR CO., U.S.A.

    If "TESTING" is not changed for a long time, retry from step   2 .

  7. Make sure that "OK" is displayed after touching "SELF-DIAG RESULTS". If "NG" is displayed, refer to "DIAGNOSTIC PROCEDURE ".
