Vacuum Hose Drawing

WARNING: This page is about a different variant/trim than selected.

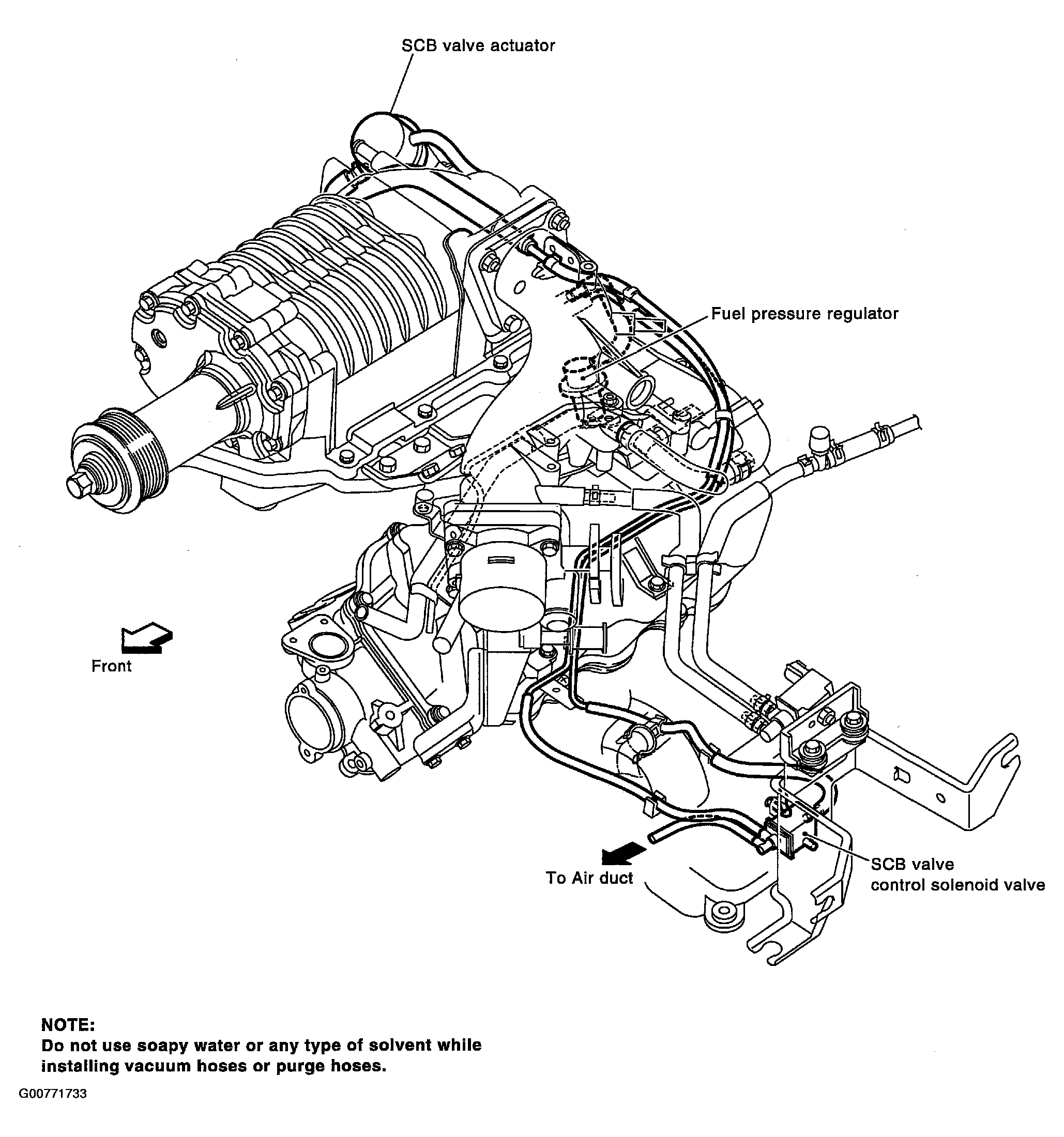

Fig 1: Identifying Vacuum Hose Drawing
G00771733Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "SYSTEM DIAGRAM " for Vacuum Control System.
