Work Item

WARNING: This page is about a different variant/trim than selected.

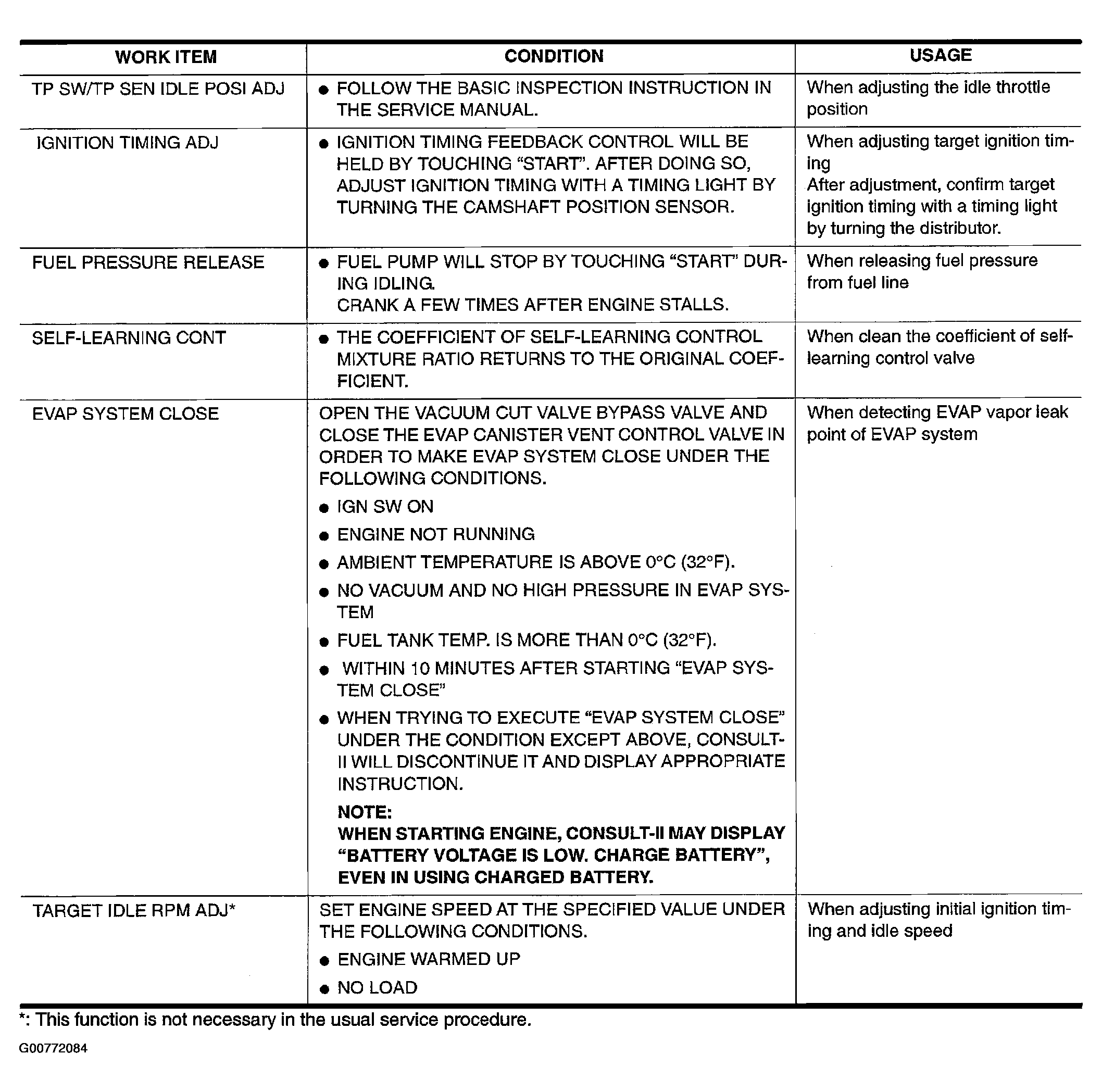

Fig 1: Work Support Mode Chart
G00772084Courtesy of NISSAN MOTOR CO., U.S.A.
