Monitored Items

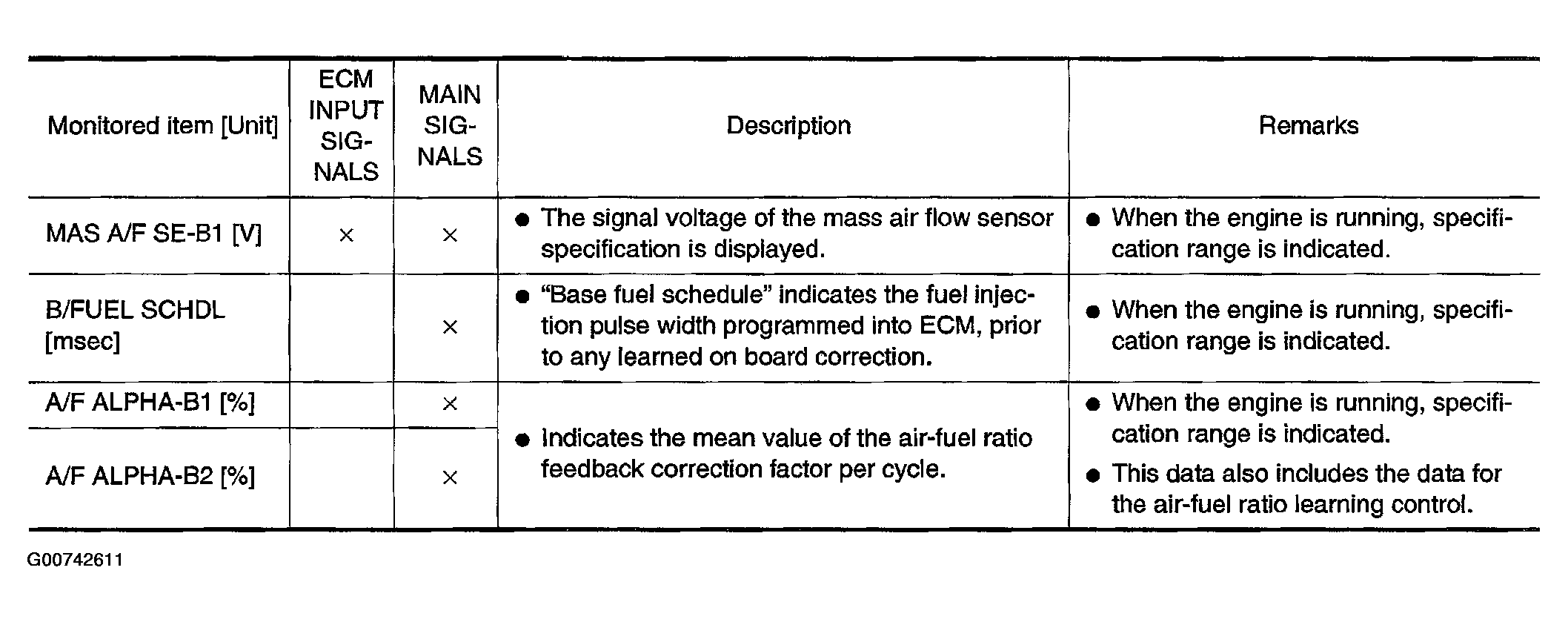

Fig 1: Data Monitor (Spec) Mode Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
