Component Description

The fuel tank temperature sensor is used to detect the fuel temperature inside the fuel tank. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the fuel temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

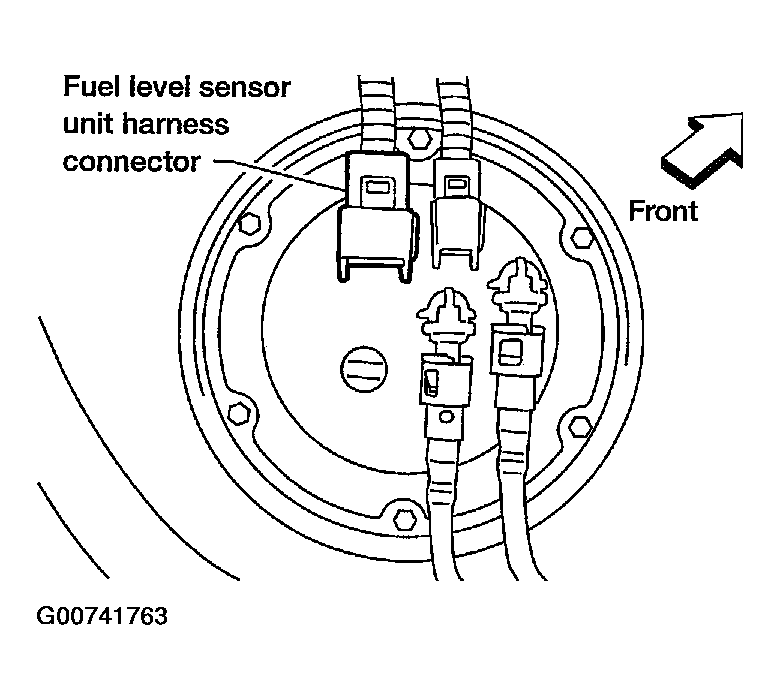

Fig 1: Locating Fuel Level Sensor Unit Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Reference Data

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Resistance/Temperature Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
