Terminals and Reference Value for Display Control unit
Terminals and Reference Value for Display Control unit

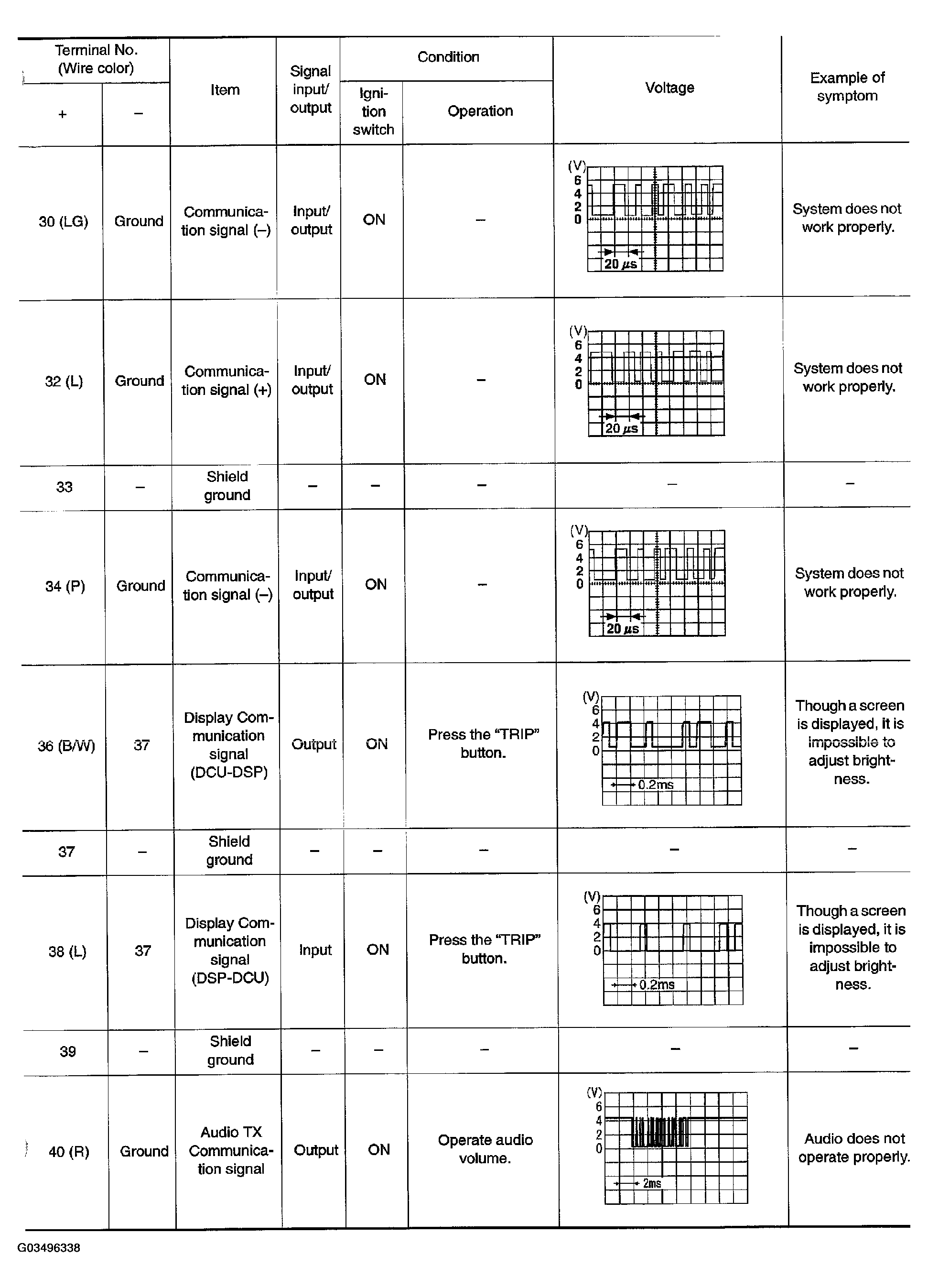

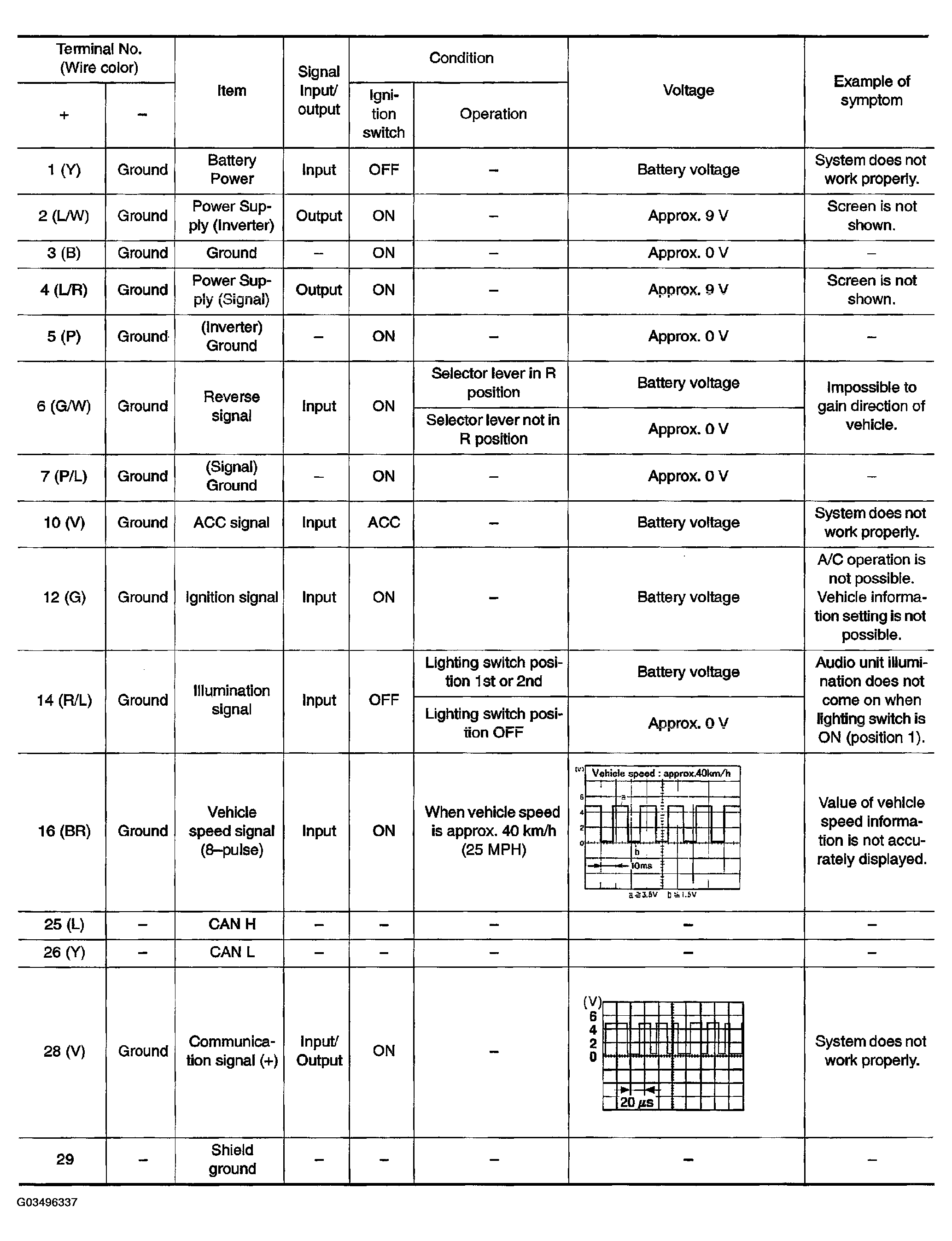

Fig 1: Terminals & Reference Value For Display Control Unit Chart (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

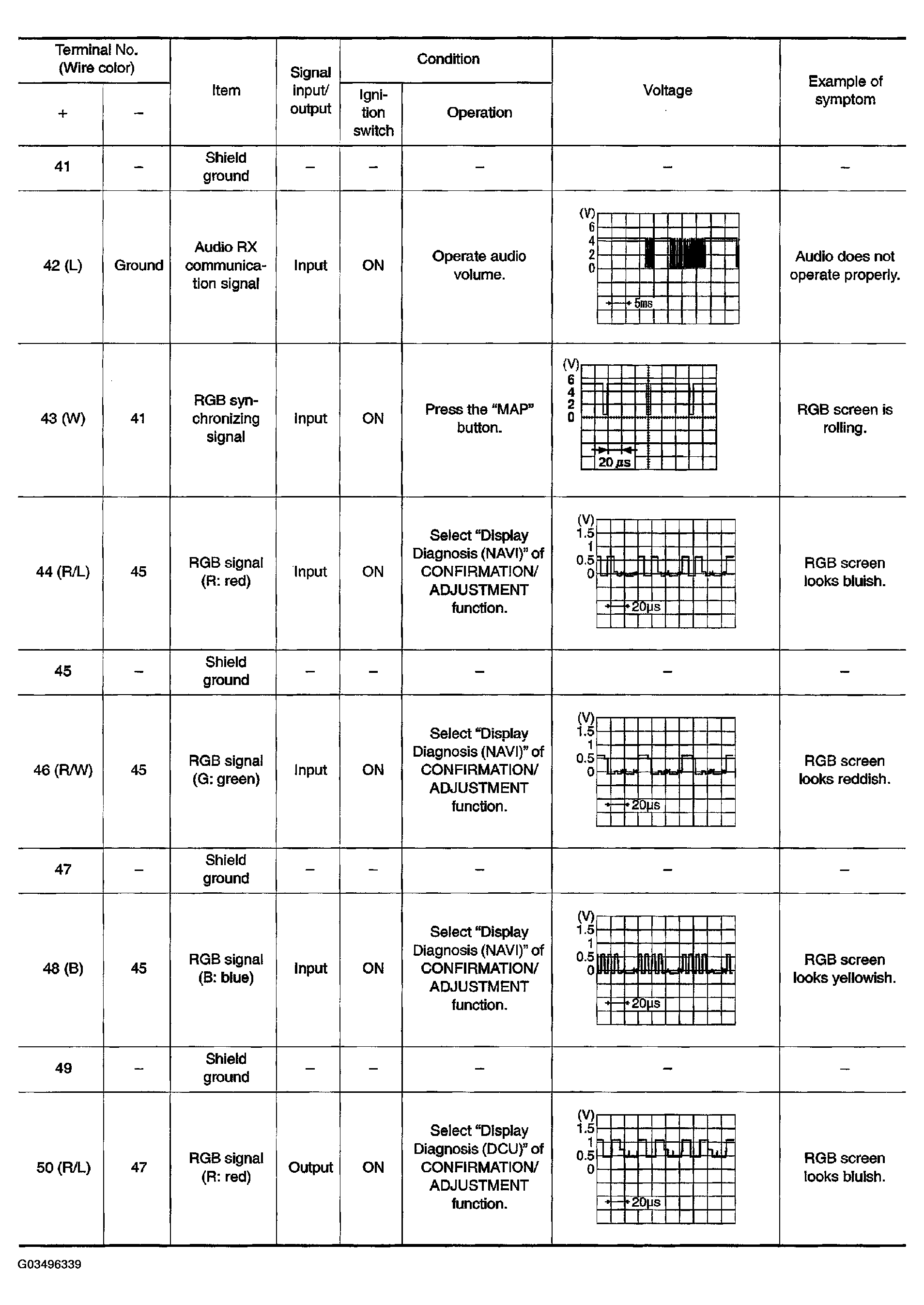

Fig 2: Terminals & Reference Value For Display Control Unit Chart (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

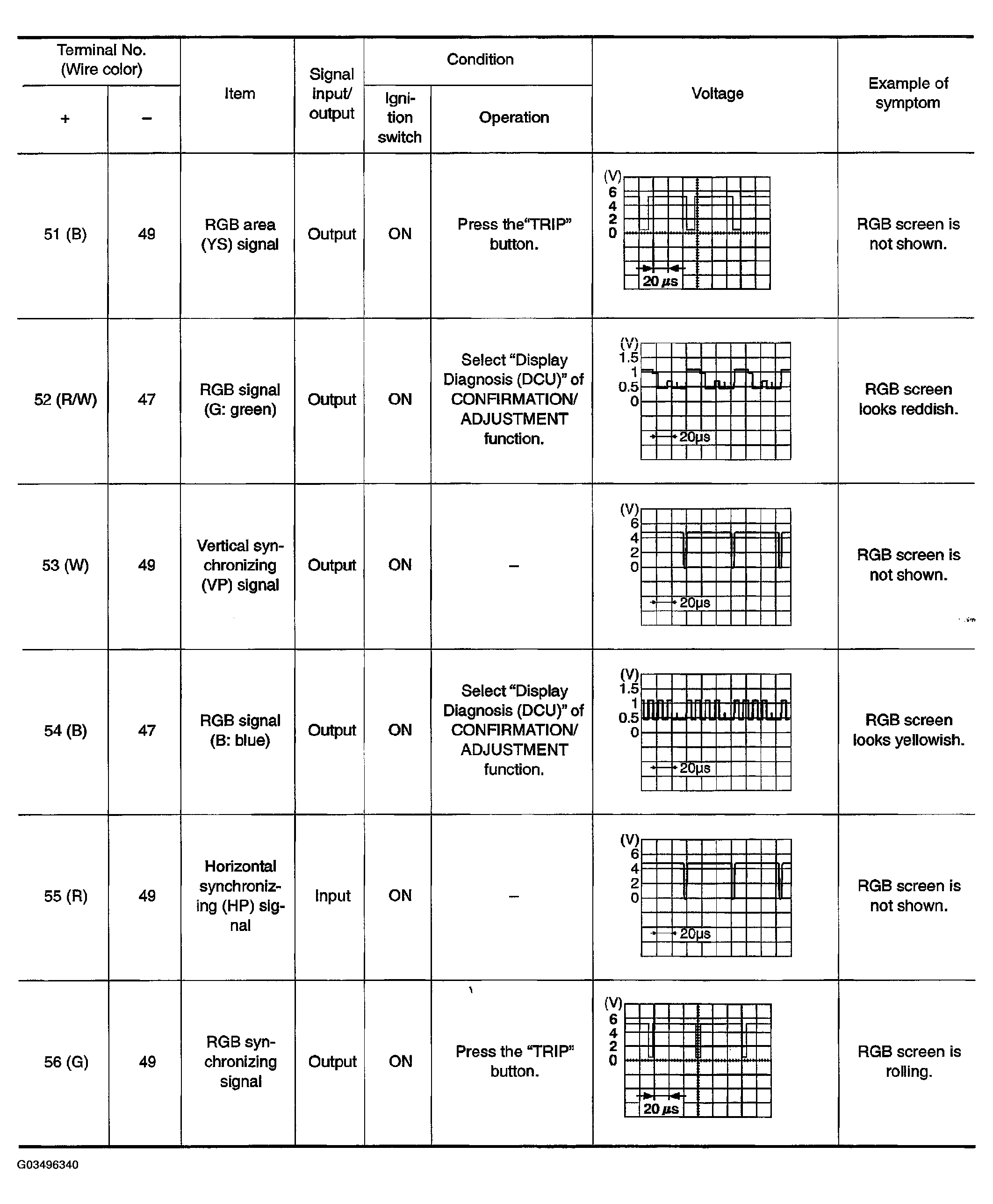

Fig 3: Terminals & Reference Value For Display Control Unit Chart (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Terminals & Reference Value For Display Control Unit Chart (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
