Terminals and Reference Value for NAVI Control Unit
Terminals and Reference Value for NAVI Control Unit

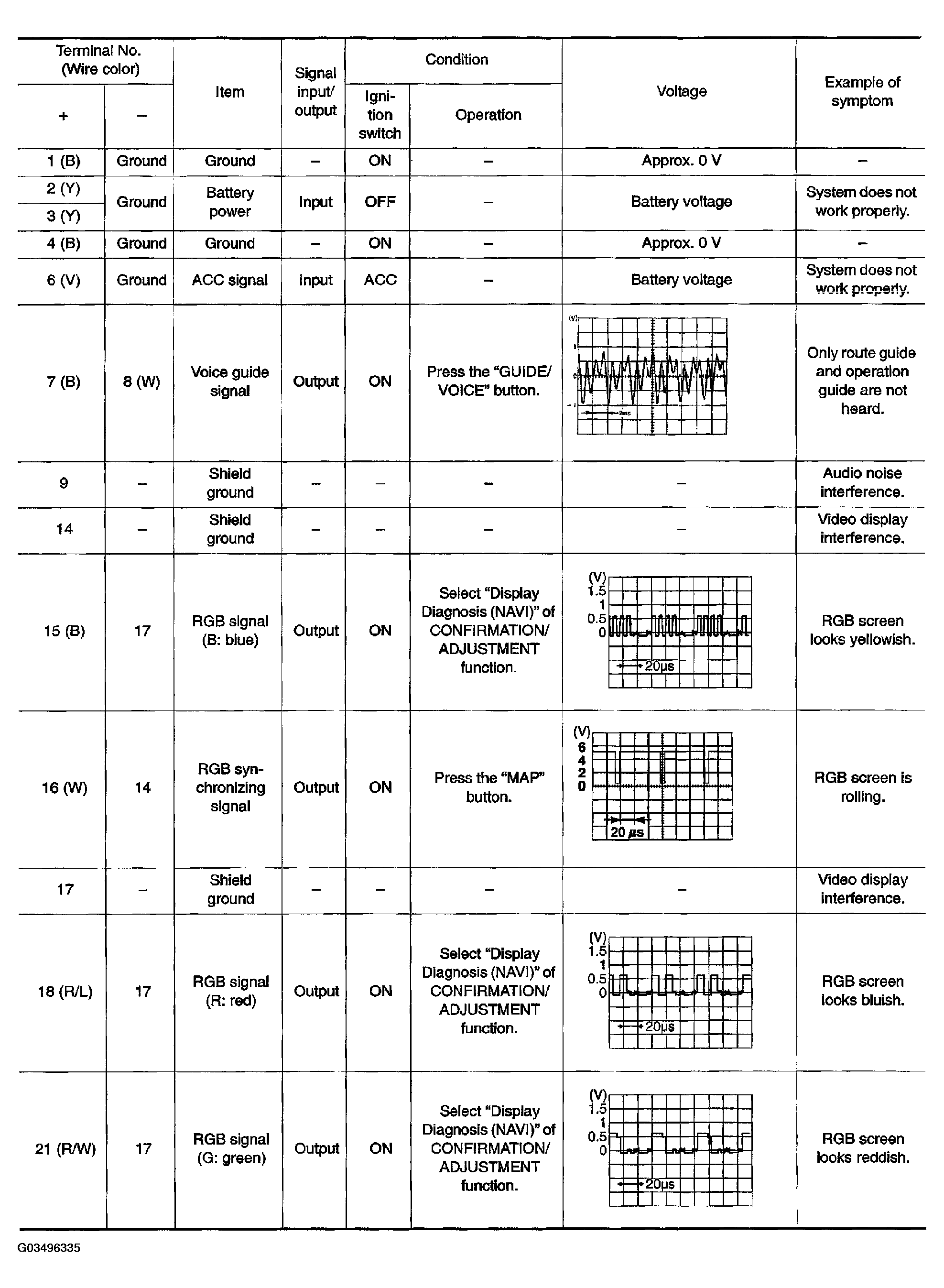

Fig 1: Terminals & Reference Value For NAVI Control Unit Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

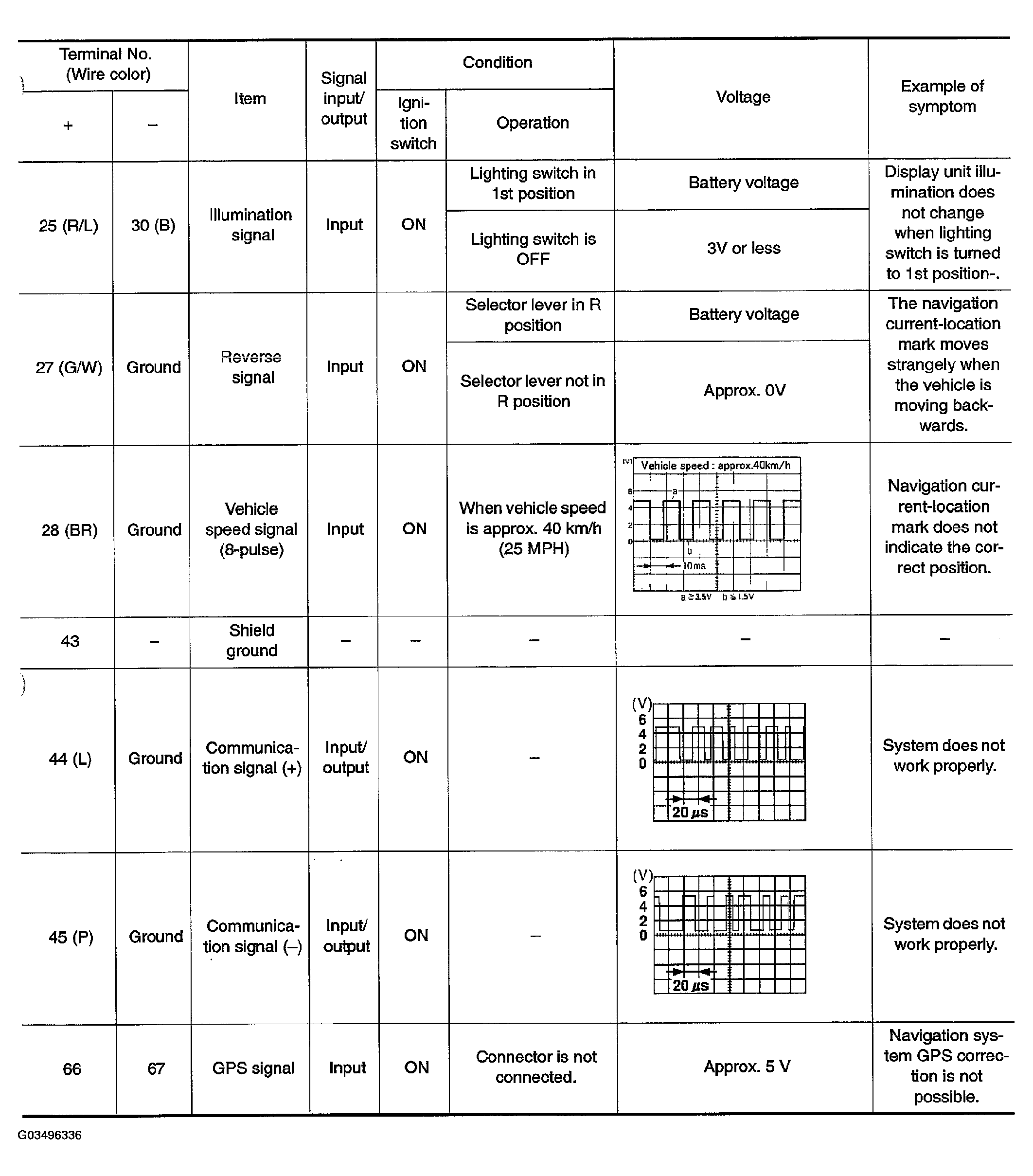

Fig 2: Terminals & Reference Value For NAVI Control Unit Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
