On Board Diagnosis Logic

This self-diagnosis has the one trip detection logic.

NOTE: If DTC P0121 is displayed with other DTC, first perform the trouble diagnosis for the displayed other DTC.

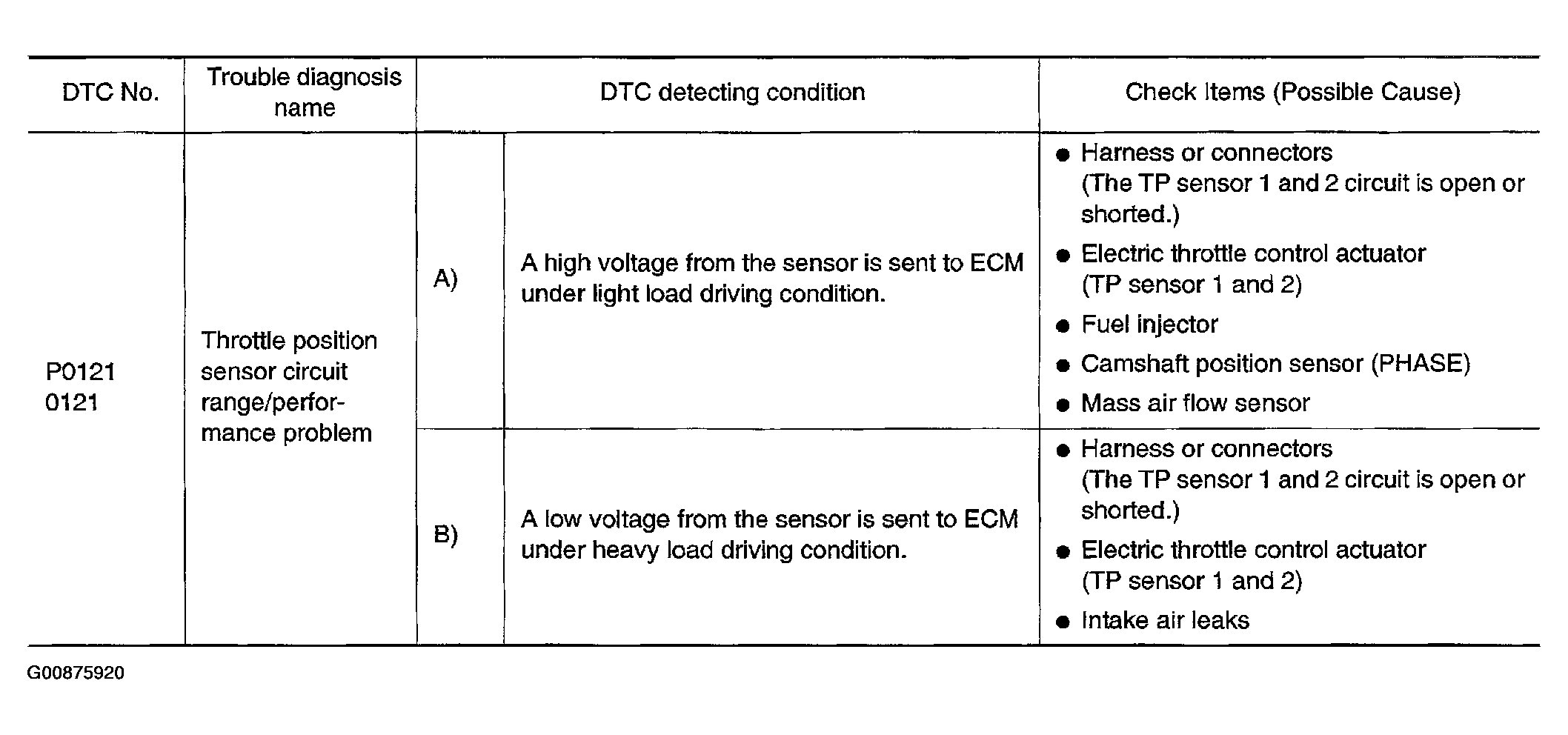

Fig 1: On Board Diagnosis Logic

Courtesy of NISSAN MOTOR CO., U.S.A.
