EGR Temperature Sensor

Turn ignition switch OFF.
Disconnect EGR temperature sensor harness connector.
Check resistance between EGR temperature sensor terminals 1 and 2 as shown in Fig 1 .

Fig 1: Testing EGR Temperature Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data>

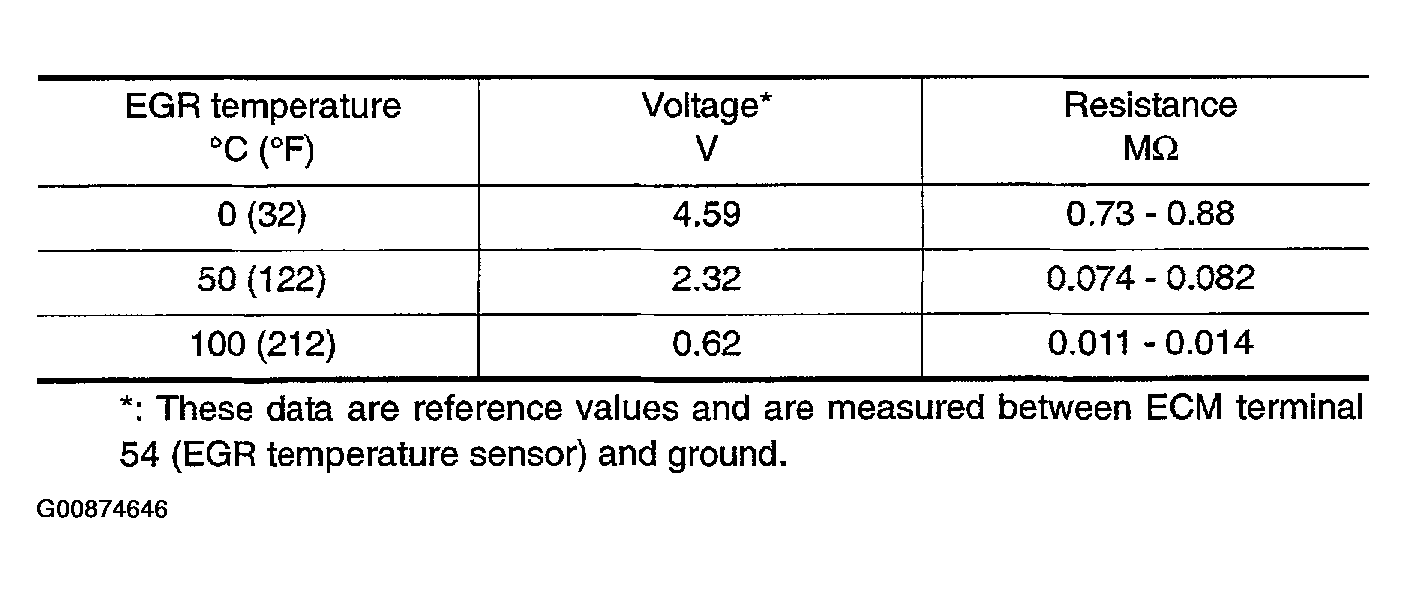

Fig 2: Reference Data
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace EGR temperature sensor.

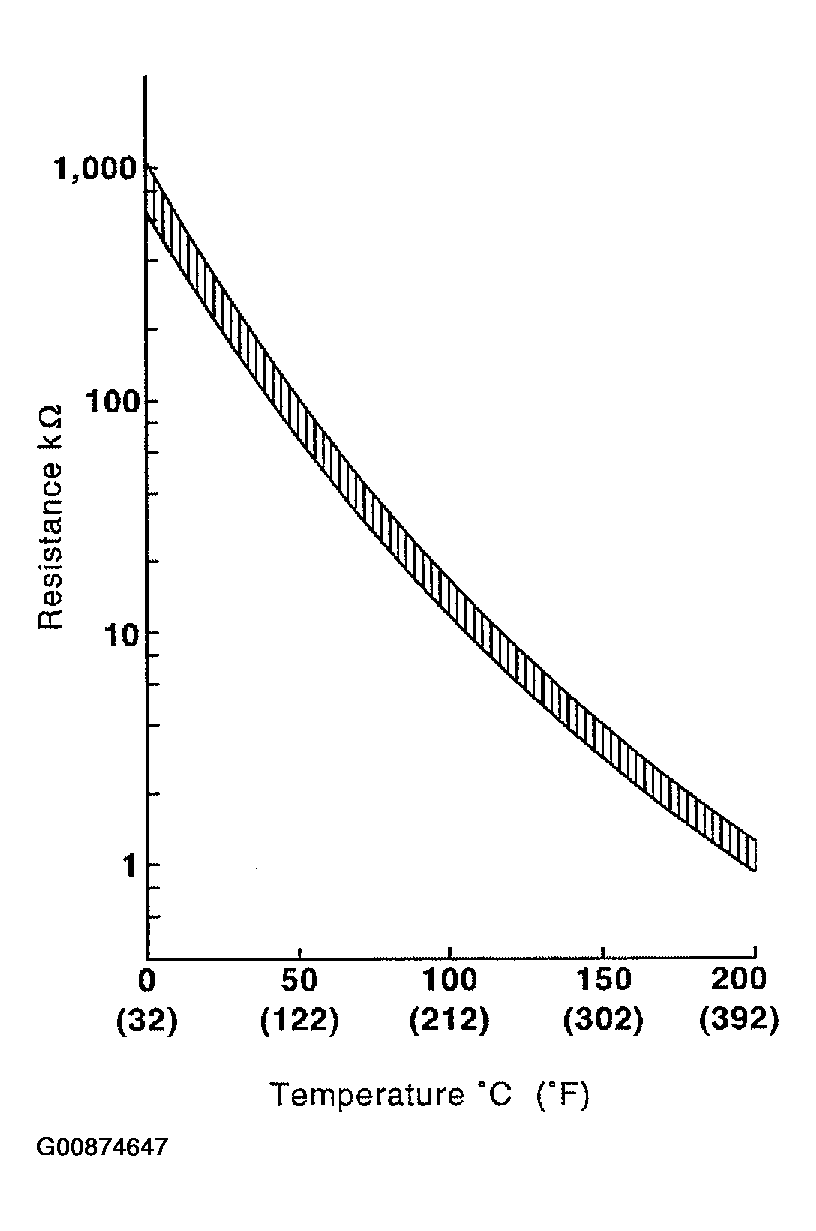

Fig 3: As The Temperature Increases, EGR Temperature Sensor Resistance Decreases

G00874647

Courtesy of NISSAN MOTOR CO., U.S.A.
