With CONSULT-II

  1. Turn ignition switch ON.
  2. Select "MAIN SW", "RESUME/ACC SW", "SET SW" and "CANCEL SW" in "DATA MONITOR" mode with CONSULT-II.
  3. Check each item indication under the following conditions.

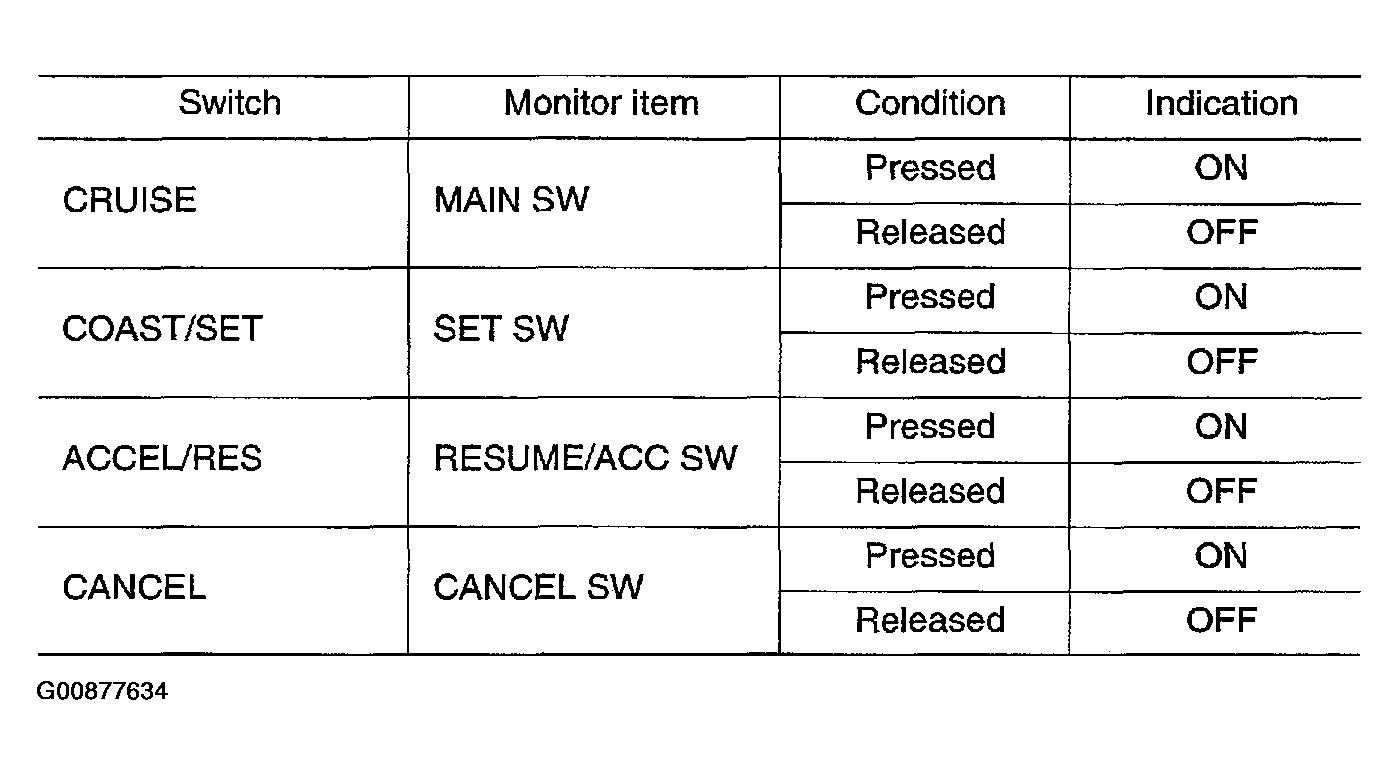

Fig 1: Check Each Item Indication Under The Following Conditions
G00877634Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: CONSULT-II Display Screen
G00877635Courtesy of NISSAN MOTOR CO., U.S.A.
