Engine Control System - Introduction
›
Power Supply Circuit For ECM
›
Diagnostic Procedure
›
4) Check Ground Connections
4) Check Ground Connections
Turn ignition switch OFF.
Loosen and retighten four ground screws on the body.

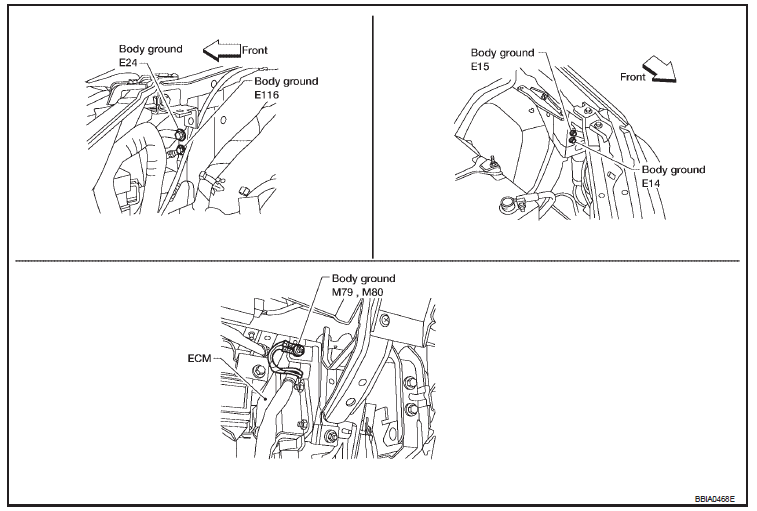

Fig 1: Locating Ground Screws On Body
Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
OK: GO TO 5.
NG: Repair or replace ground connections.
