Mil And Data Link Connector: Wiring Diagram

For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

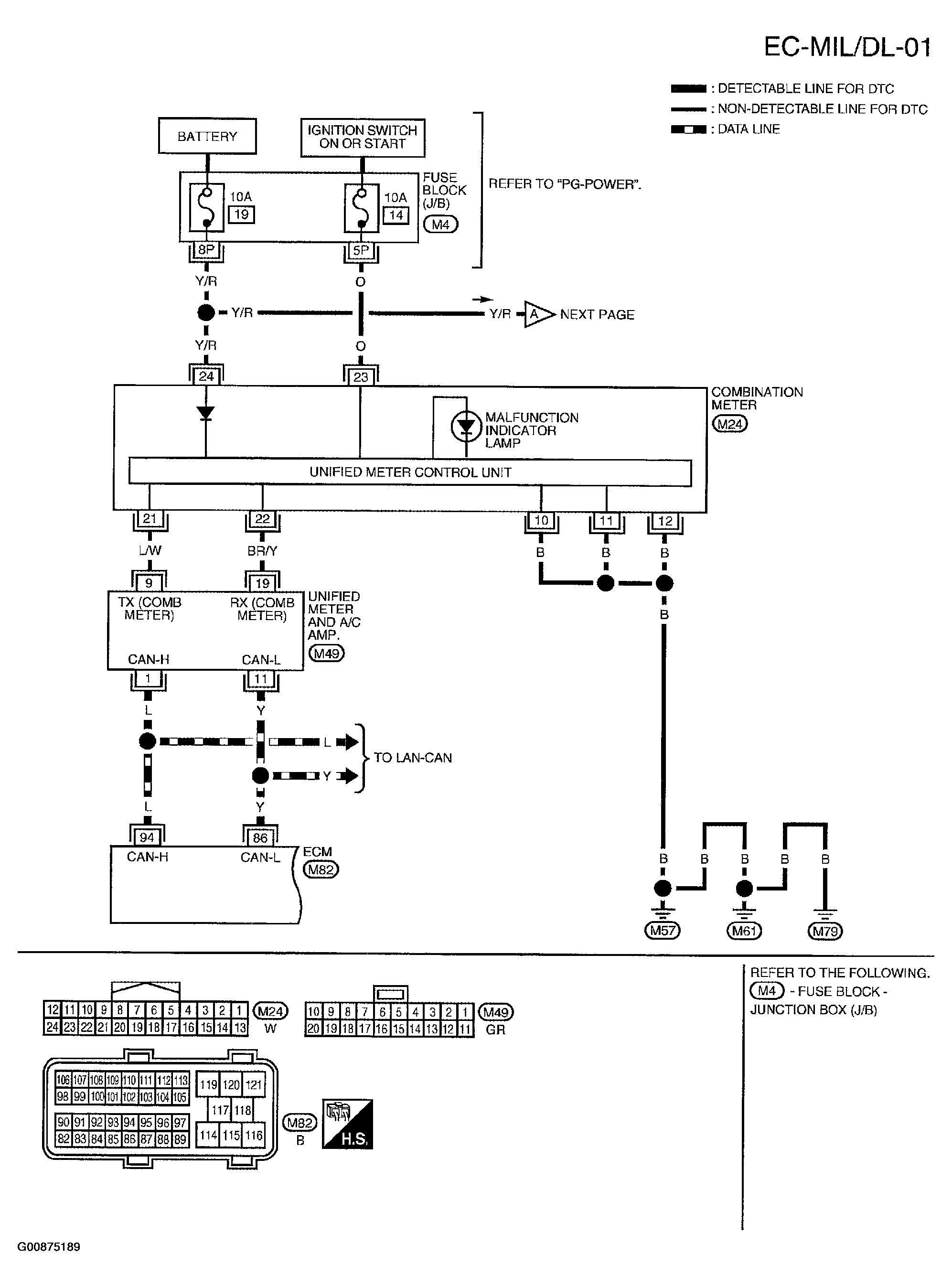

Fig 1: Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

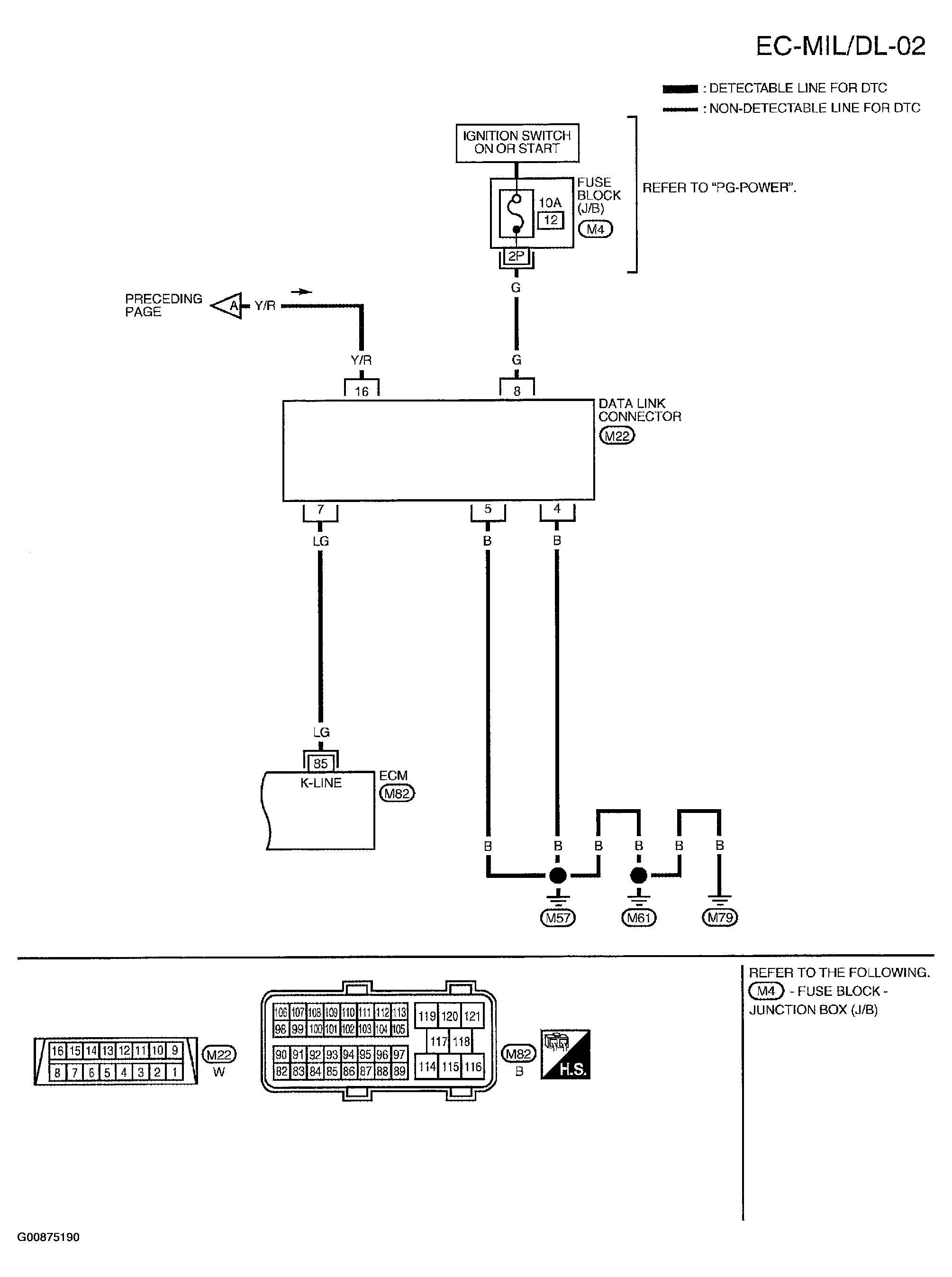

Fig 2: Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
