Terminals and Reference Value for AV Switch
Terminals and Reference Value for AV Switch

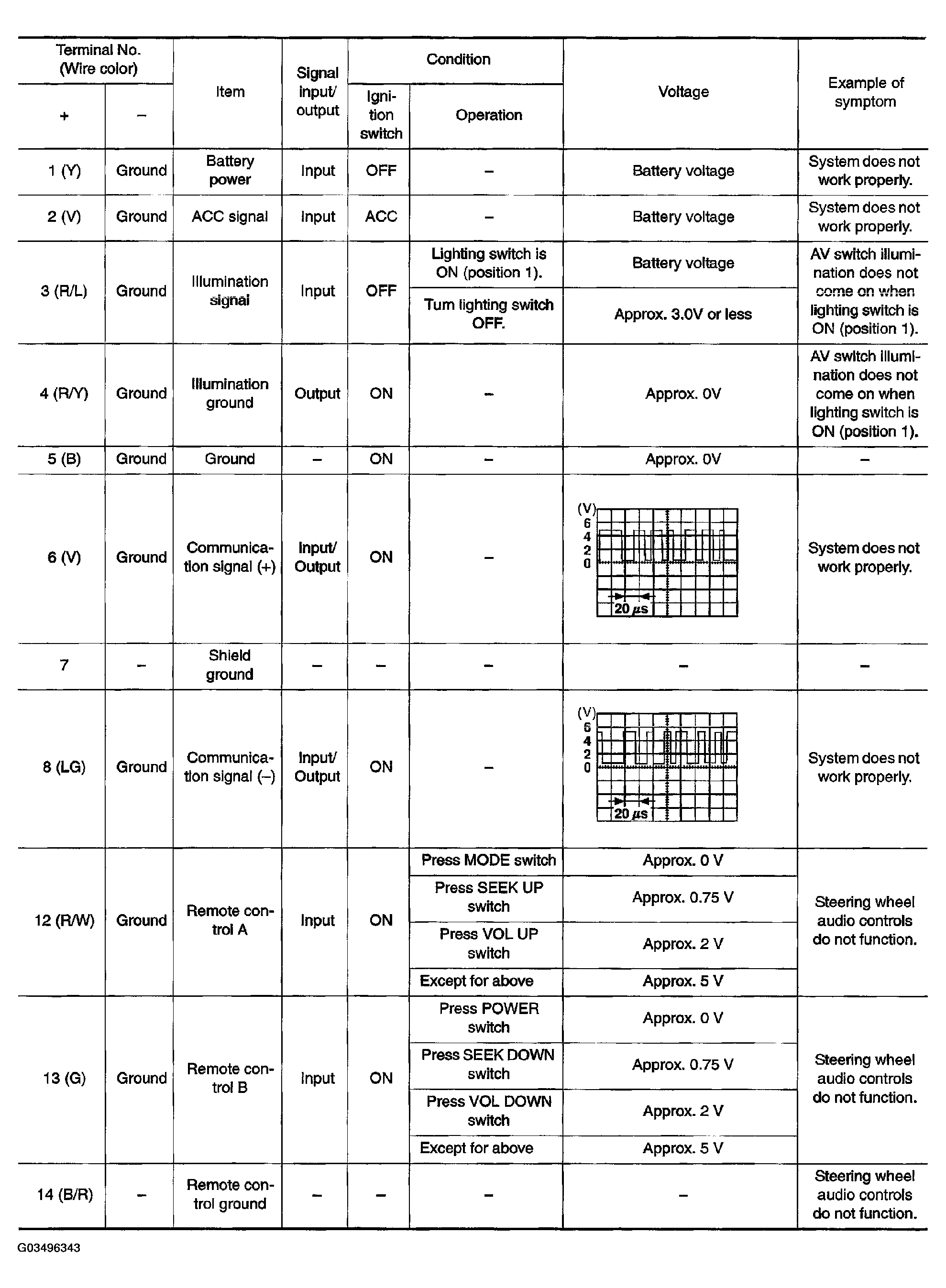

Fig 1: Terminals & Reference Value For AV Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
