Terminals and Reference Value for Display unit

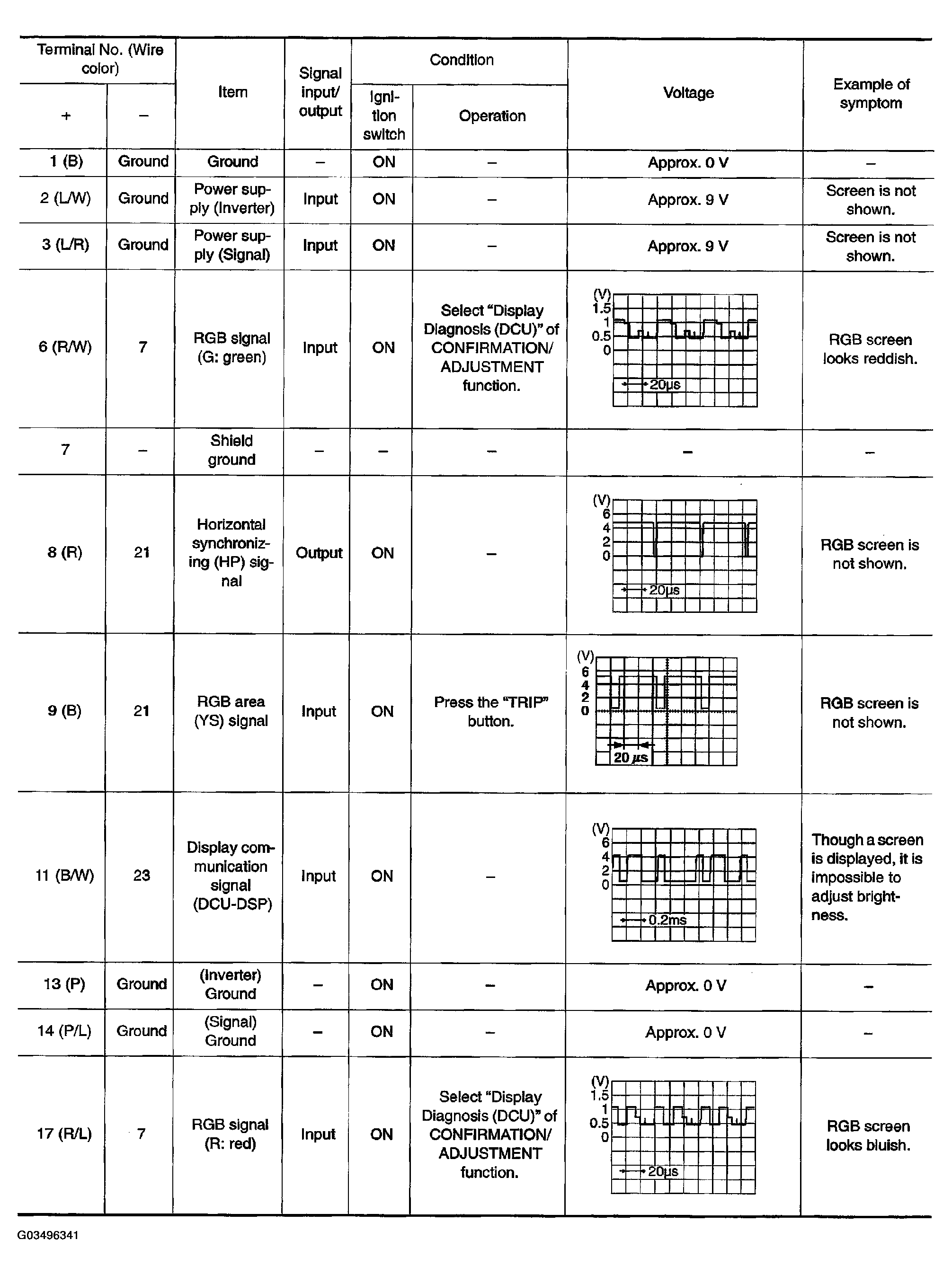

Fig 1: Terminals & Reference Value For Display Unit (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

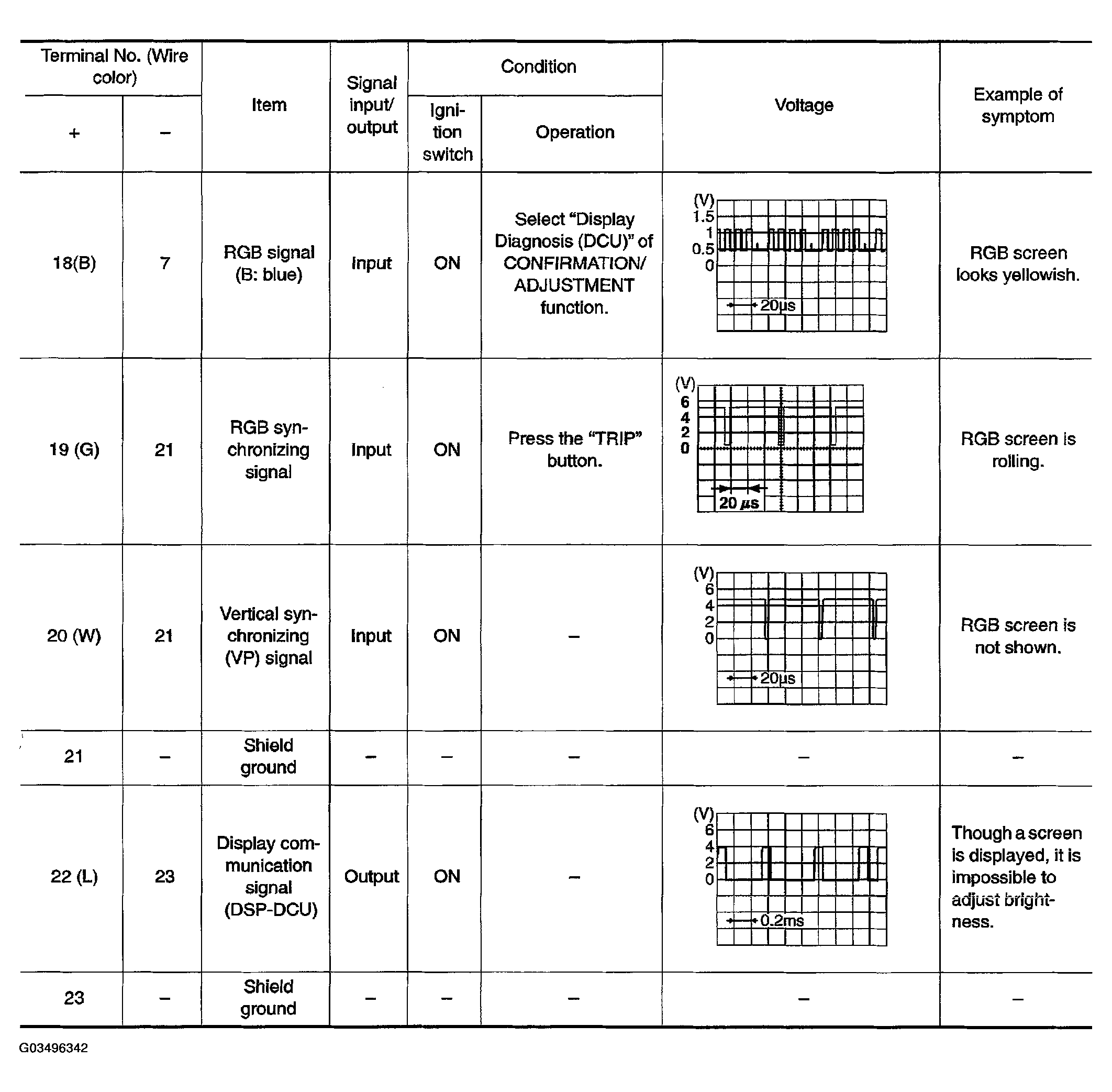

Fig 2: Terminals & Reference Value For Display Unit (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
