4. Check Intermittent Incident

Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

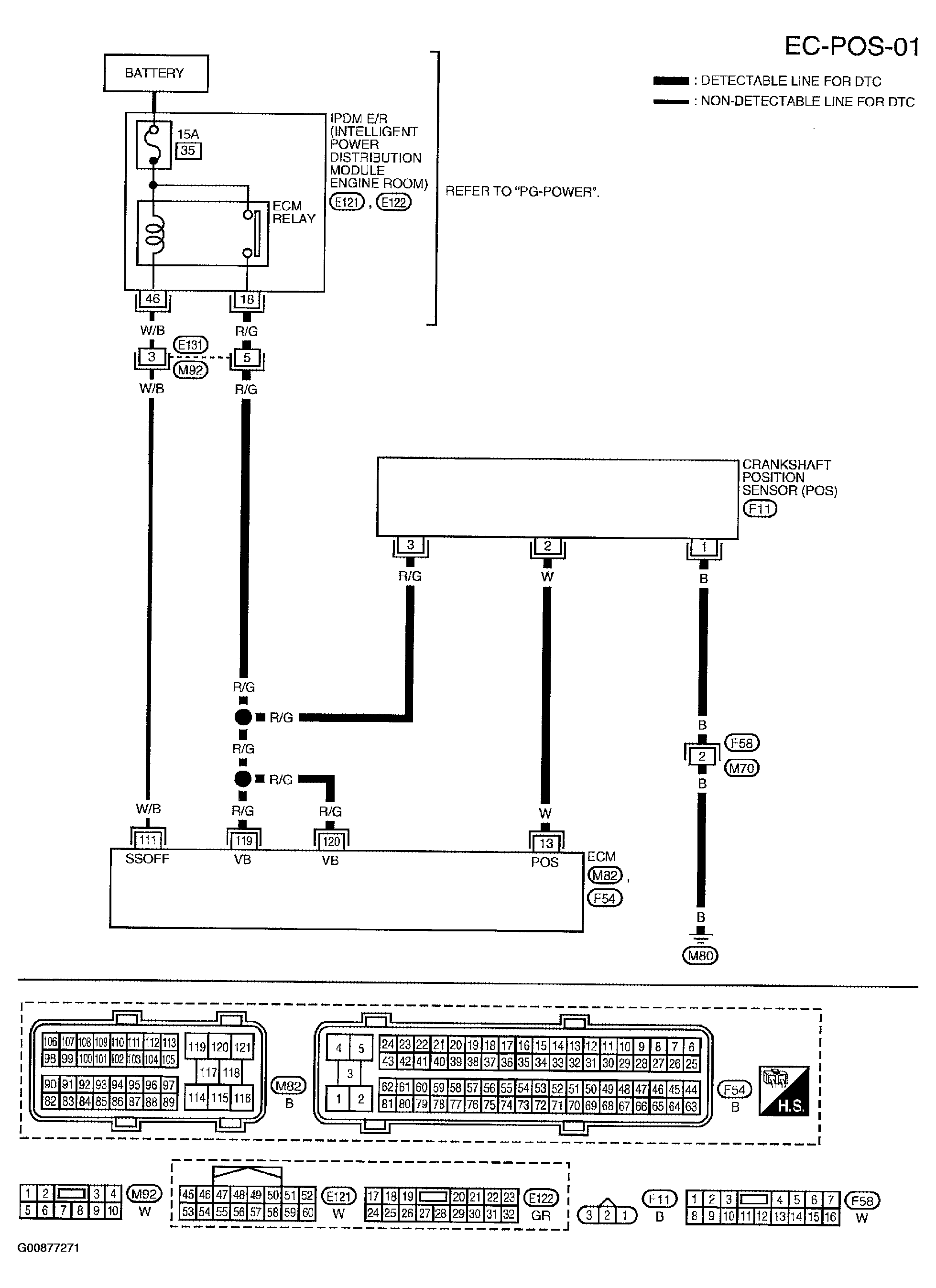

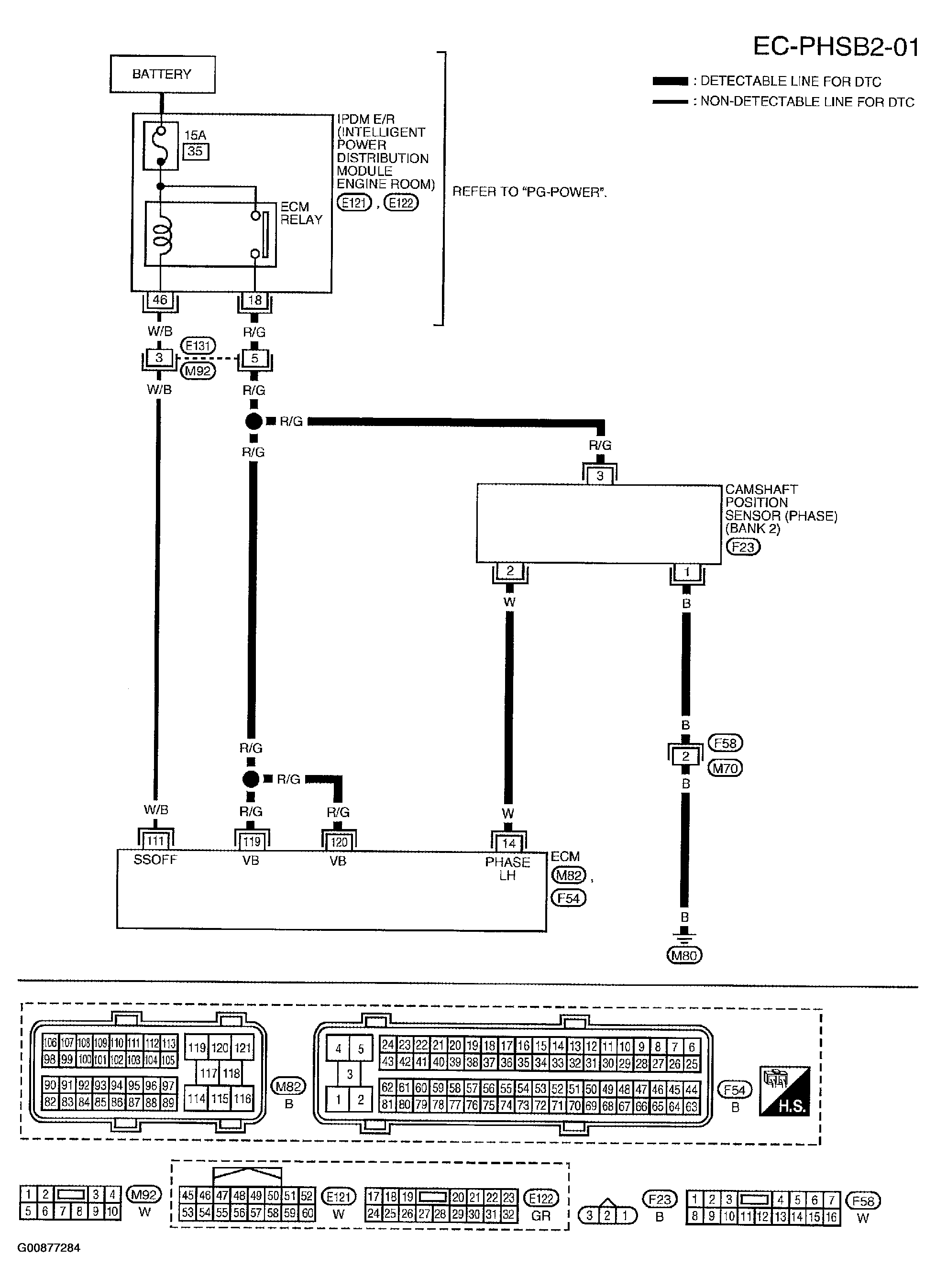

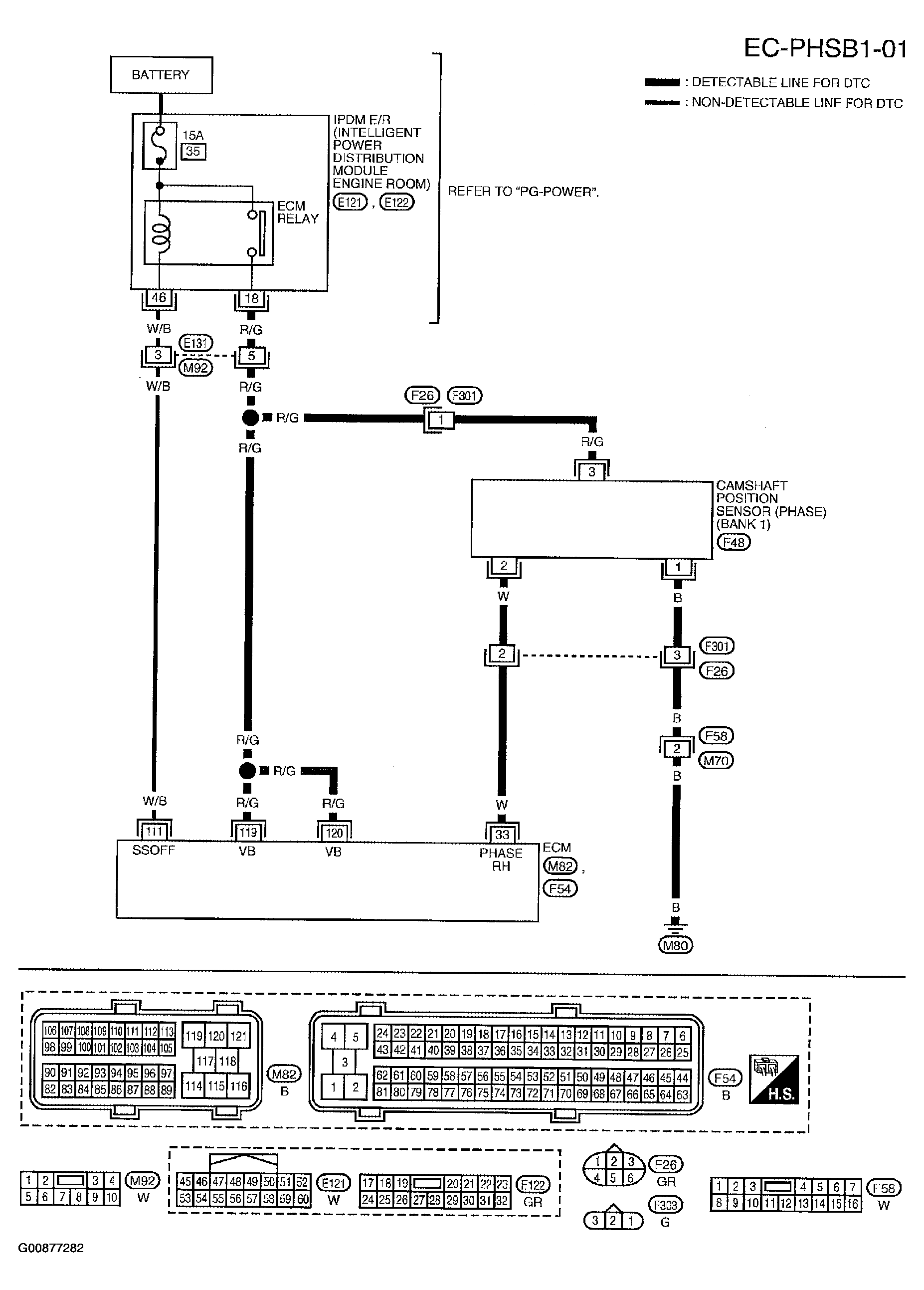

For wiring diagram, refer to SYSTEM WIRING DIAGRAMS or Figure for CKP sensor (POS) and Figure and Figure for CMP sensor (PHASE).

1. INSPECTION END
