Engine Control System - Introduction
›
Trouble Diagnosis - Specification Value
›
Diagnostic Procedure
Diagnostic Procedure

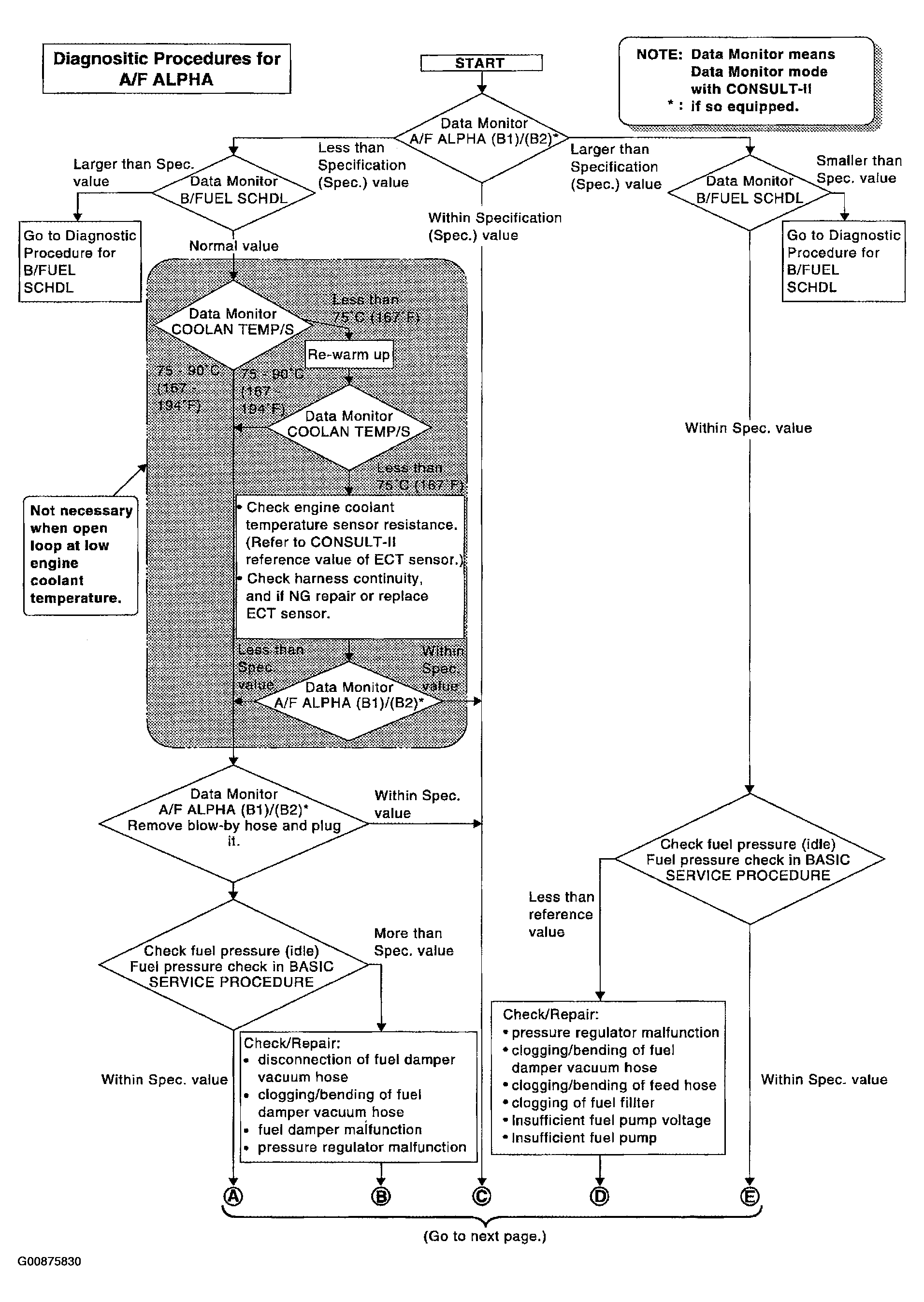

Fig 1: Diagnostic Procedure (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

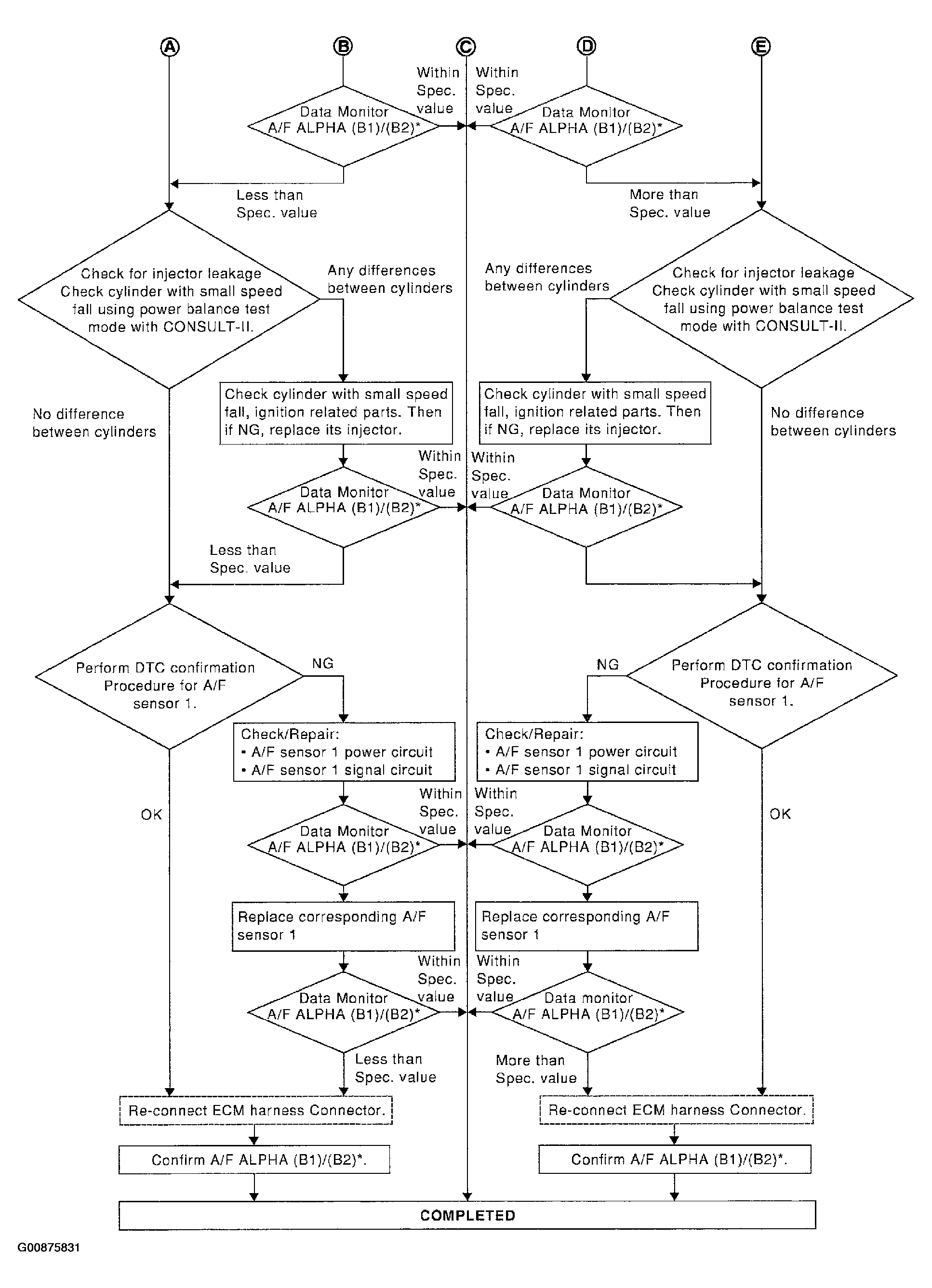

Fig 2: Diagnostic Procedure (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

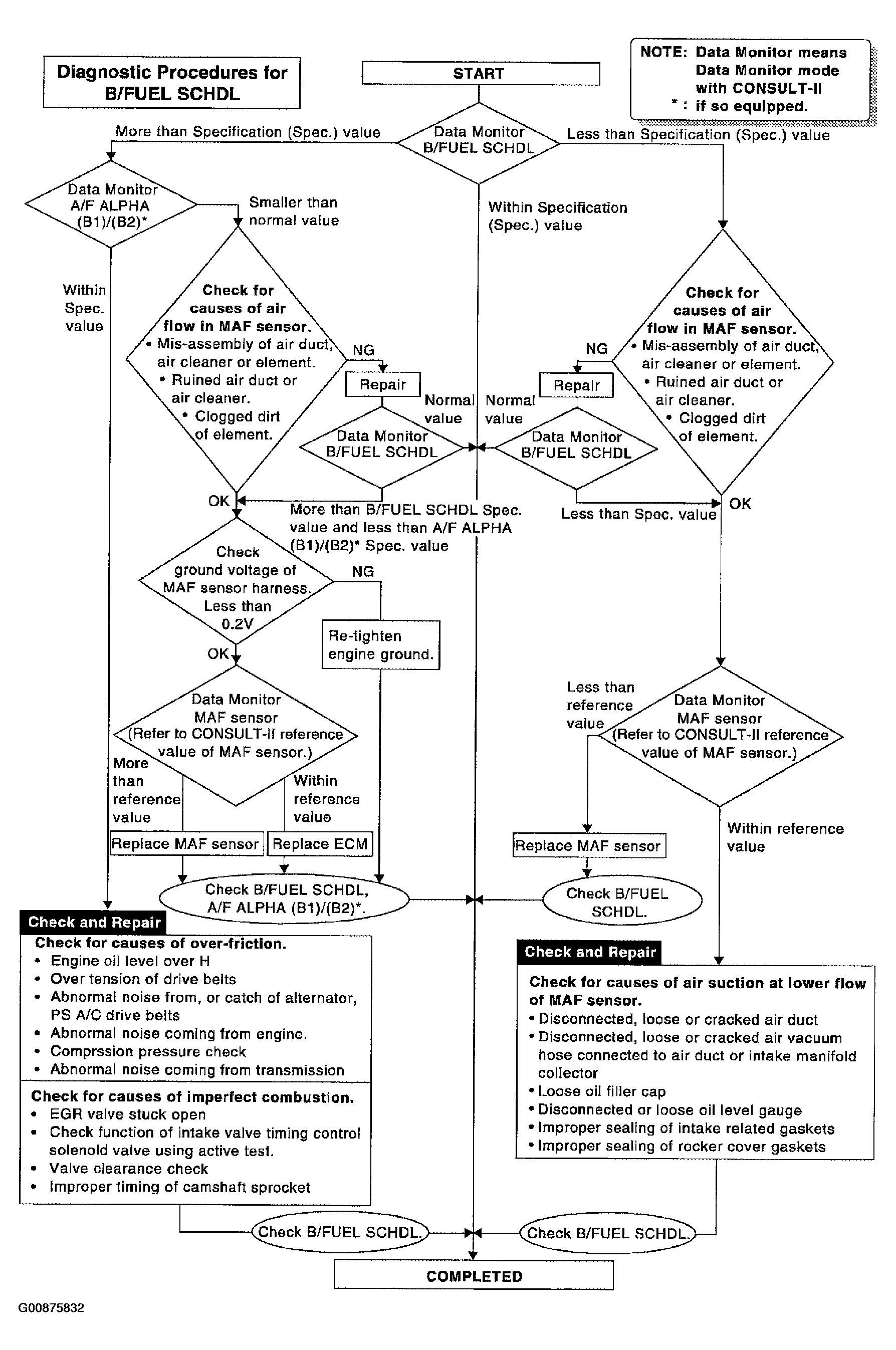

Fig 3: Diagnostic Procedure (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
