On Board Diagnosis Logic: Notes

These self-diagnoses have the one trip detection logic.

NOTE: If DTC P2122 or P2123 is displayed with DTC P1229, first perform the trouble diagnosis for DTC P1229.

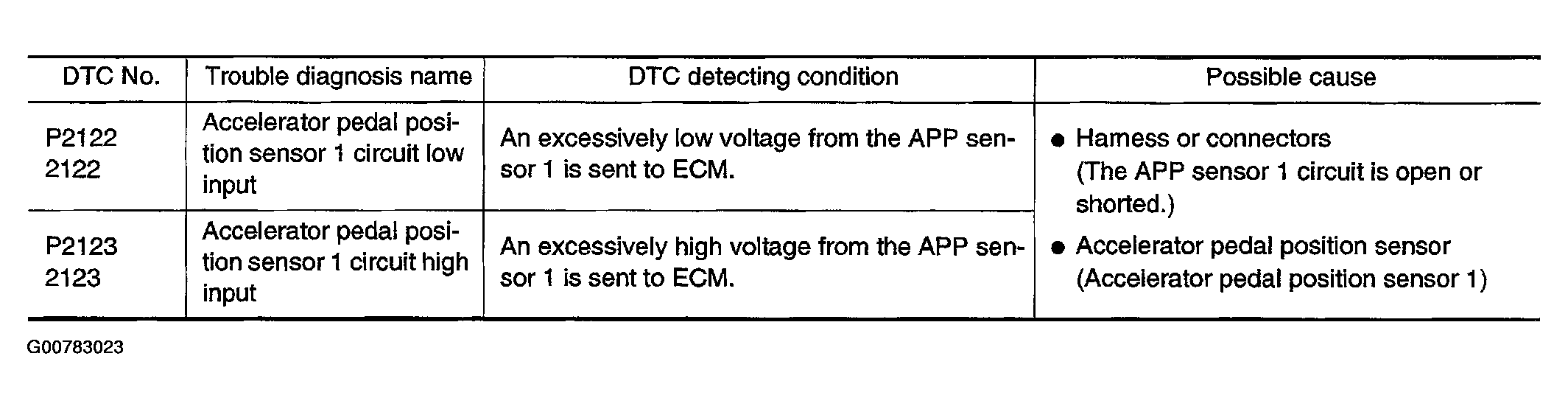

Fig 1: DTC Condition Detection Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
