Data Monitor

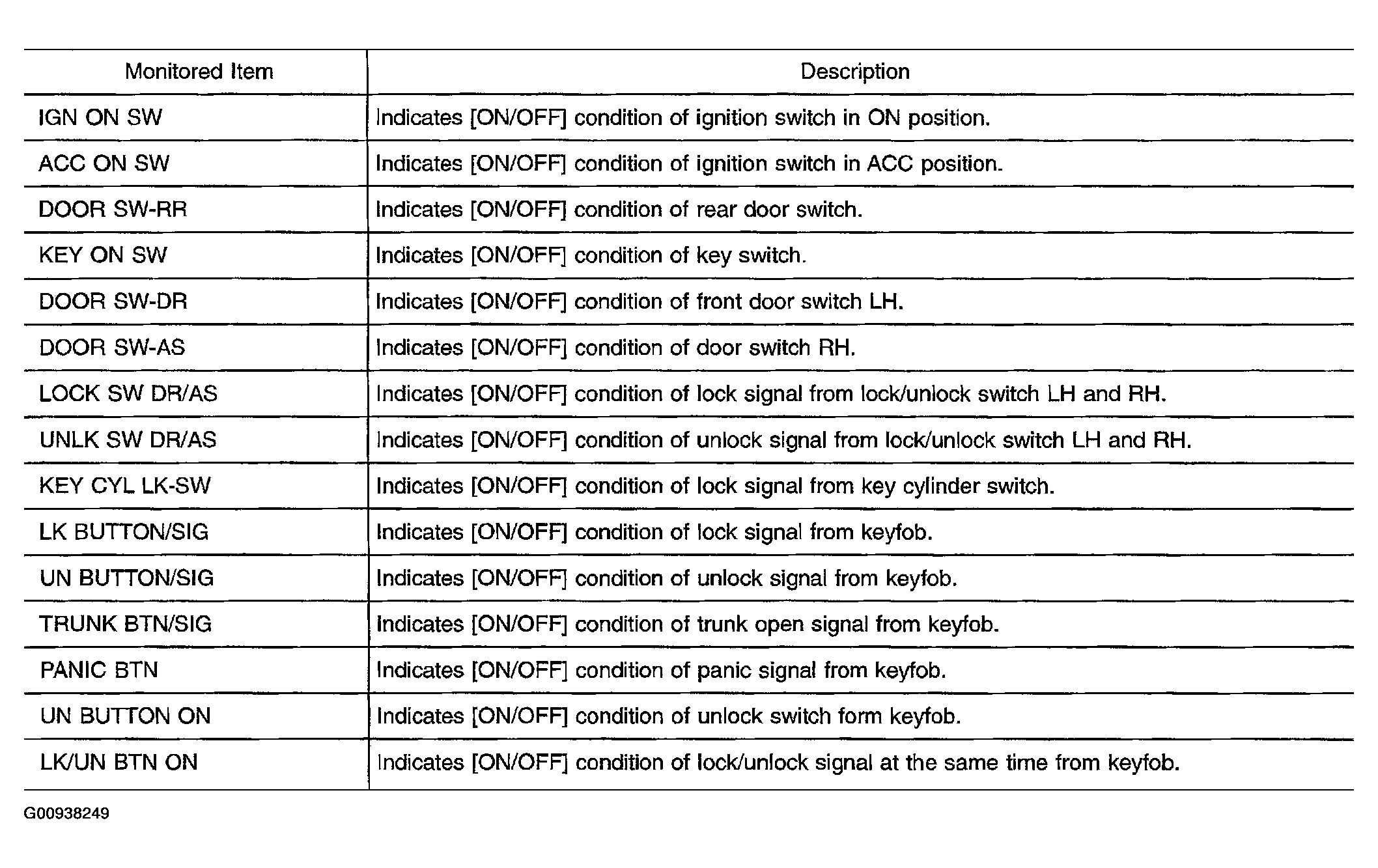

Fig 1: Data Monitor Description Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Even though TRUNK BTN/SIG is actually displayed on the CONSULT-II screen, it is not equipped, therefore, they cannot be activated.
