Brake Control System - Abs: Description: Schematic

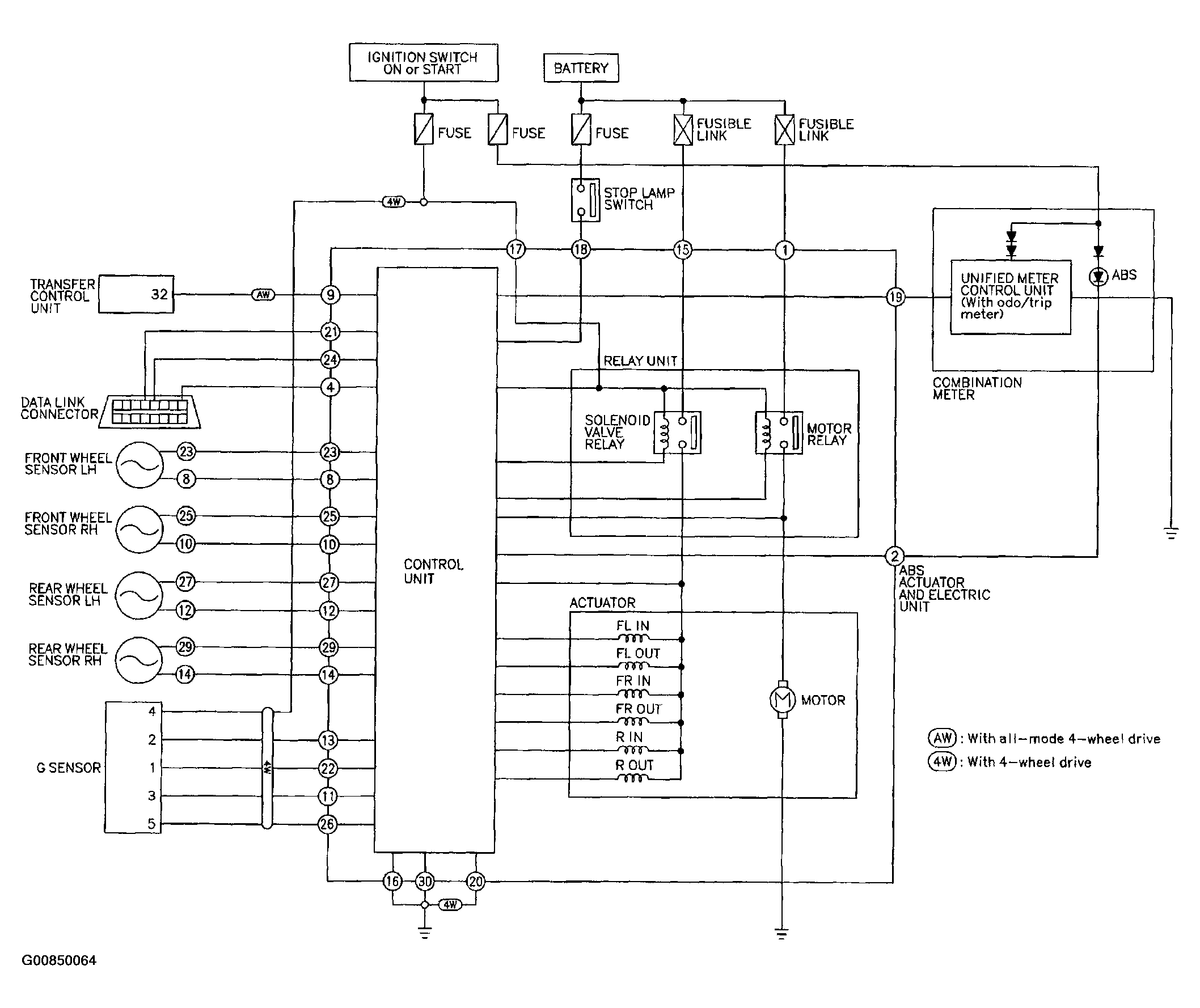

Fig 1: Identifying Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
