DTC P0112, P0113: IAT Sensor: Wiring Diagram

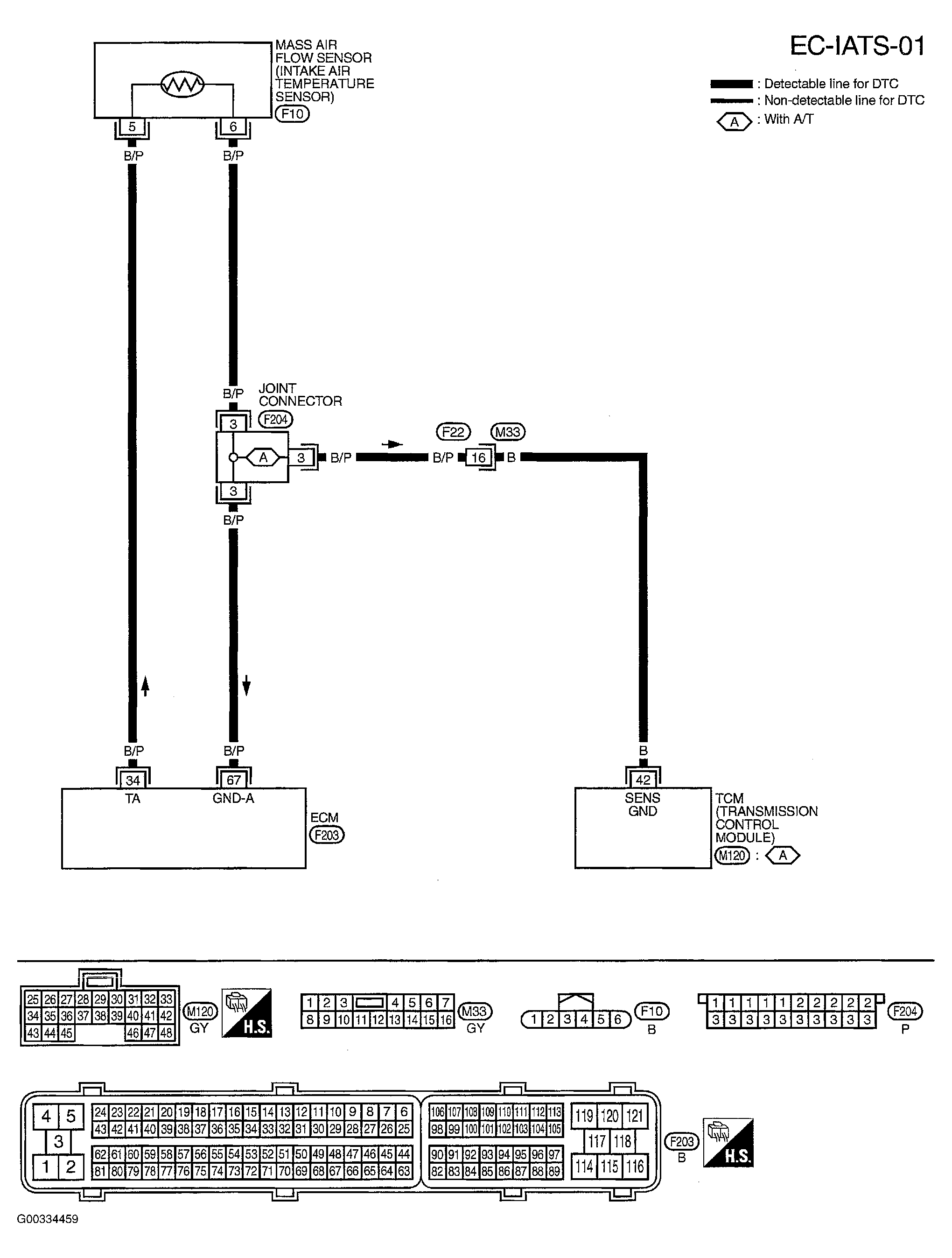

Fig 1: Wiring Diagram
G00334459Courtesy of NISSAN MOTOR CO., U.S.A.
