DTC P0117, P0118: Sec Sensor: Wiring Diagram

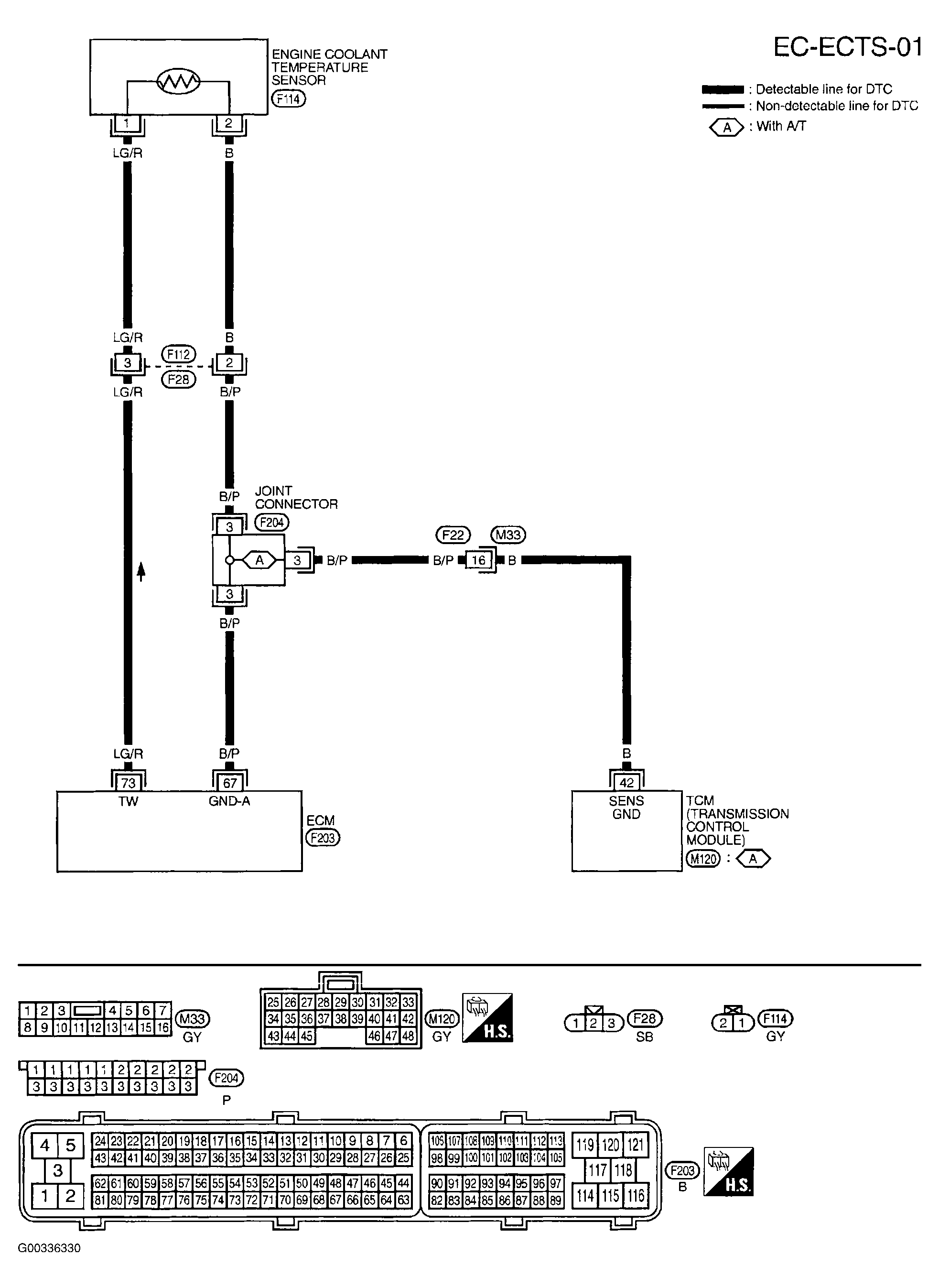

Fig 1: Wiring Diagram - Engine Coolant Temperature Sensor
G00336330Courtesy of NISSAN MOTOR CO., U.S.A.
