On Board Diagnosis Procedure

This self-diagnosis has the one trip detection logic.

The MIL will not light up for this self-diagnosis.

NOTE:

If DTC P1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to DTC P0605 ECM .
If DTC P1572 is displayed with DTC P1805, first perform the trouble diagnosis for DTC P1805. Refer to DTC P1805 BRAKE SWITCH .

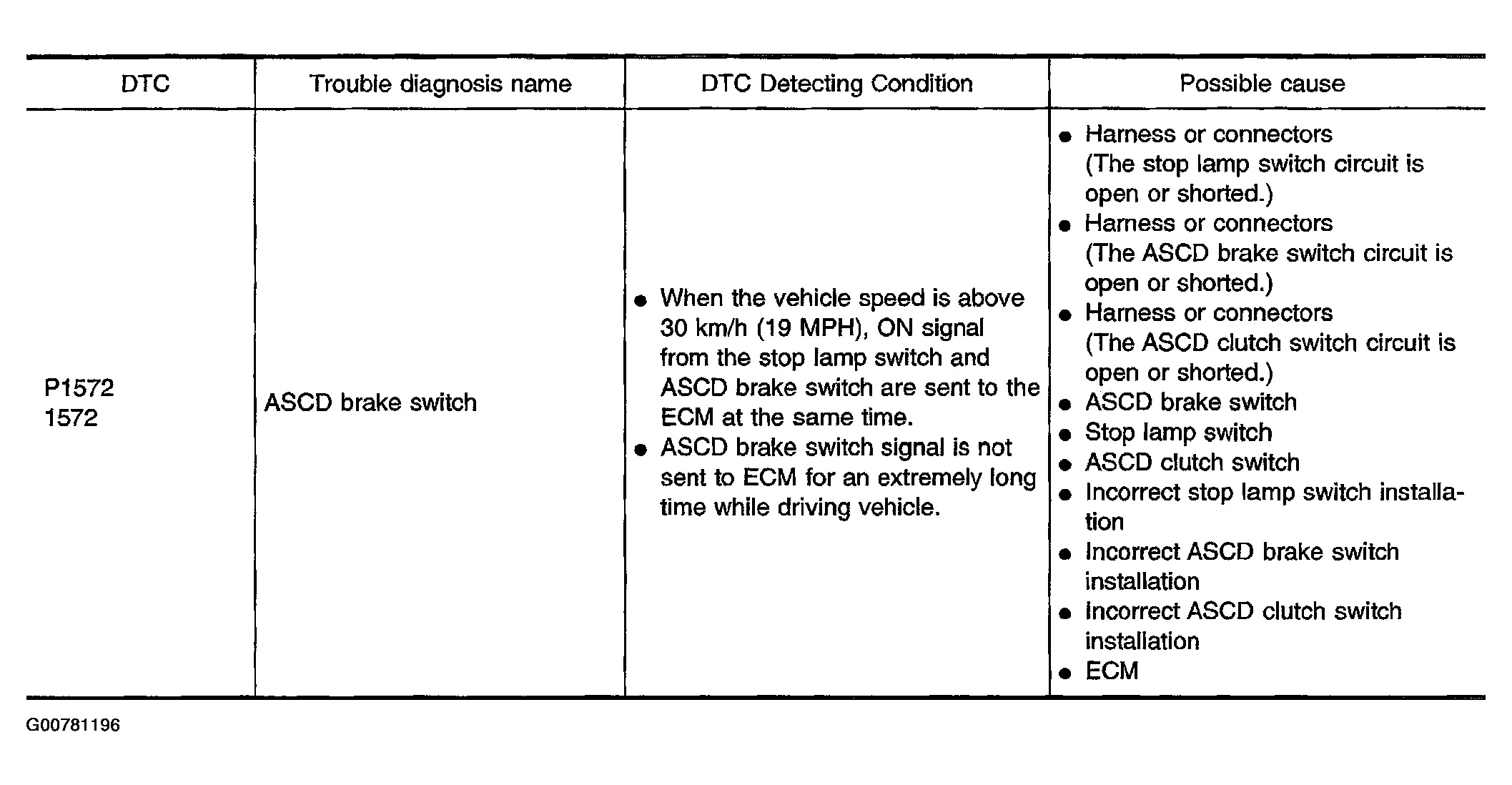

Fig 1: DTC P1572 Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
