DTC P1706: PNP Switch
›
Wiring Diagram
DTC P1706: PNP Switch: Wiring Diagram

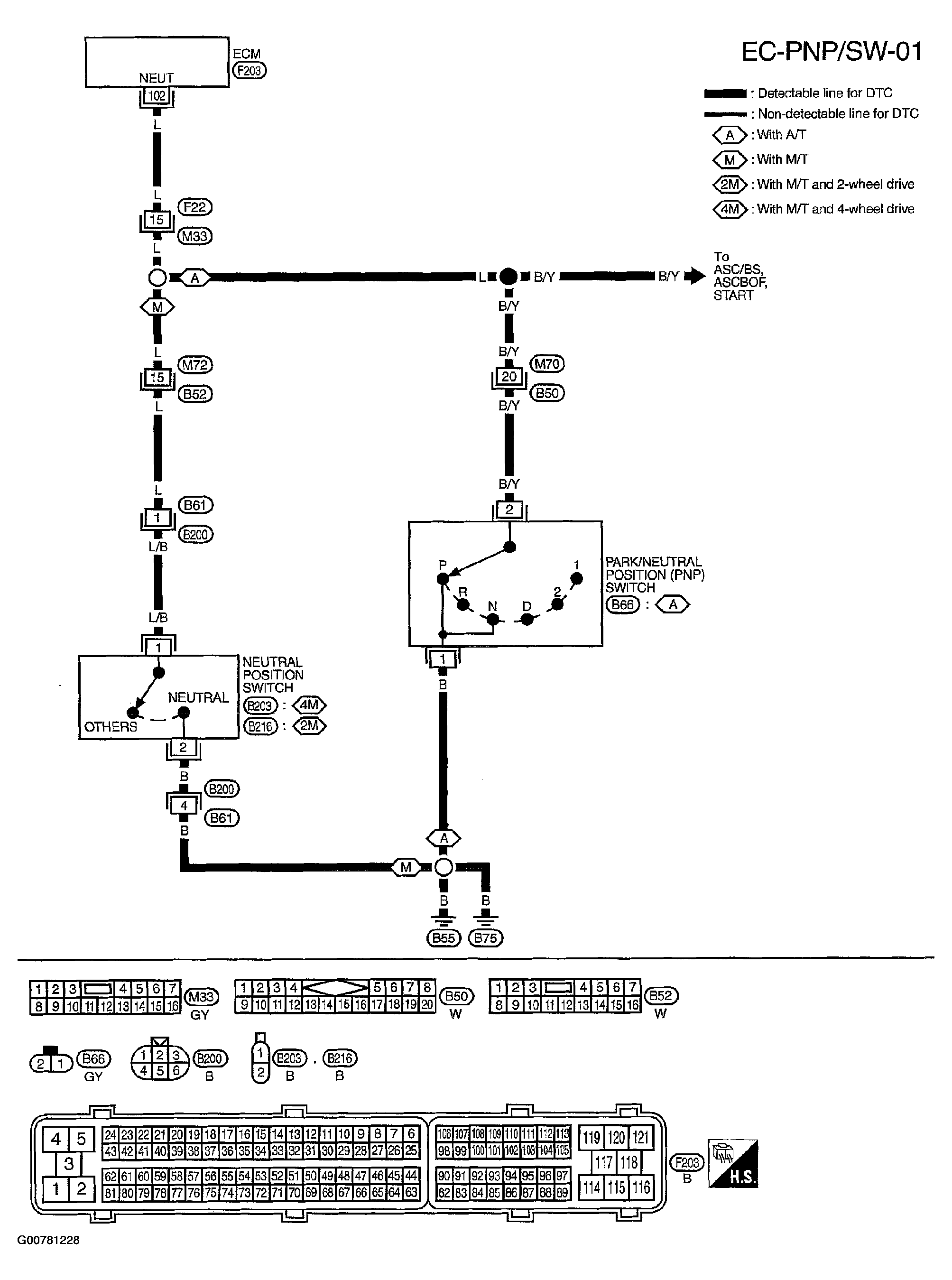

Fig 1: Wiring Diagram - PNP Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
