Nissan-Datsun
›
2004
›
Pathfinder LE, RWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System
›
Mil & Data Link Connectors
›
Wiring Diagram
Mil & Data Link Connectors: Wiring Diagram

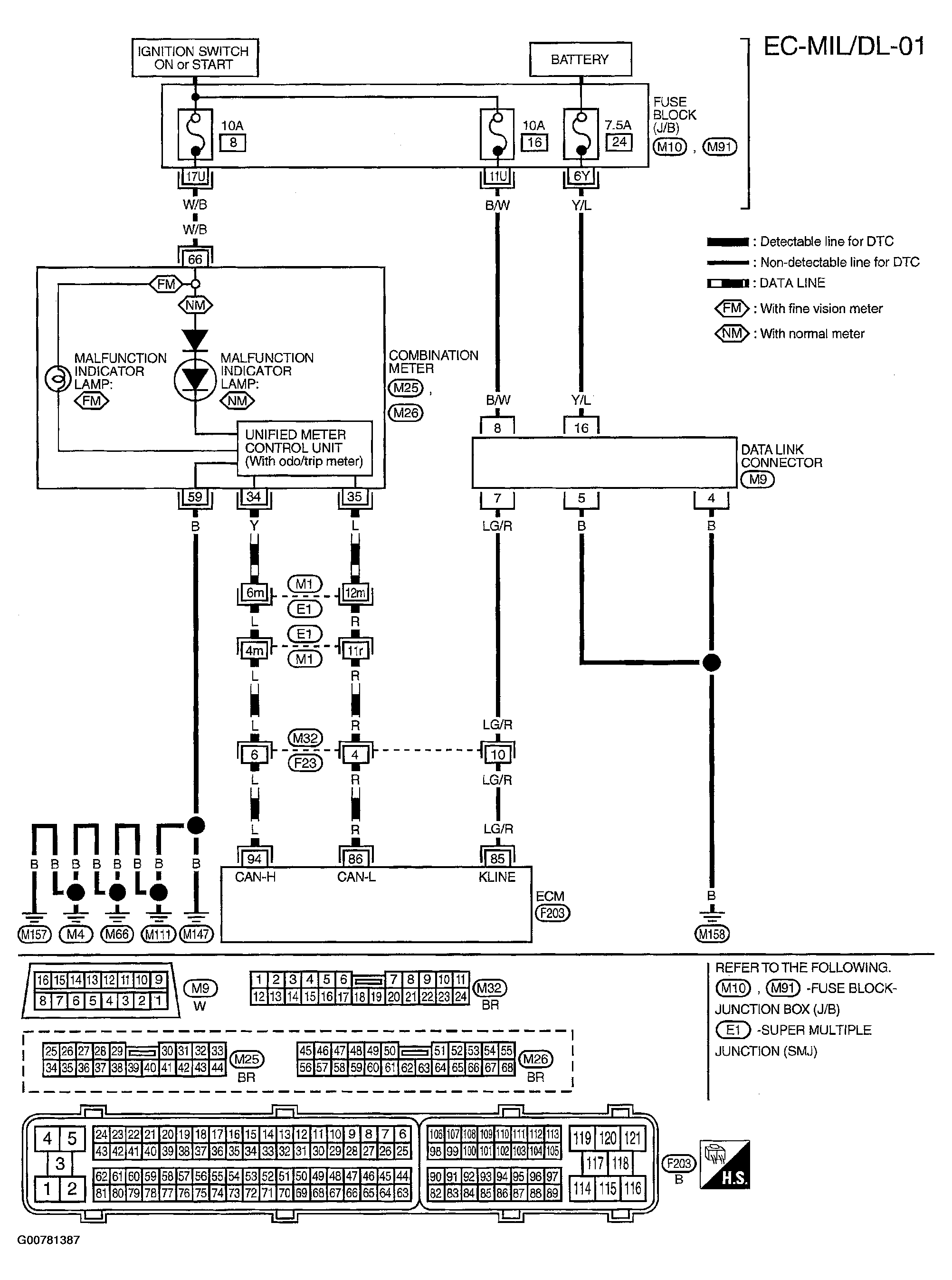

Fig 1: Wiring Diagram - MIL And Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
