CONSULT-II Reference Value in Data Monitor Mode

CONSULT-II Reference Value in Data Monitor Mode Specification data are reference values.

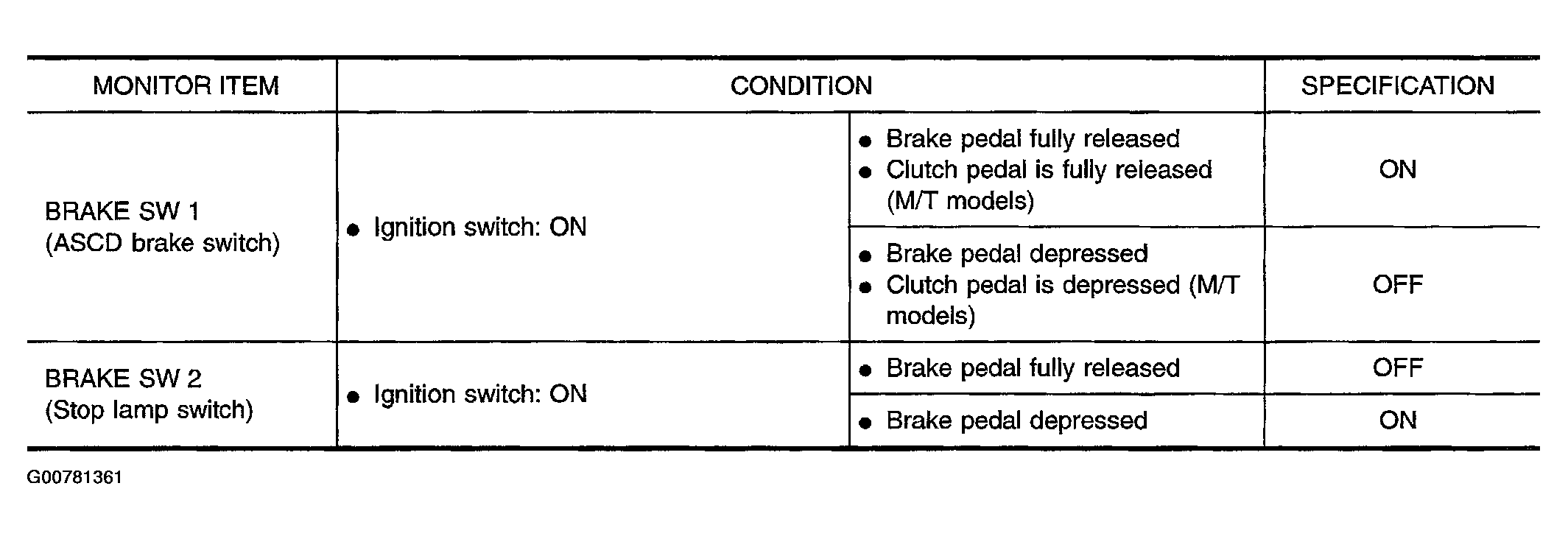

Fig 1: CONSULT-II Data Monitor Mode Reference Value Chart
G00781361Courtesy of NISSAN MOTOR CO., U.S.A.
