ASCD Brake Switch: Wiring Diagram

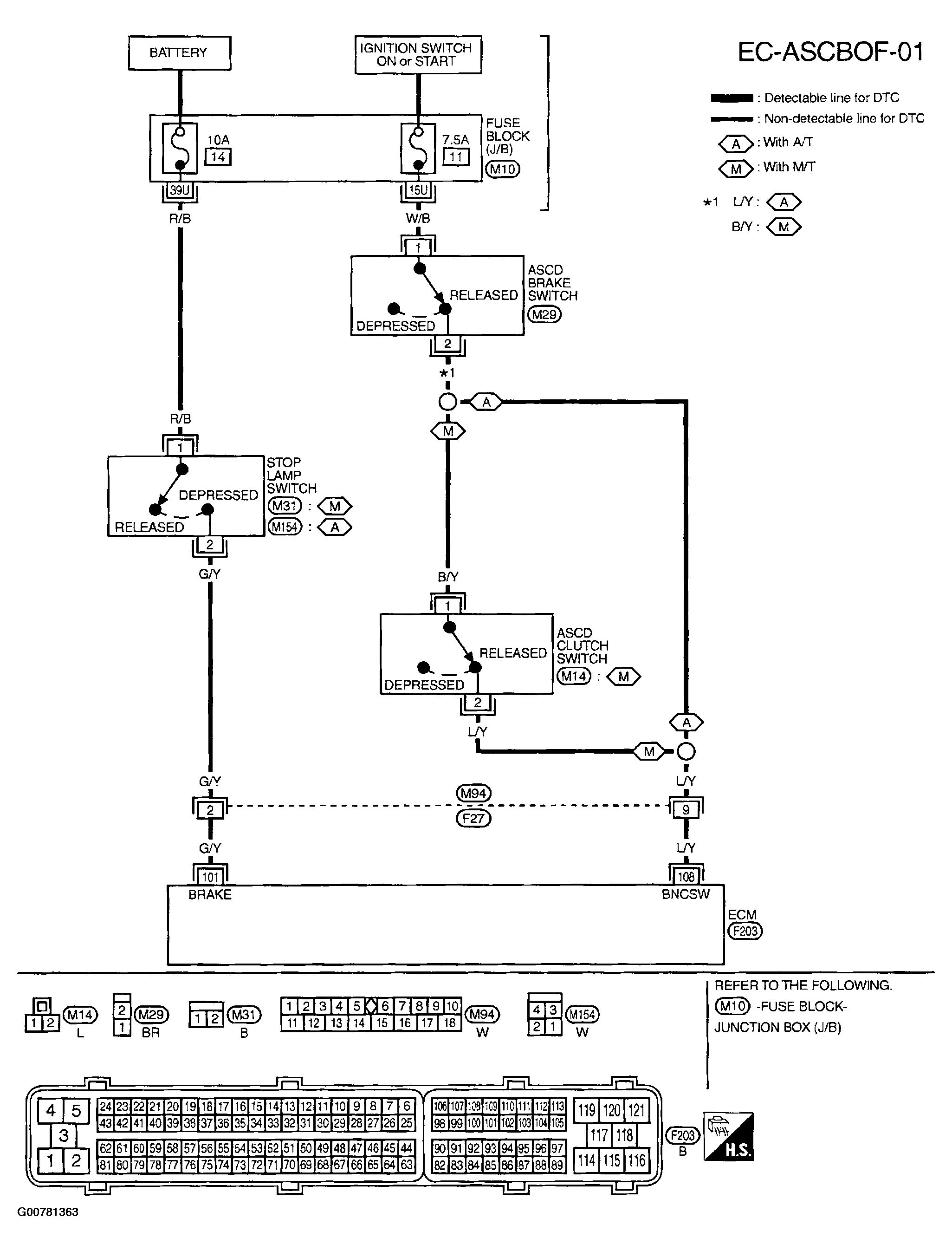

Fig 1: Wiring Diagram - ASCD Brake Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
