ASCD Indicator Lamp: Wiring Diagram

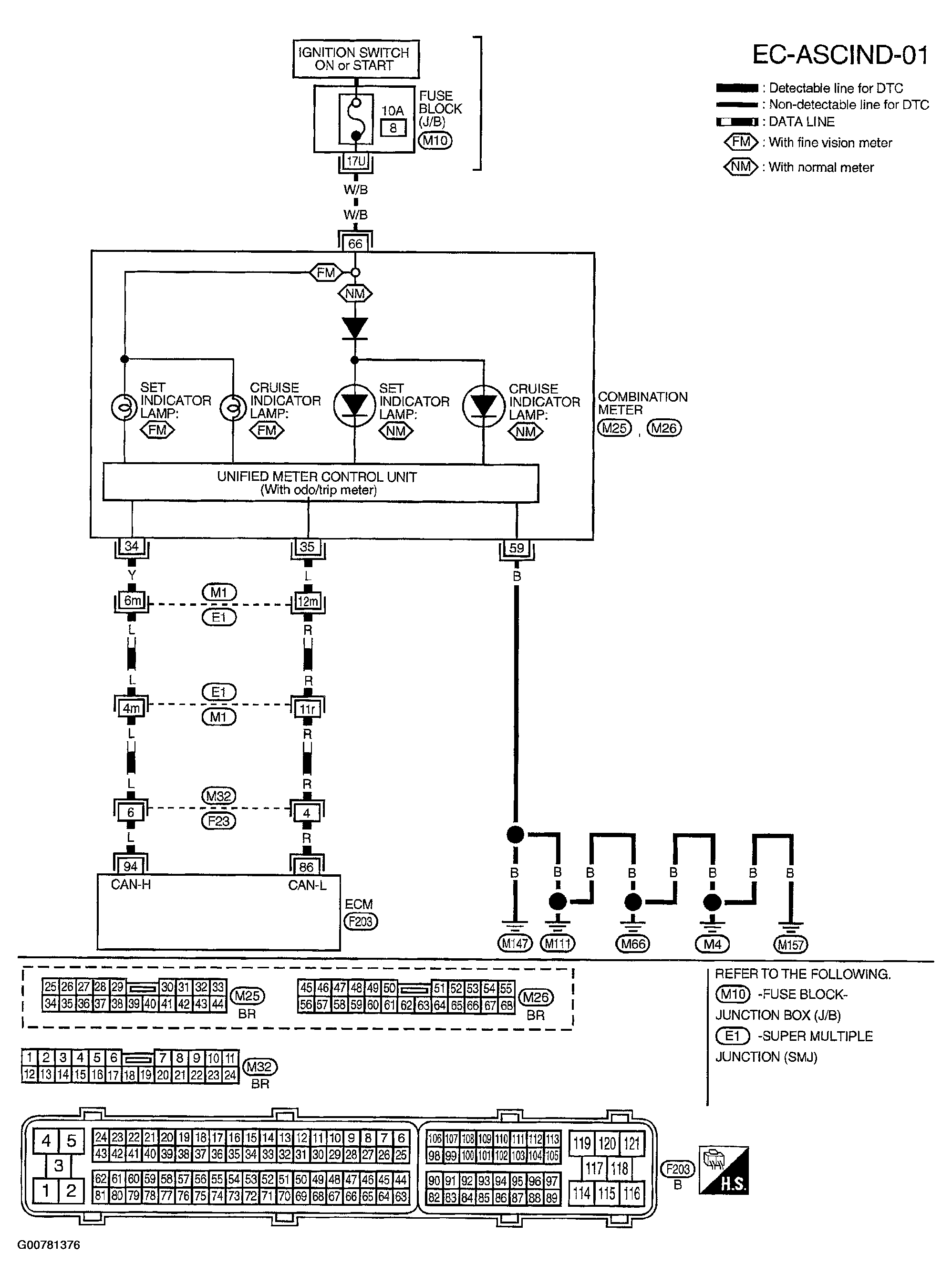

Fig 1: Wiring Diagram - ASCD Indicator Lamp
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
