Nissan-Datsun
›
2004
›
Pathfinder SE, RWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System
›
DTC P0102, P0103: MAF Sensor
›
Wiring Diagram
DTC P0102, P0103: MAF Sensor: Wiring Diagram

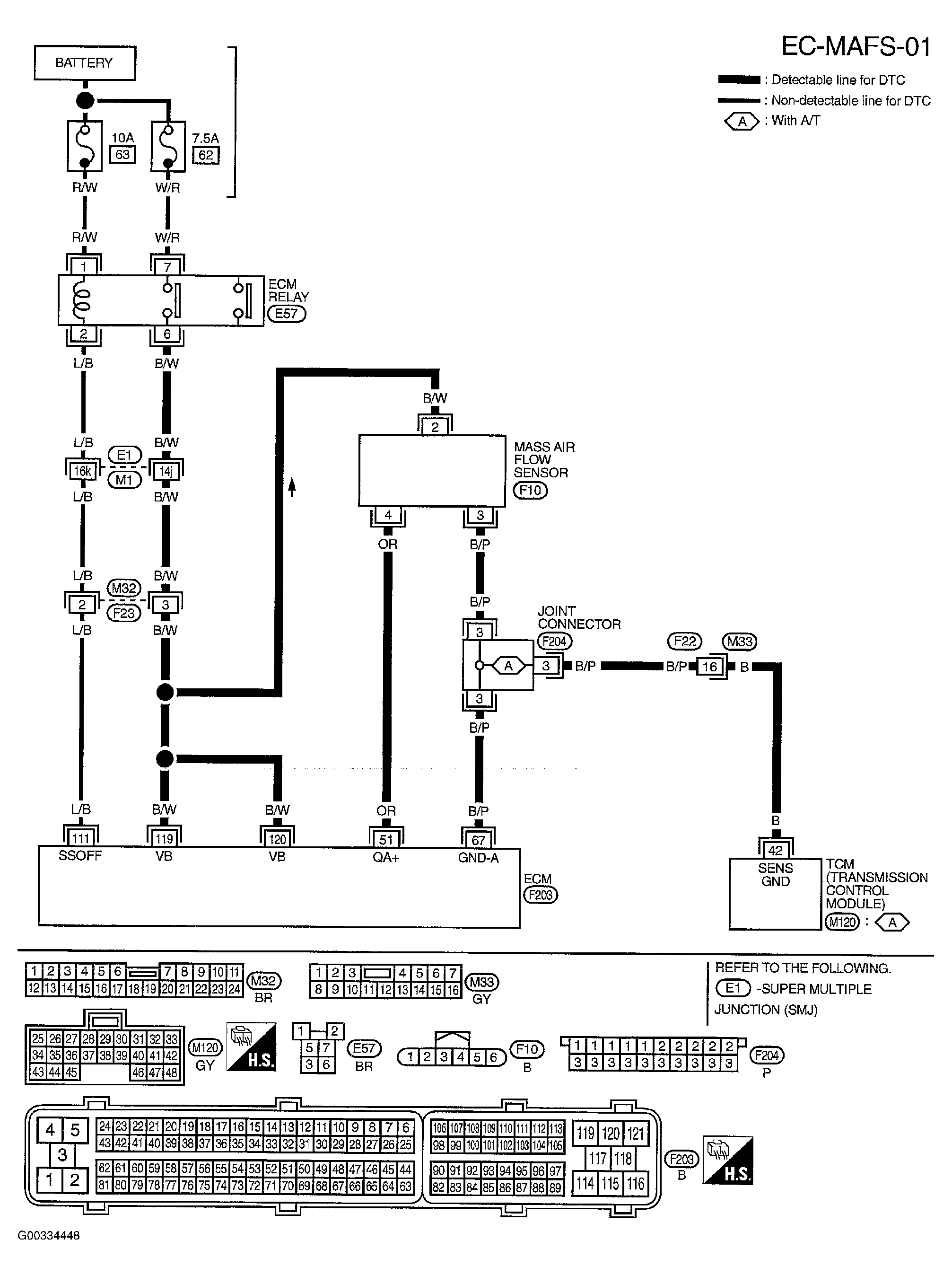

Fig 1: Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
