DTC P0182, P0183: FTT Sensor: Wiring Diagram

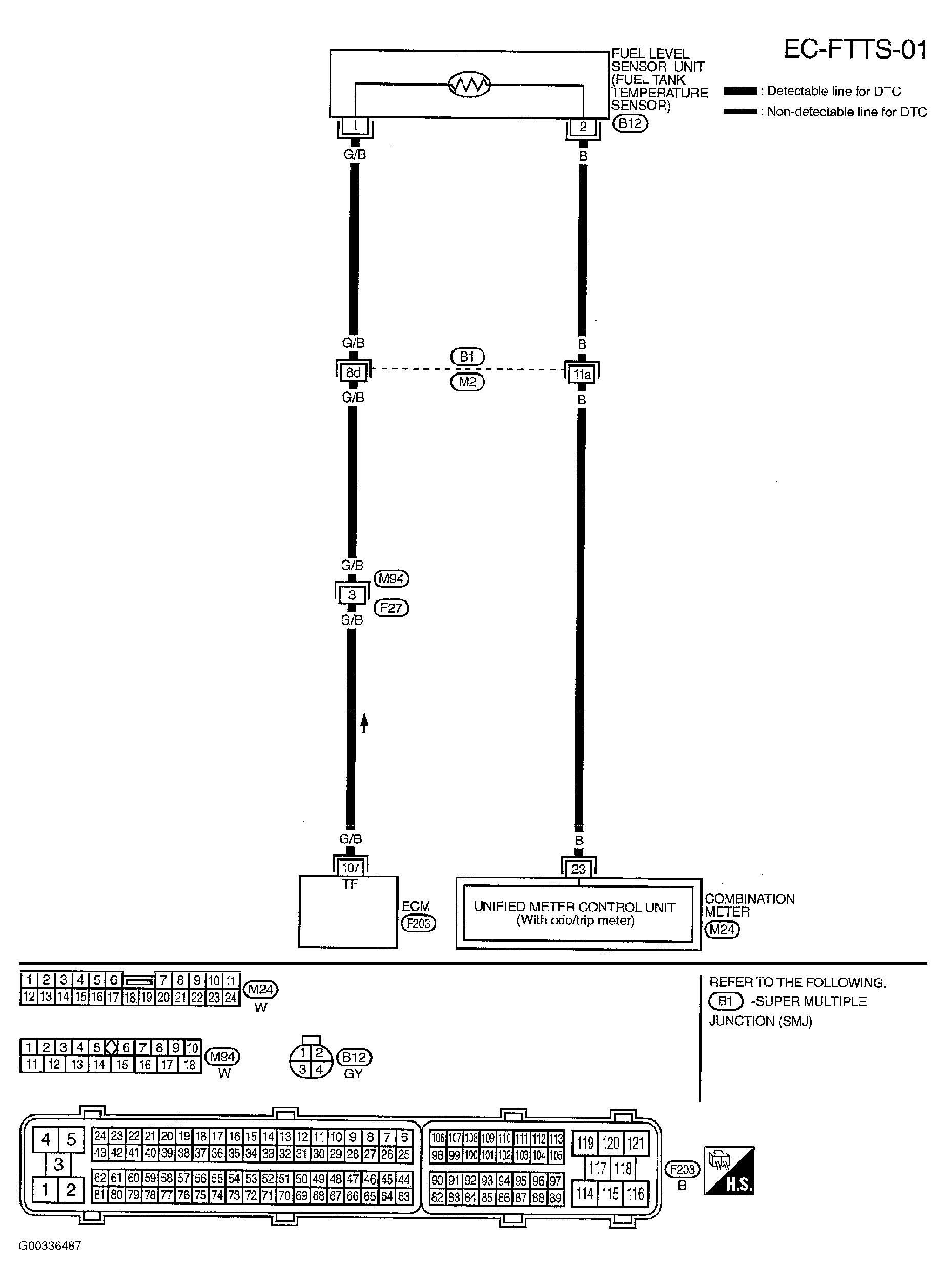

Fig 1: Wiring Diagram - Fuel Tank Temperature Sensor
G00336487Courtesy of NISSAN MOTOR CO., U.S.A.
