DTC P0453: EVAP System Pressure Sensor: Wiring Diagram

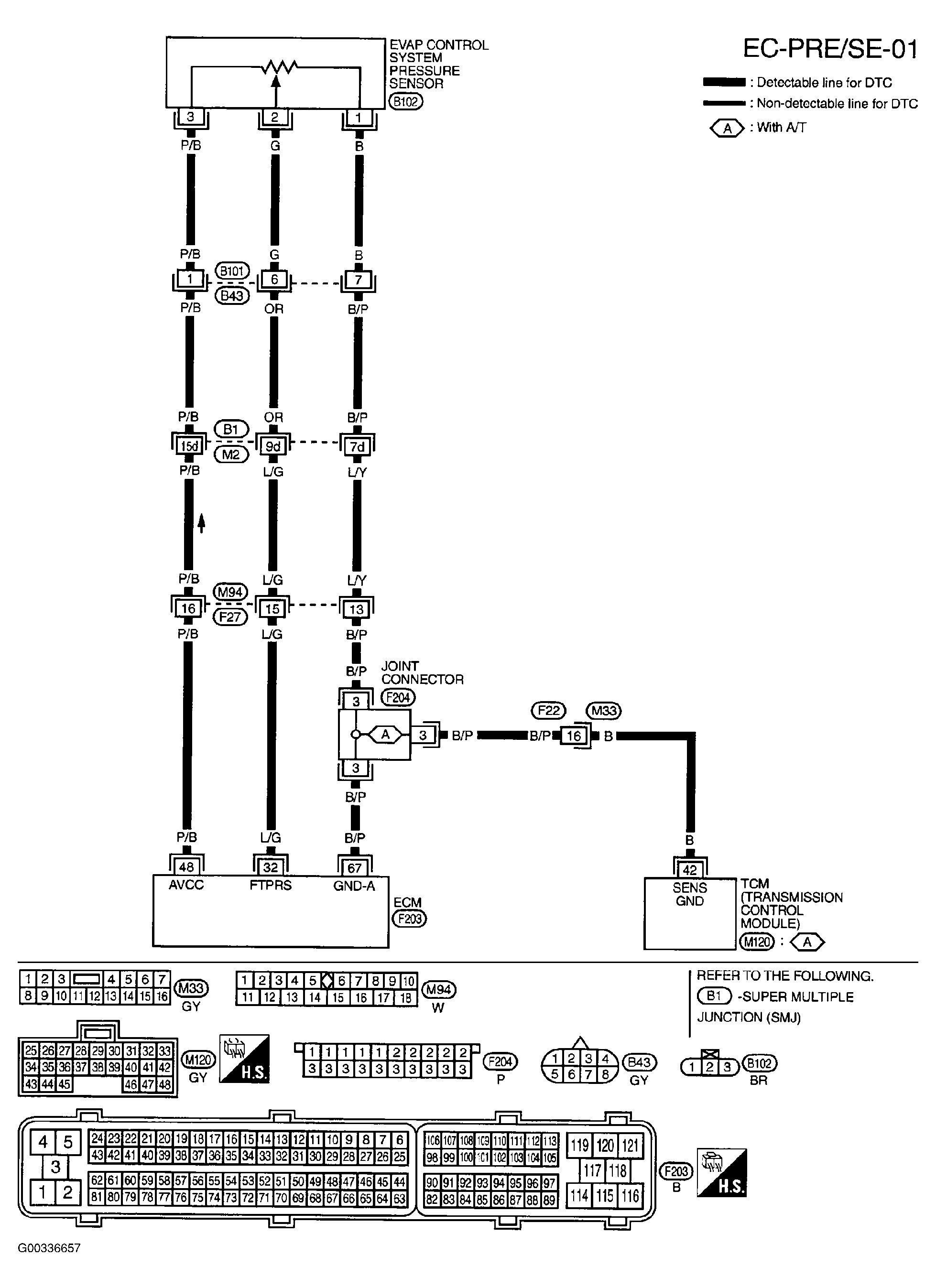

Fig 1: Wiring Diagram (EC-PRE/SE-01)
G00336657Courtesy of NISSAN MOTOR CO., U.S.A.
