DTC P1122: Electric Throttle Control Function: Wiring Diagram

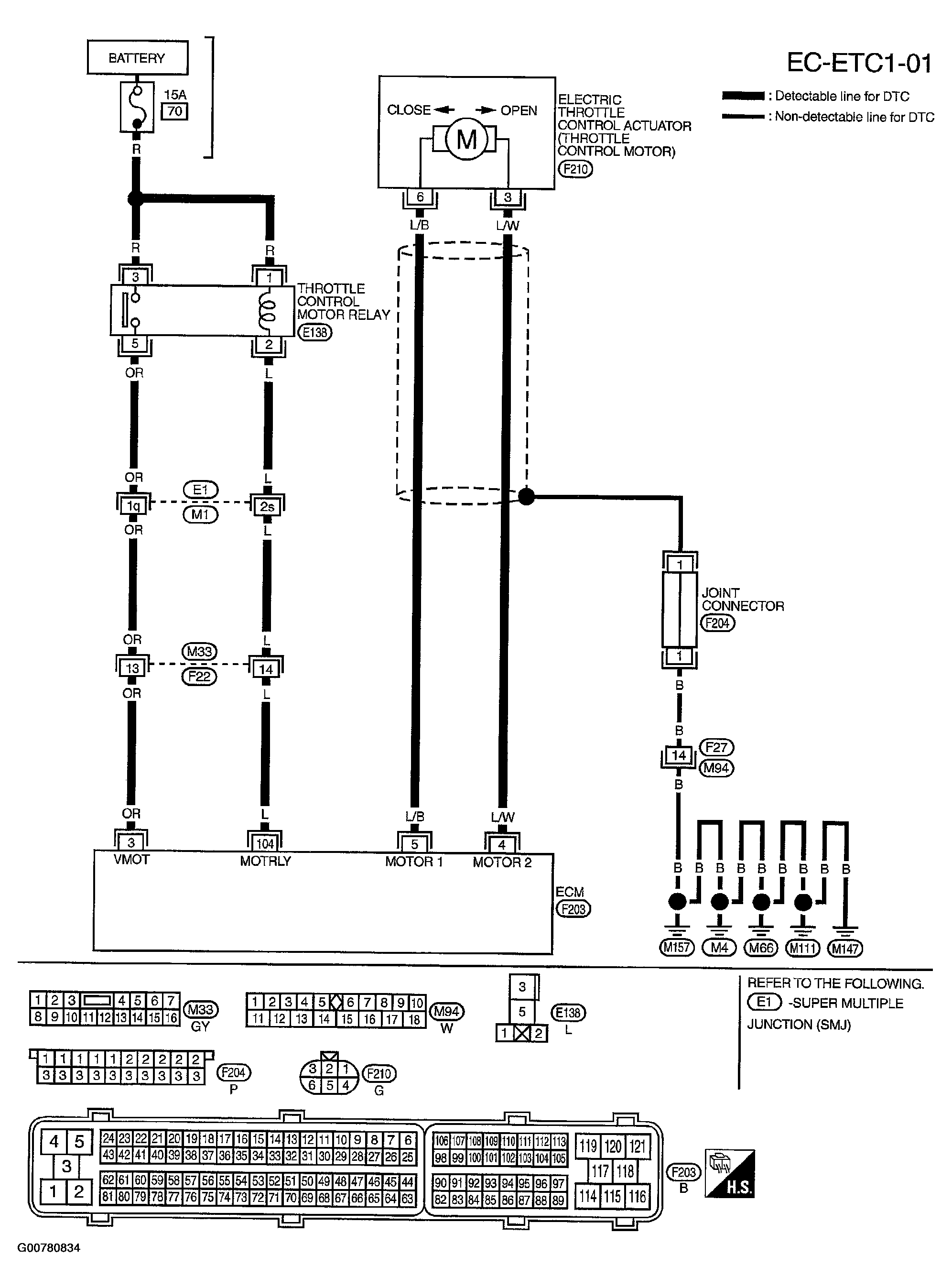

Fig 1: Wiring Diagram
G00780834Courtesy of NISSAN MOTOR CO., U.S.A.
