DTC P1128: Throttle Control Motor: Wiring Diagram

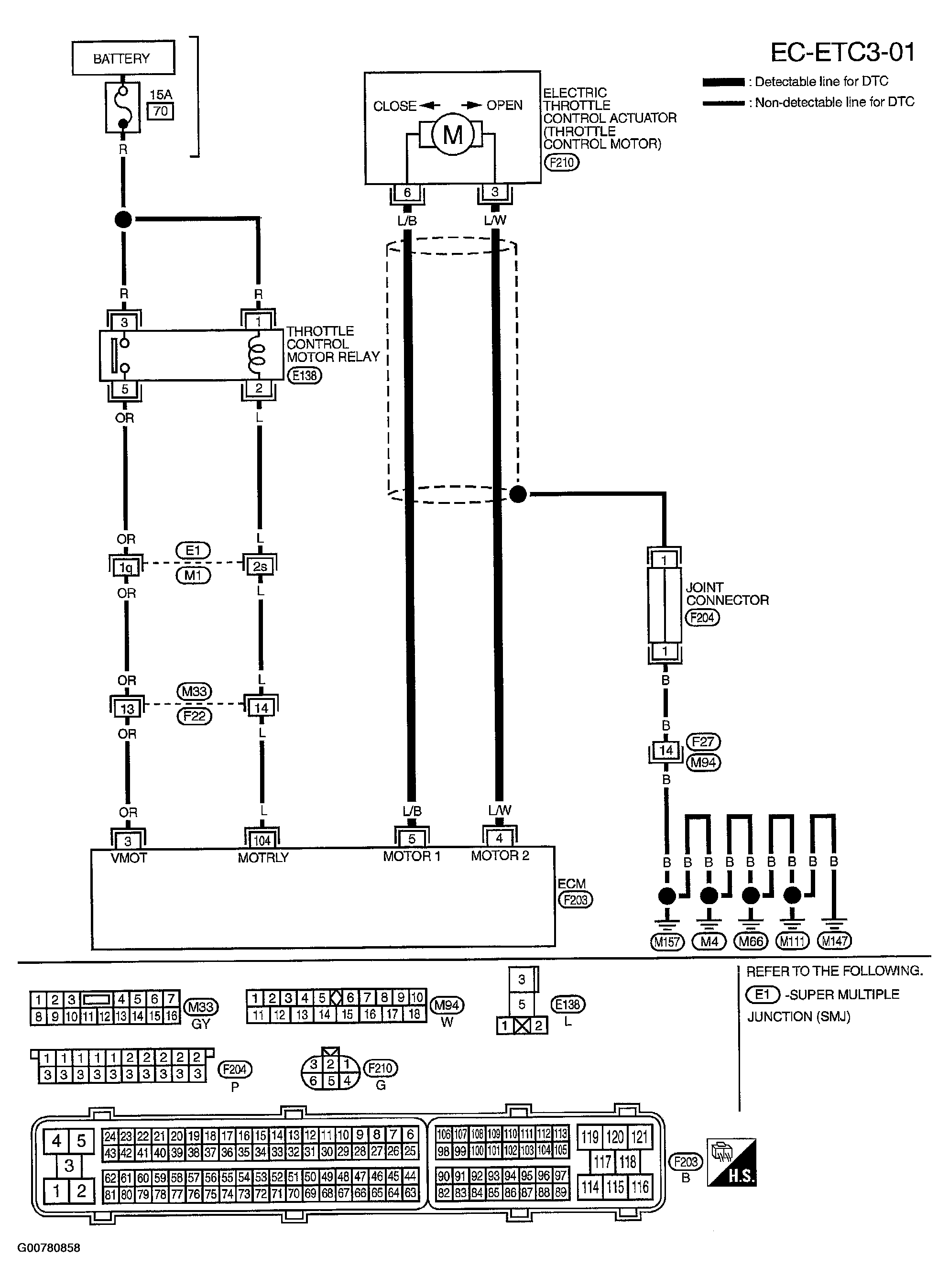

Fig 1: Wiring Diagram
G00780858Courtesy of NISSAN MOTOR CO., U.S.A.
