DTC P1229: Sensor Power Supply: Wiring Diagram

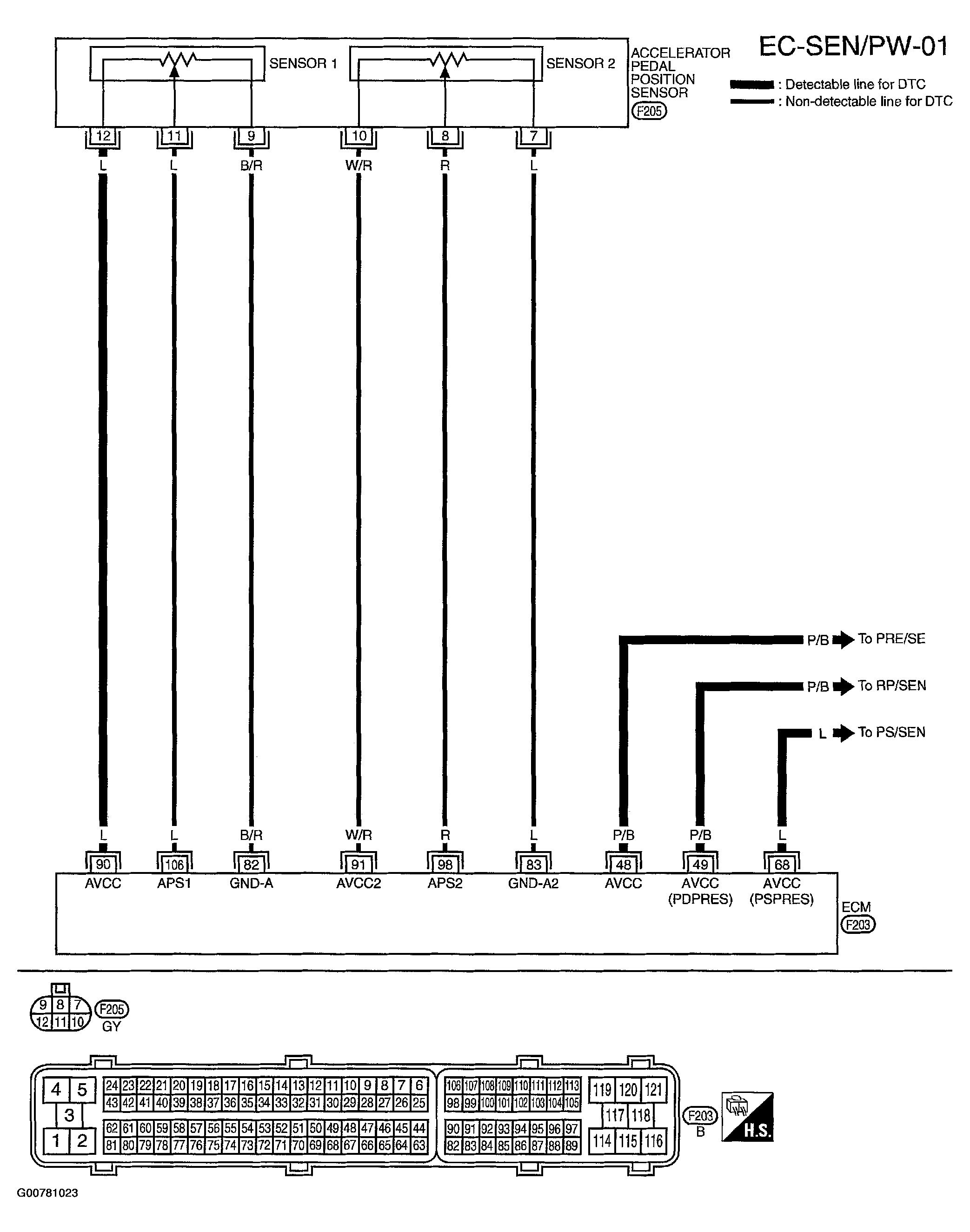

Fig 1: Wiring Diagram Of Accelerator Pedal Position Sensor
G00781023Courtesy of NISSAN MOTOR CO., U.S.A.
