DTC P1564: ASCD Steering Switch
›
Component Inspection
›
ASCD Steering Switch
ASCD Steering Switch
Disconnect ASCD steering switch.
Check continuity between terminals 1 and 2 by pushing each switch.
Fig 1: Checking ASCD Steering Switch Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.

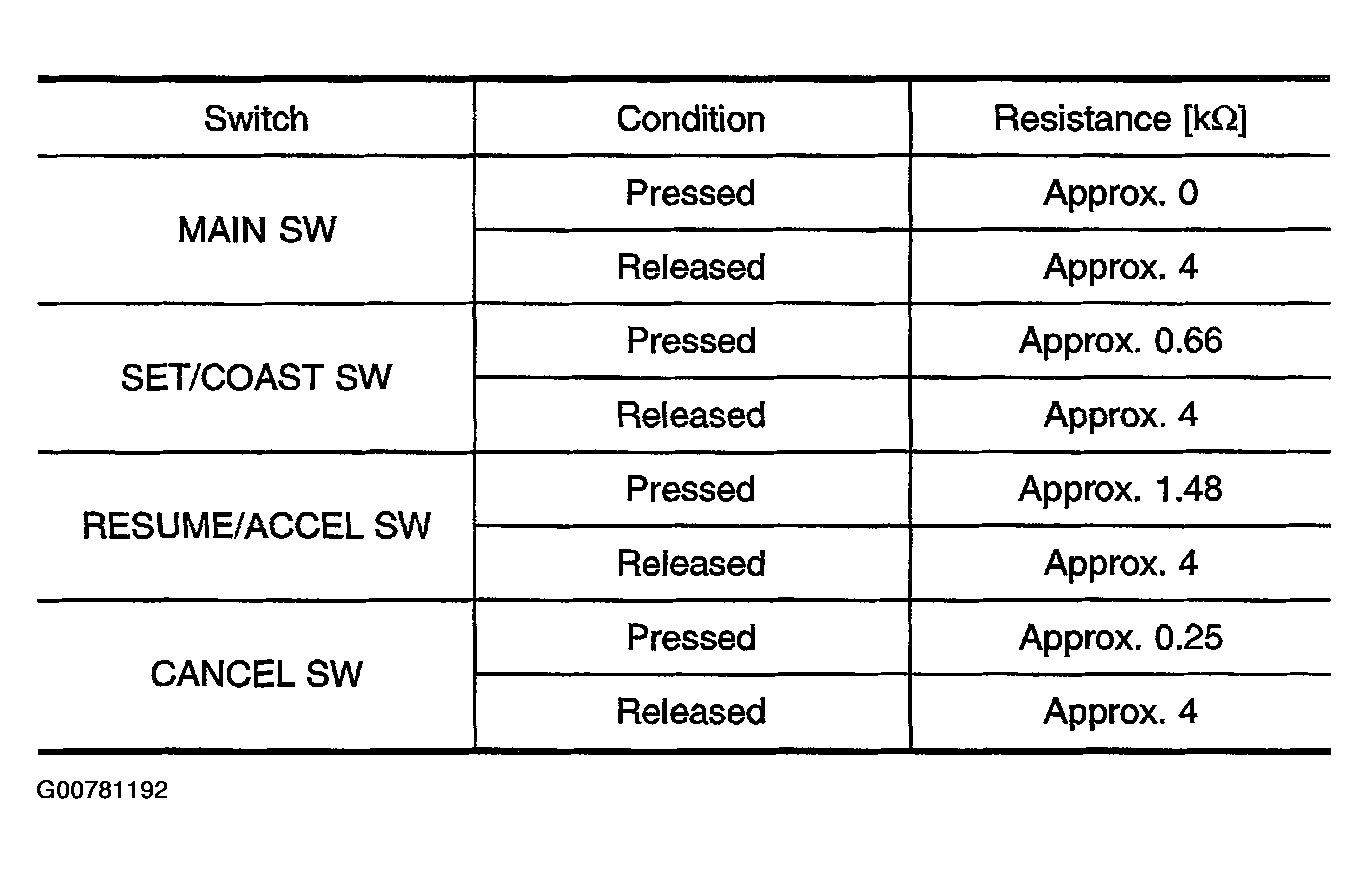

Fig 2: Checking ASCD Steering Switch Continuity Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
