DTC P1564: ASCD Steering Switch
›
Wiring Diagram
DTC P1564: ASCD Steering Switch: Wiring Diagram

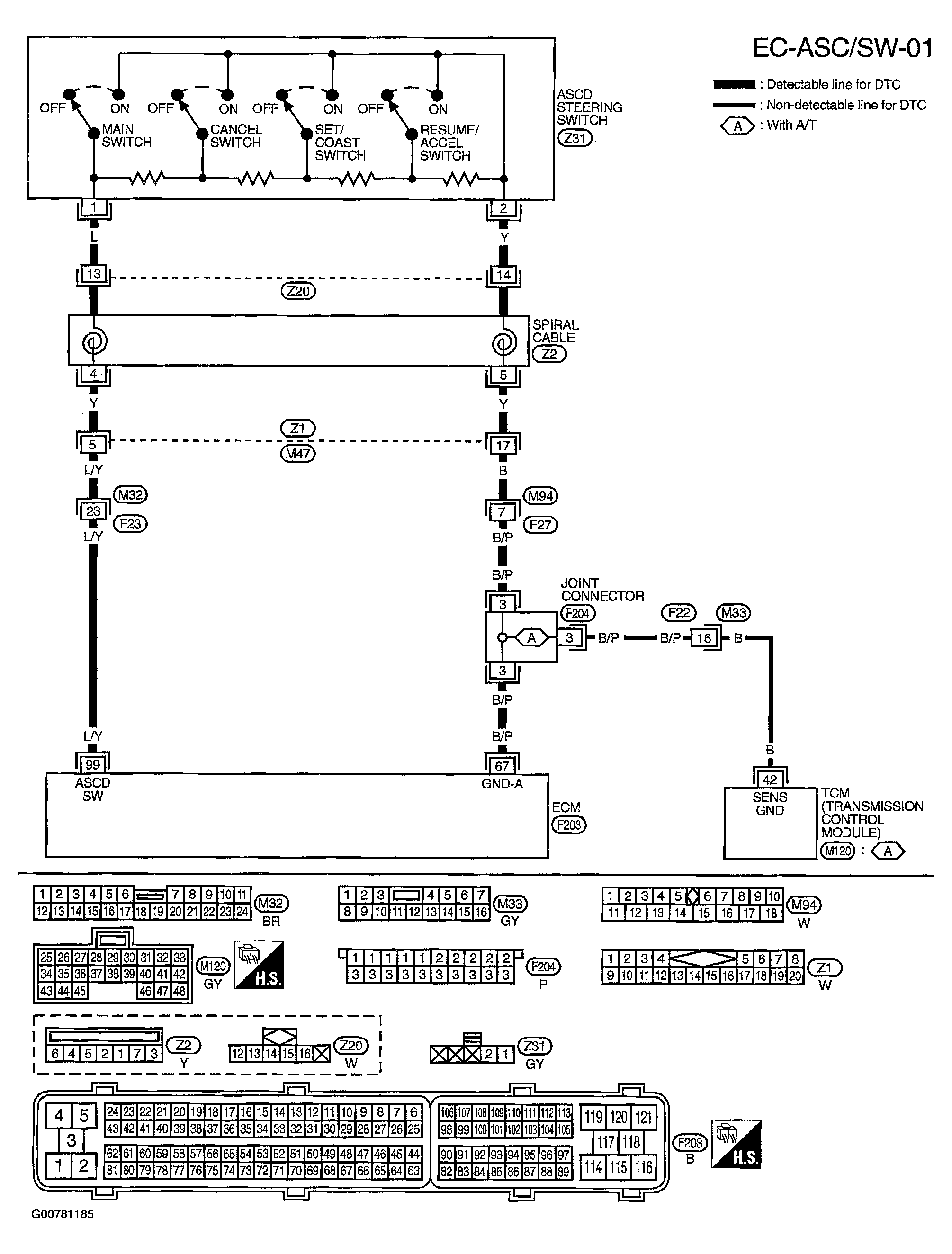

Fig 1: Wiring Diagram - ASCD Steering Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
