DTC P1805: Brake Switch
›
Wiring Diagram
DTC P1805: Brake Switch: Wiring Diagram

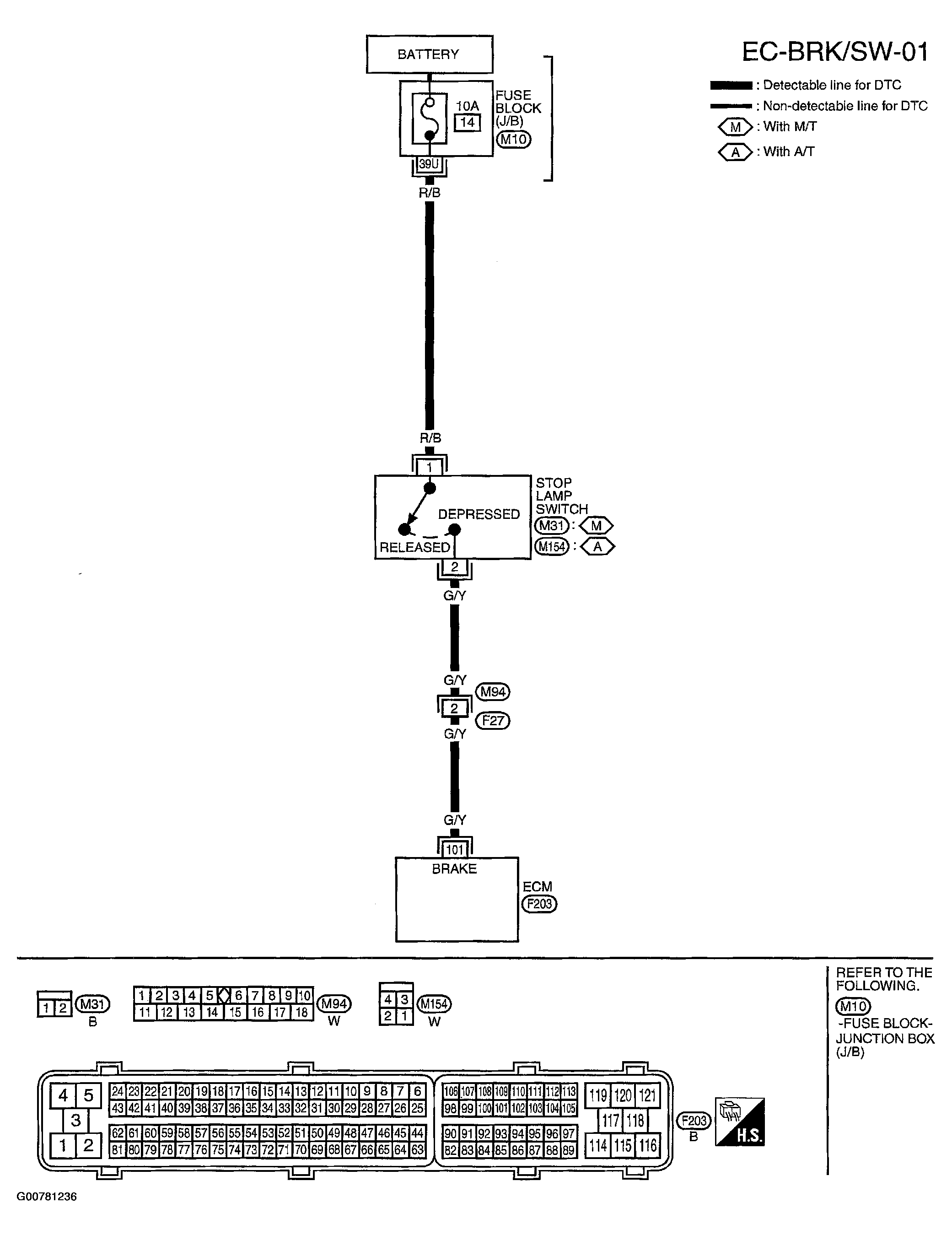

Fig 1: Wiring Diagram - Brake Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
