DTC P2122, P2123: App Sensor: Wiring Diagram

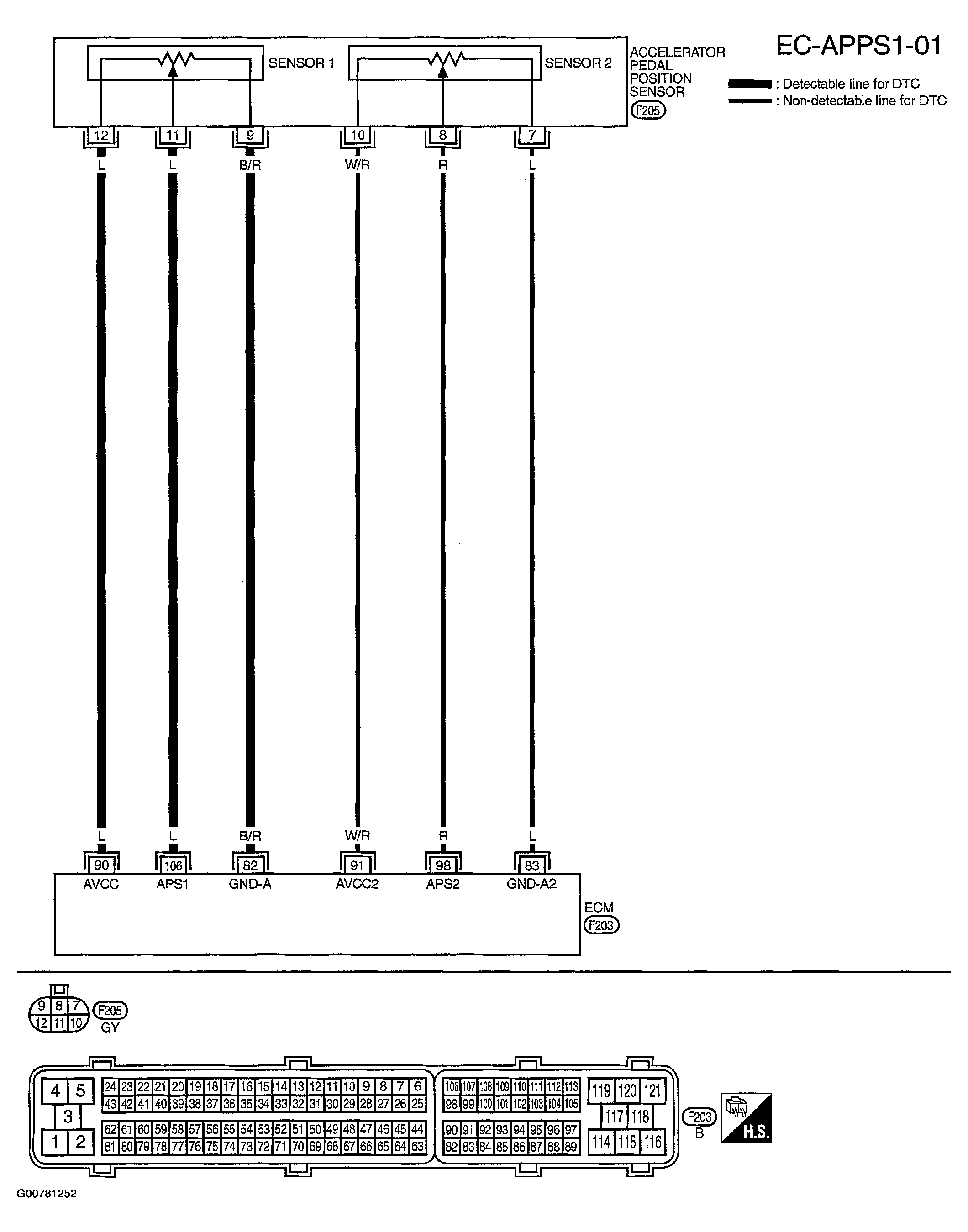

Fig 1: Wiring Diagram - APP Sensor
G00781252Courtesy of NISSAN MOTOR CO., U.S.A.
