DTC P2138: App Sensor
›
Wiring Diagram
DTC P2138: App Sensor: Wiring Diagram

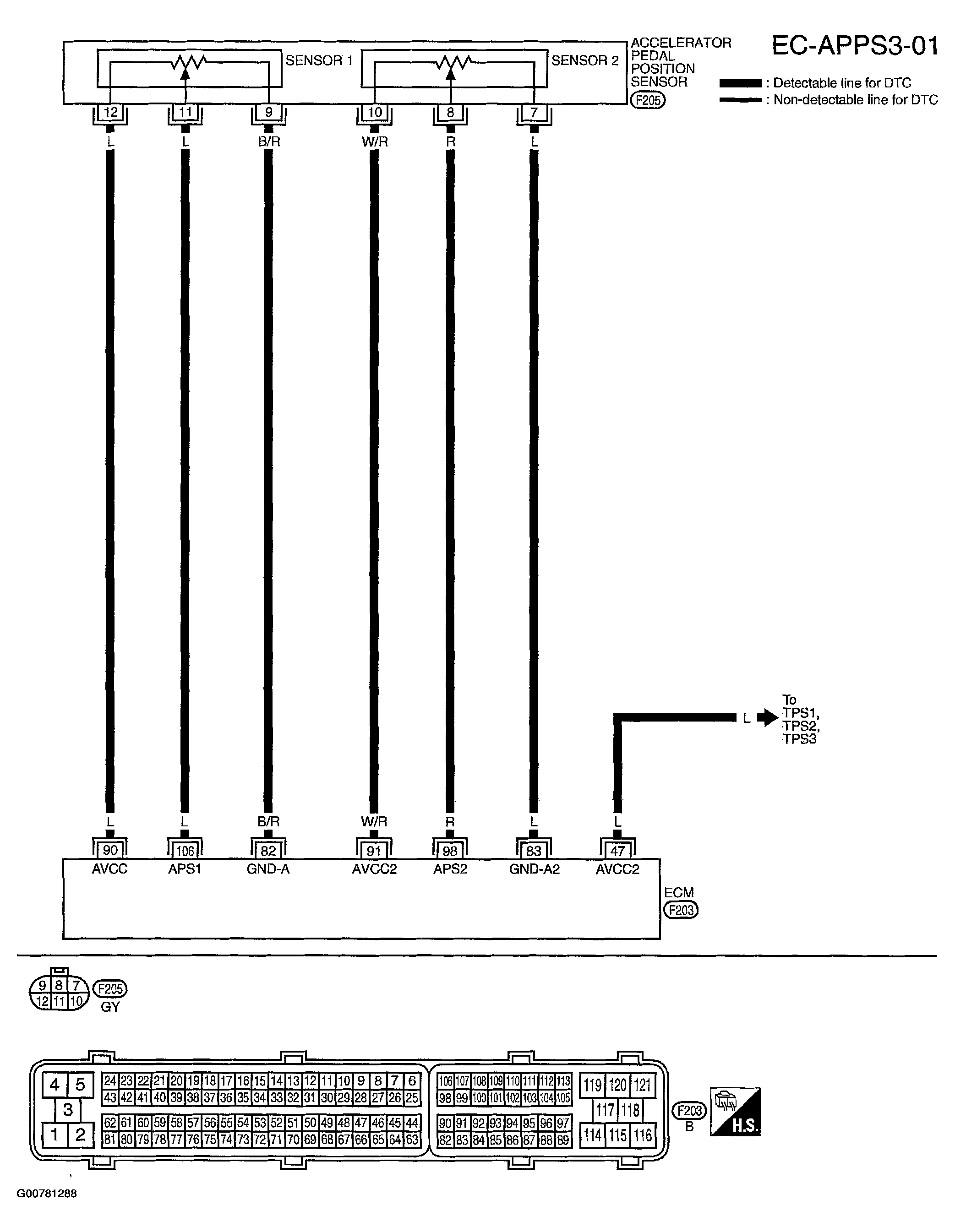

Fig 1: Wiring Diagram - APP Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
