Electrical Load Signal: Wiring Diagram

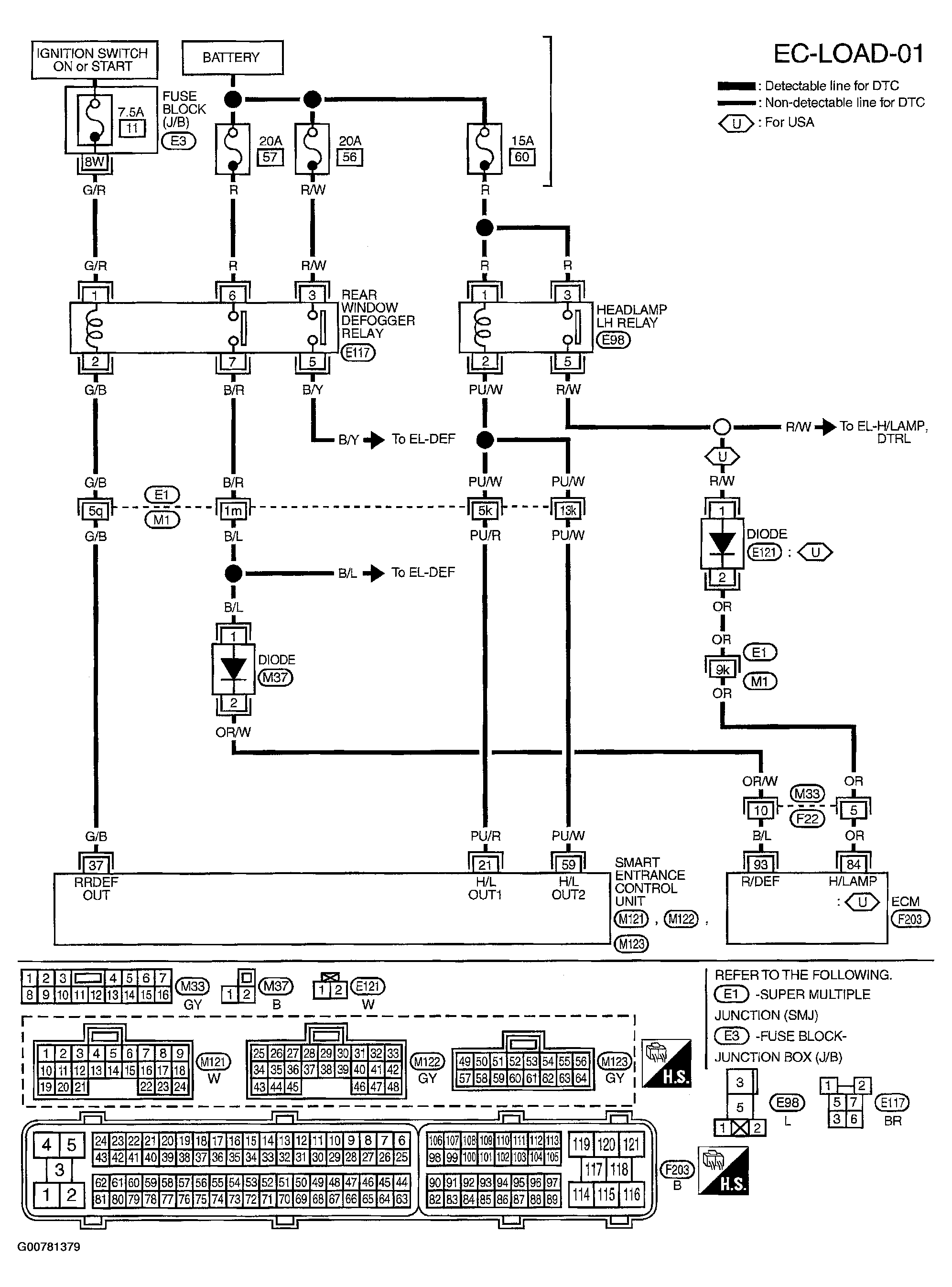

Fig 1: Wiring Diagram - Electrical Load Signal
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
