Vacuum Hose Drawing

Refer to " SYSTEM DIAGRAM " for Vacuum Control System.

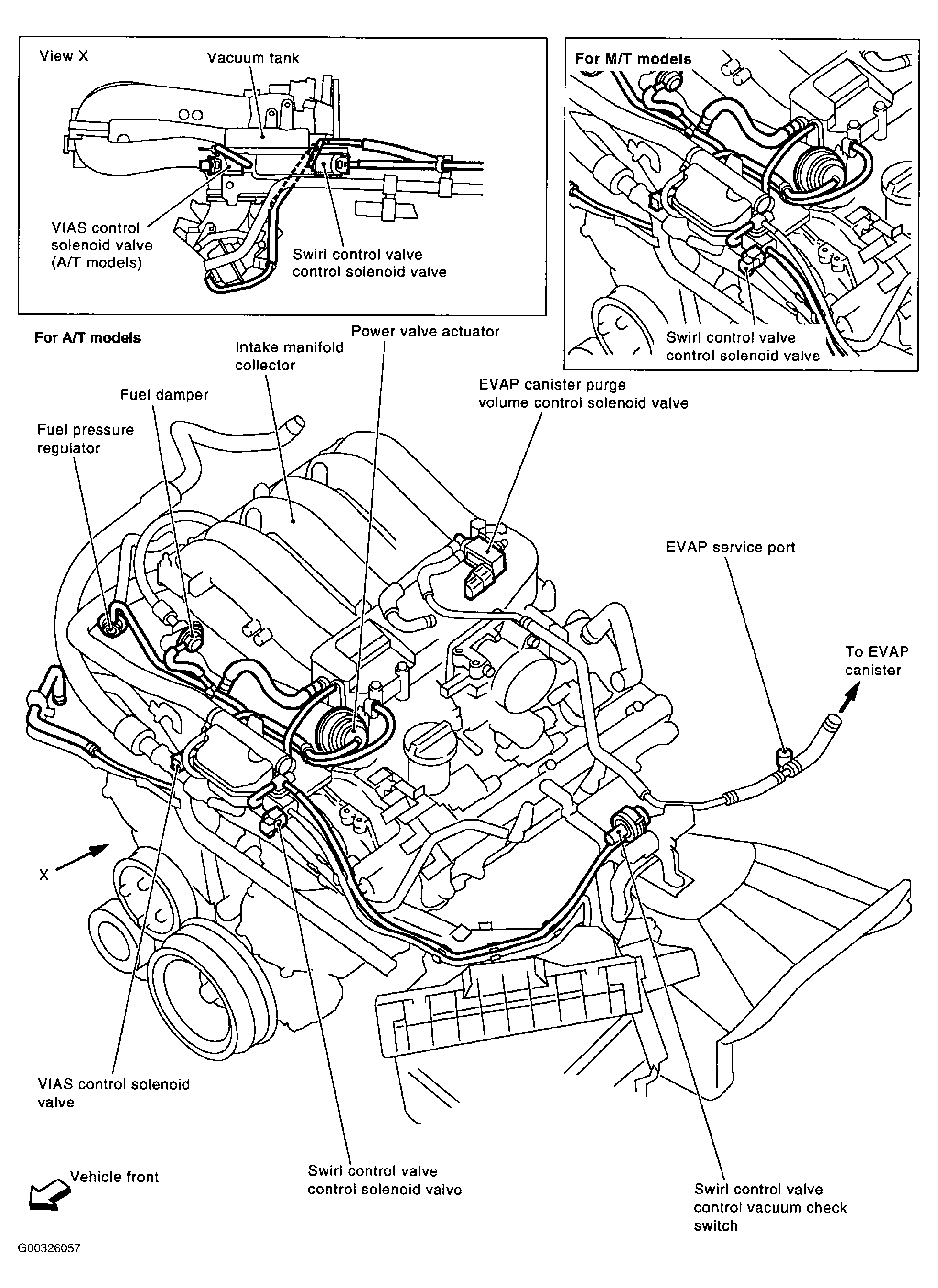

Fig 1: Identifying Vacuum Hose Drawing

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
