Fuel Pump: Wiring Diagram

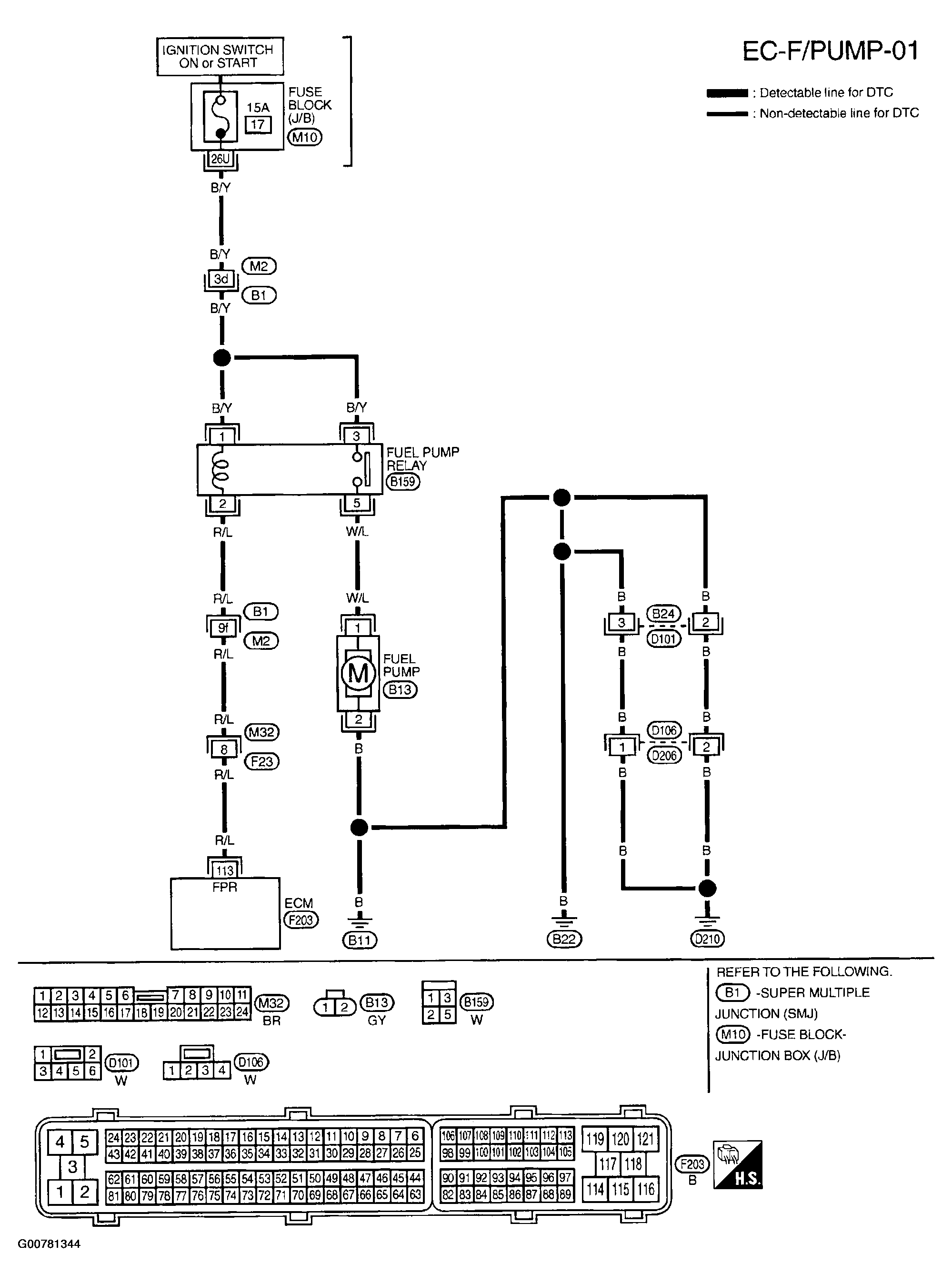

Fig 1: Wiring Diagram - Fuel Pump
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
