Engine Control System: Injector: Wiring Diagram

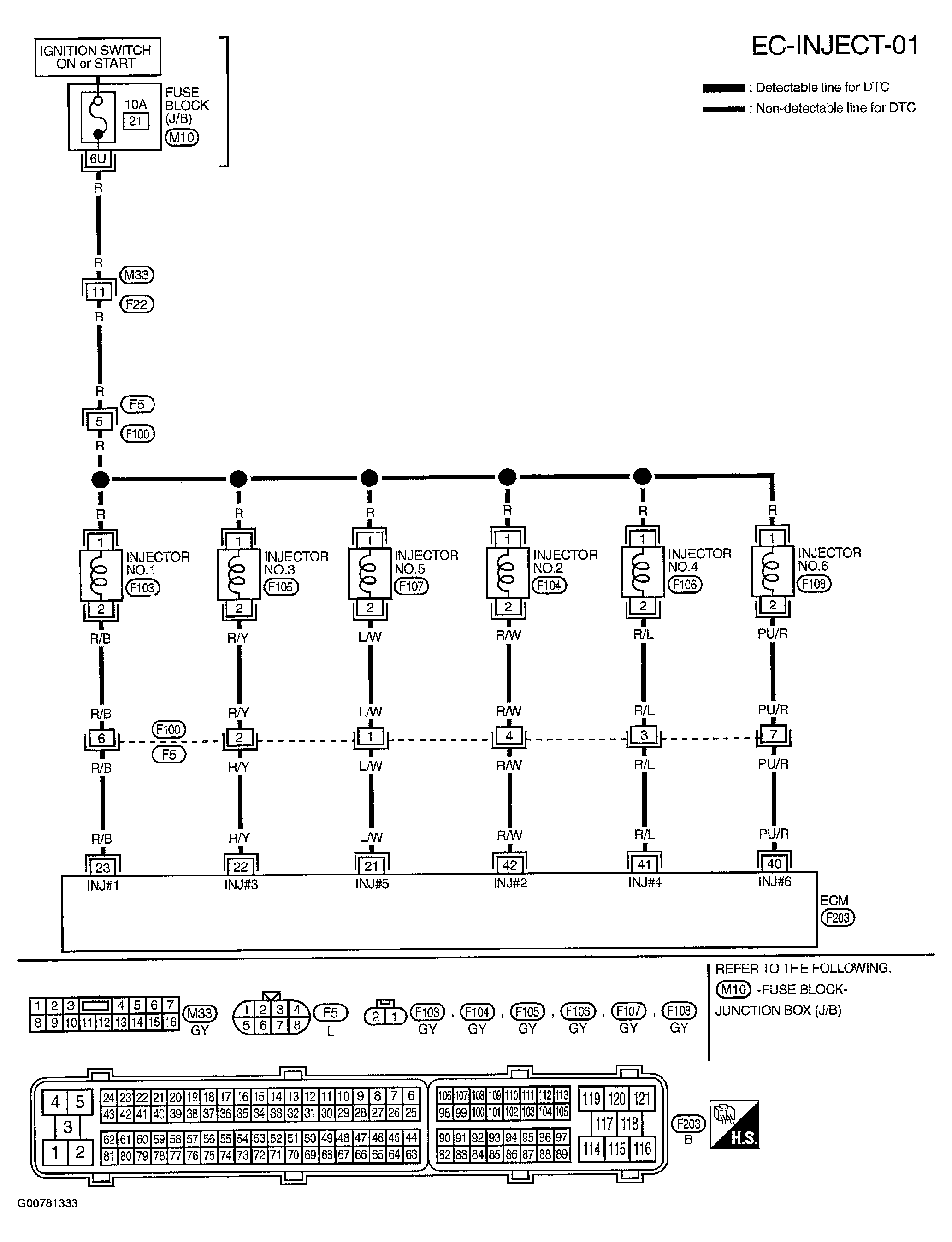

Fig 1: Wiring Diagram - Injector
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
