Data Monitor Mode

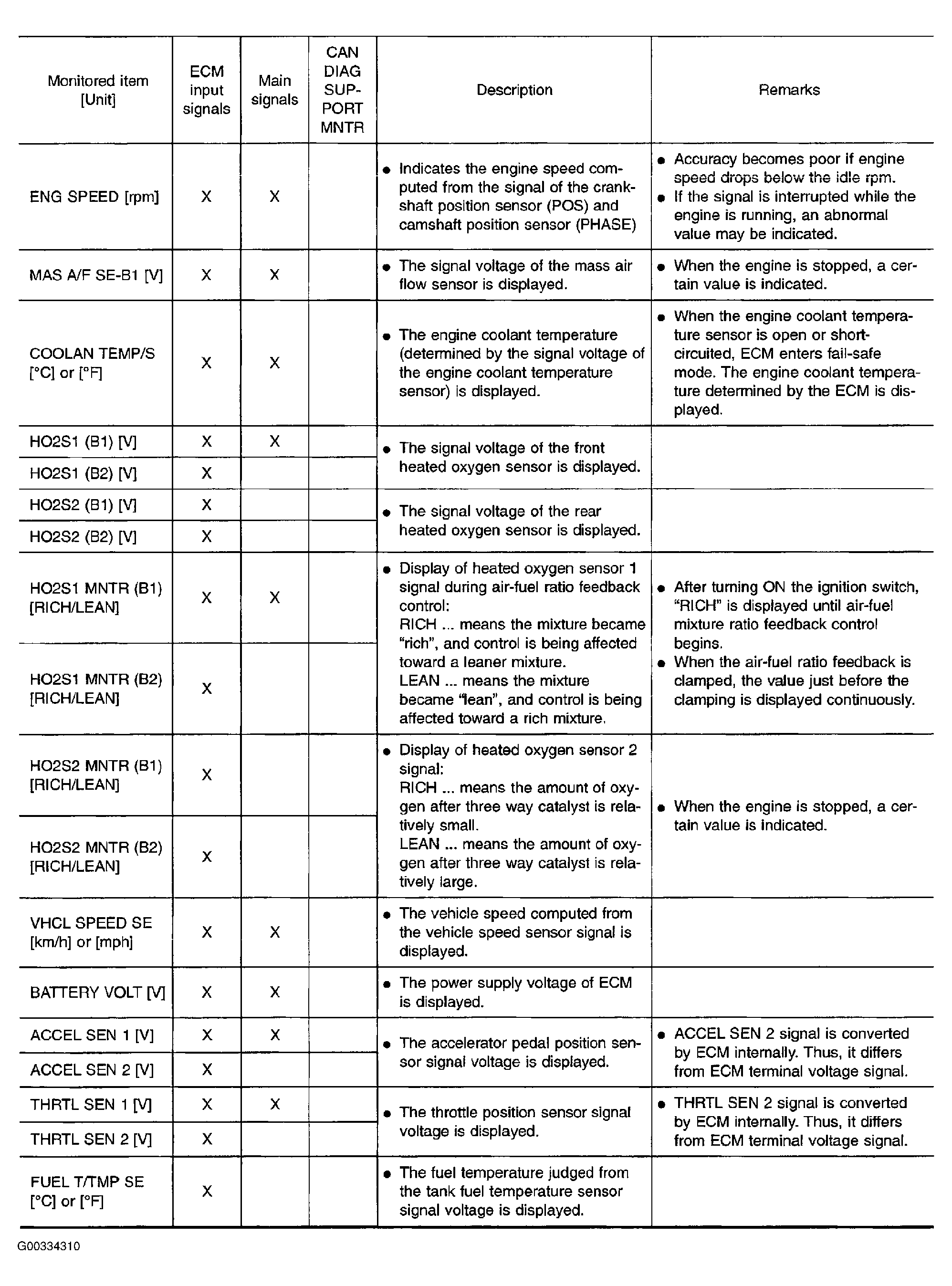

Fig 1: Data Monitor Mode Chart (1 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Data Monitor Mode Chart (2 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Data Monitor Mode Chart (3 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Data Monitor Mode Chart (4 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: Data Monitor Mode Chart (5 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

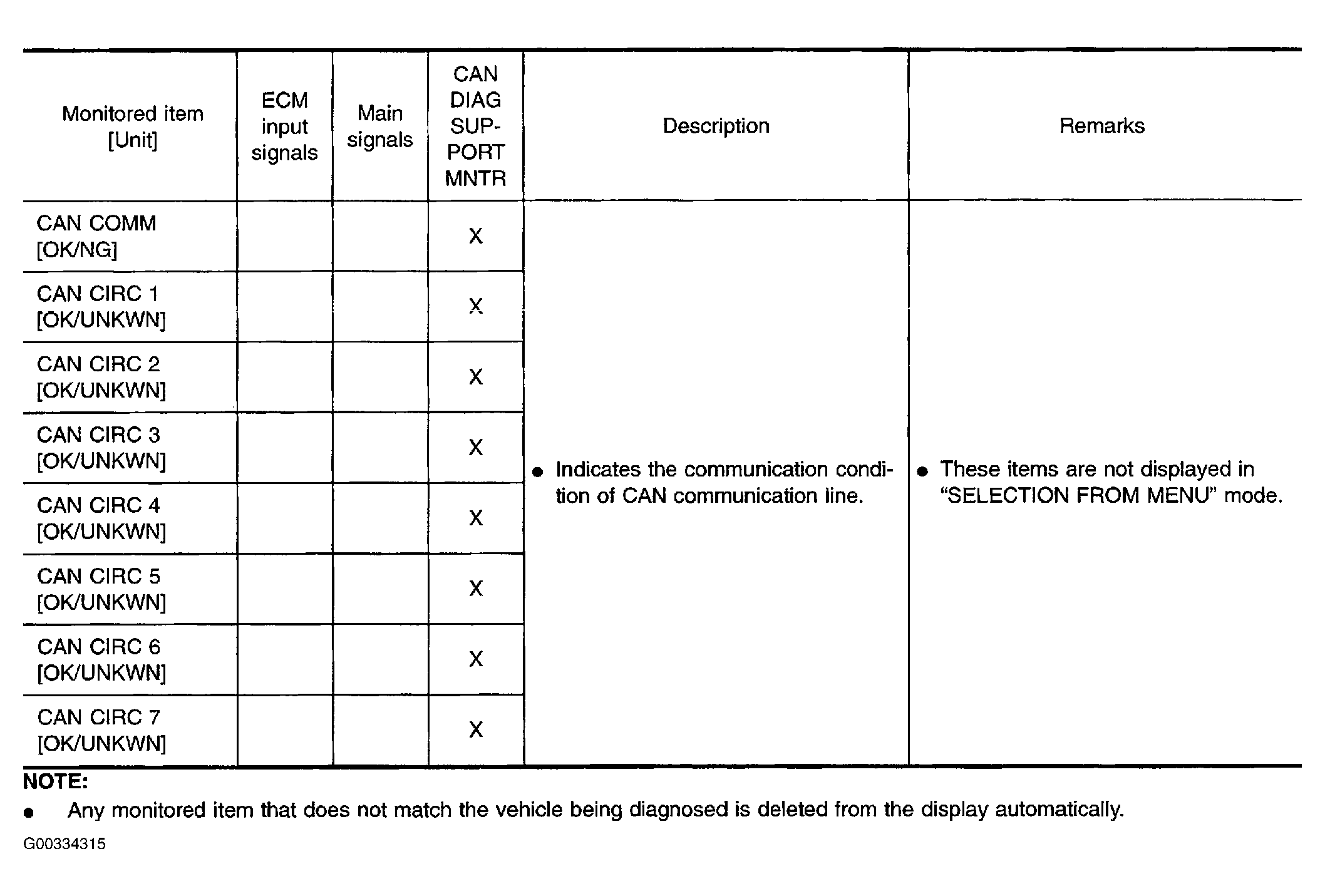

Fig 6: Data Monitor Mode Chart (6 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
