Summary Chart

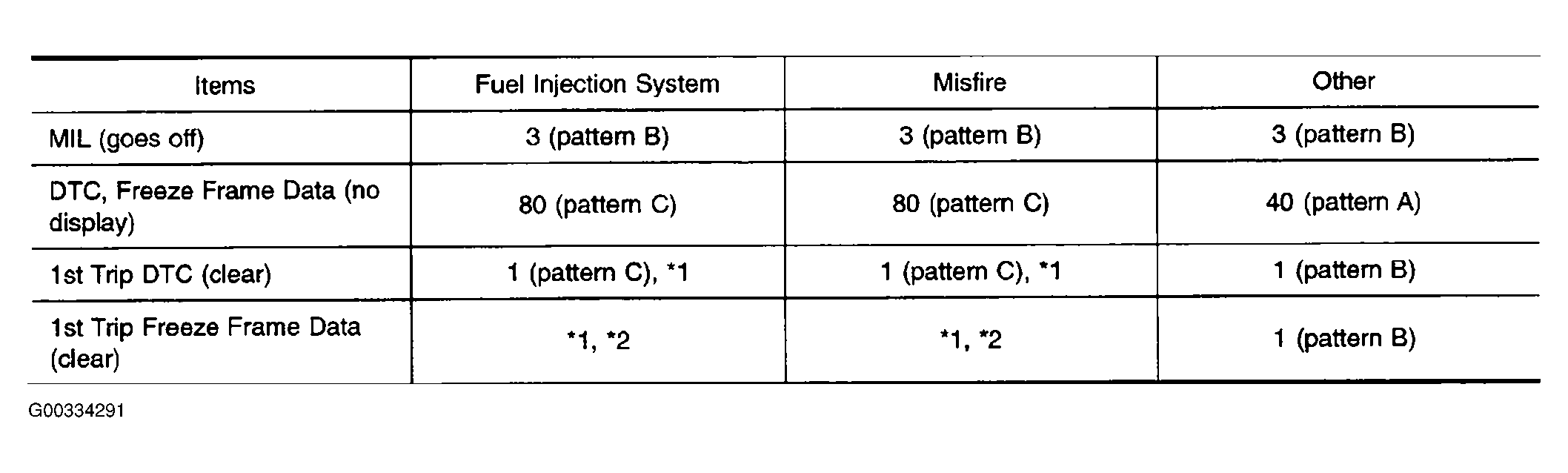

Fig 1: Summary Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

For details about patterns B and C under "Fuel Injection System" and "Misfire", see EXPLANATION FOR DRIVING PATTERNS FOR "MISFIRE < EXHAUST QUALITY DETERIORATION >", "FUEL INJECTION SYSTEM"  .

For details about patterns A and B under "Other", see EXPLANATION FOR DRIVING PATTERNS EXCEPT FOR "MISFIRE < EXHAUST QUALITY DETERIORATION>", "FUEL INJECTION SYSTEM"  .

*1: Clear timing is at the moment OK is detected.

*2: Clear timing is when the same malfunction is detected in the 2nd trip.
