FixVault
Home
›
Nissan-Datsun
›
2004
›
Pathfinder SE, RWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System
›
Preparation
›
Commercial Service Tools
Commercial Service Tools

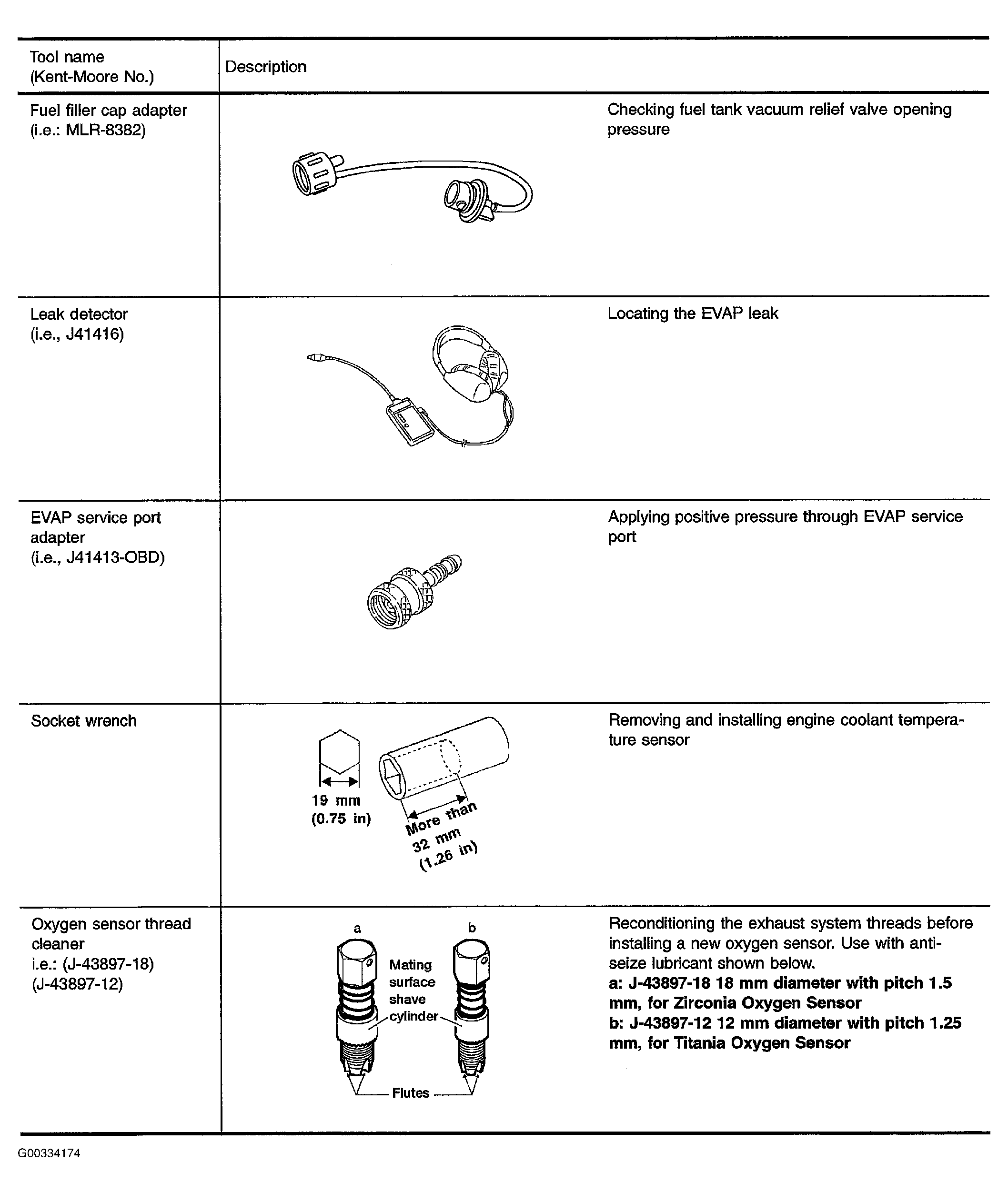

Fig 1: Identifying Special Service Tools (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

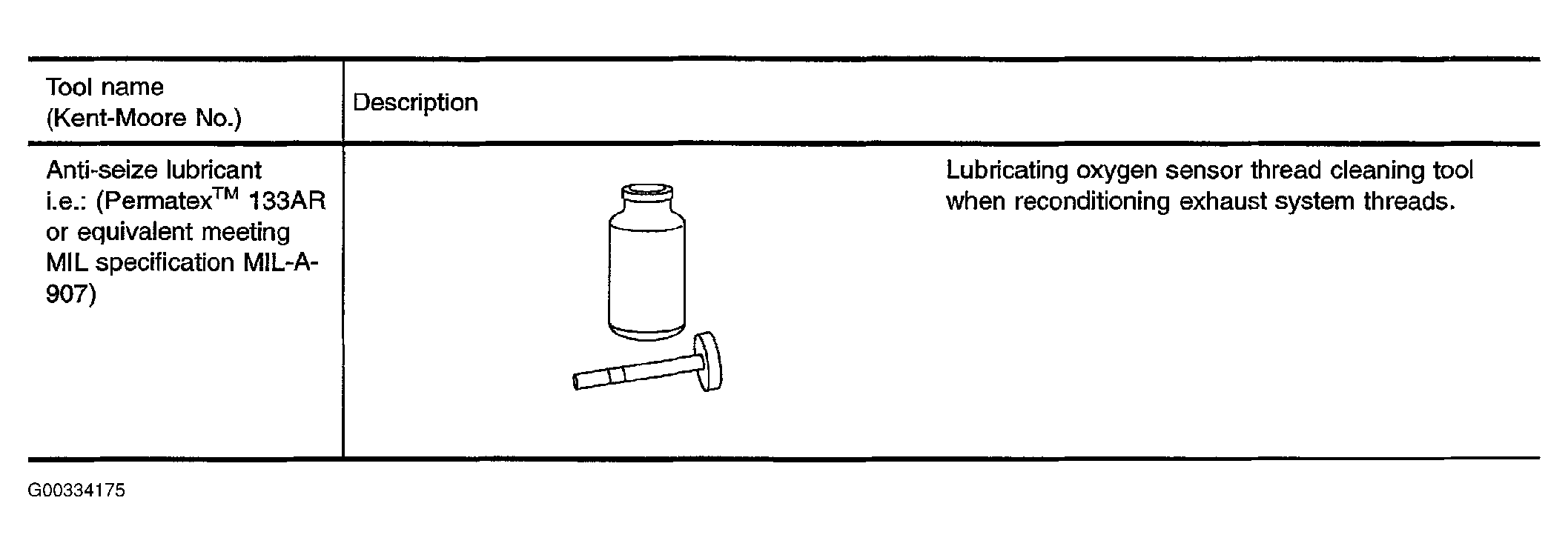

Fig 2: Identifying Special Service Tools (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
