Variable Induction Air Control System (VIAS): Wiring Diagram

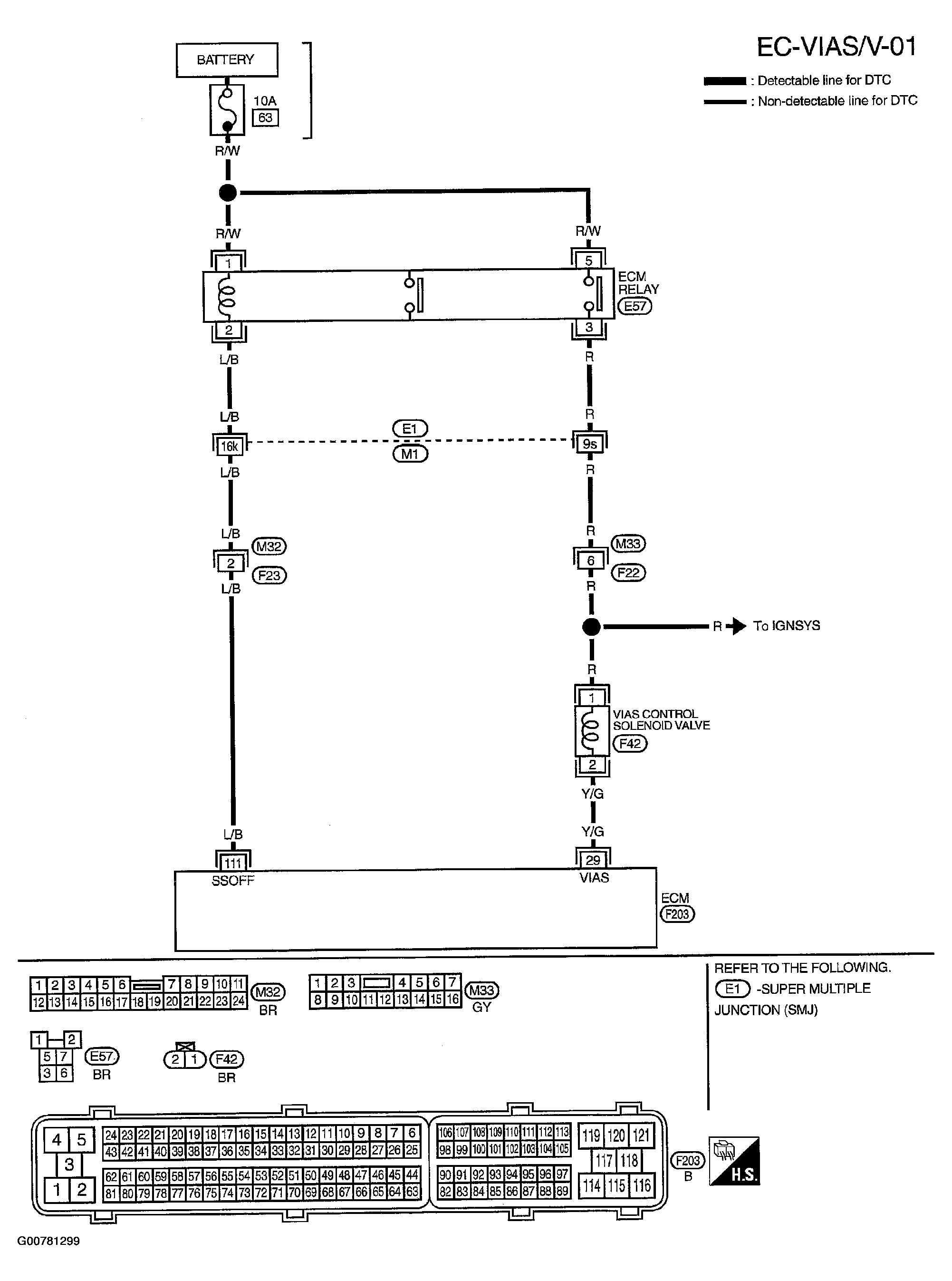

Fig 1: Wiring Diagram - Variable Induction Air Control System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
