DTC P0335: CKP Sensor (Pos): Wiring Diagram

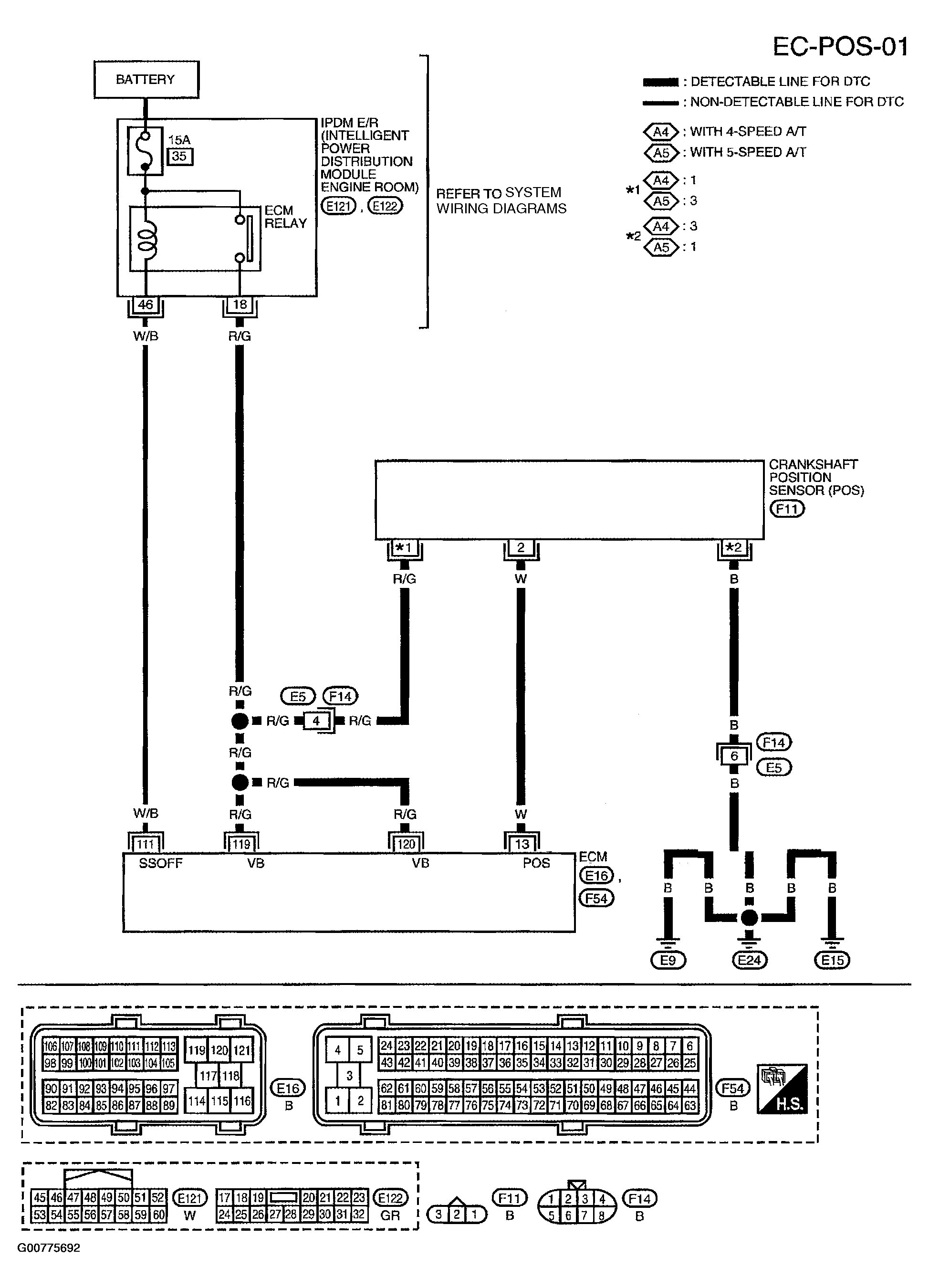

Fig 1: Displaying EC-POS-01 Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

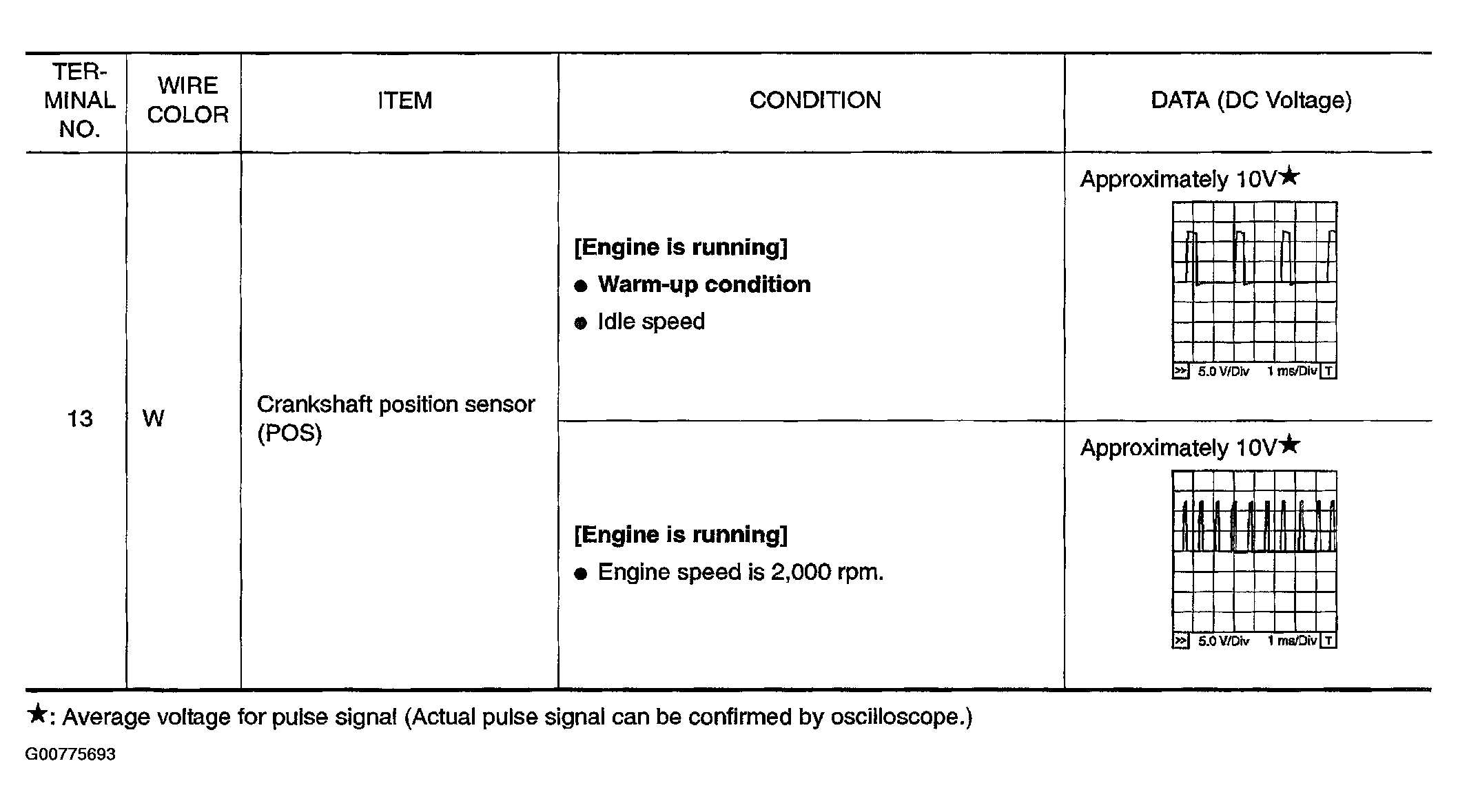

Fig 2: Specification Data Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
