DTC P0011, P0021: IVT Control
›
On Board Diagnosis Logic
›
Notes
On Board Diagnosis Logic: Notes

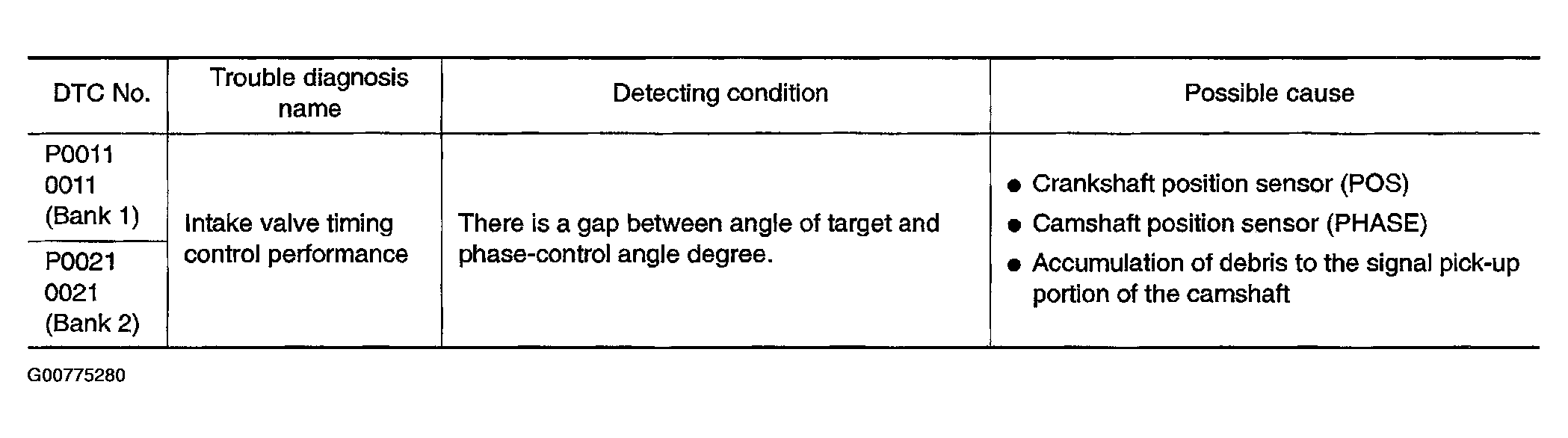

Fig 1: On Board Diagnosis Logic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
