DTC P0112, P0113: IAT Sensor: Wiring Diagram

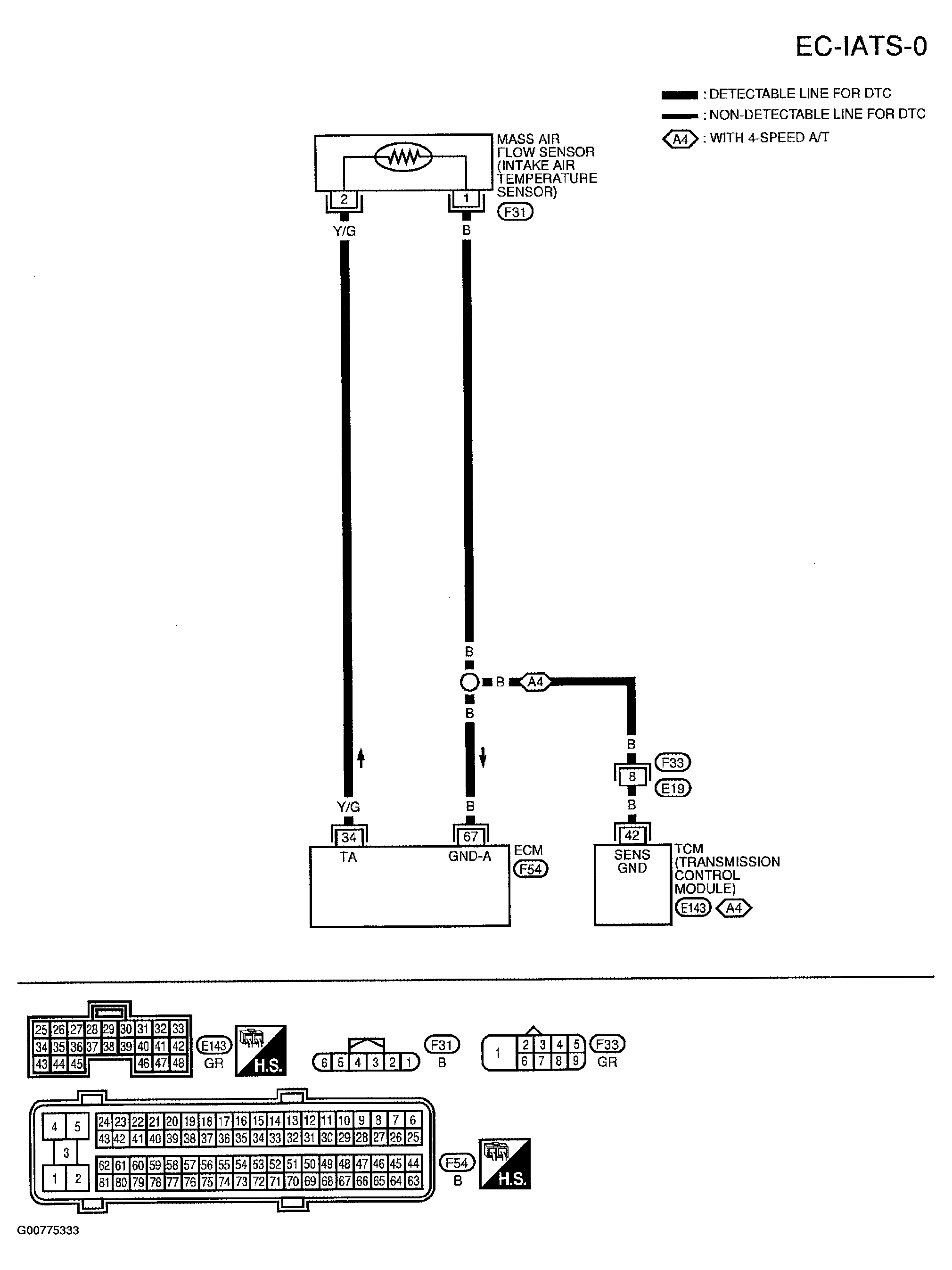

Fig 1: Displaying EC-IATS-0 Wiring Diagram
G00775333Courtesy of NISSAN MOTOR CO., U.S.A.
