DTC P0172, P0175: Fuel Injection System Function: Wiring Diagram: Bank1

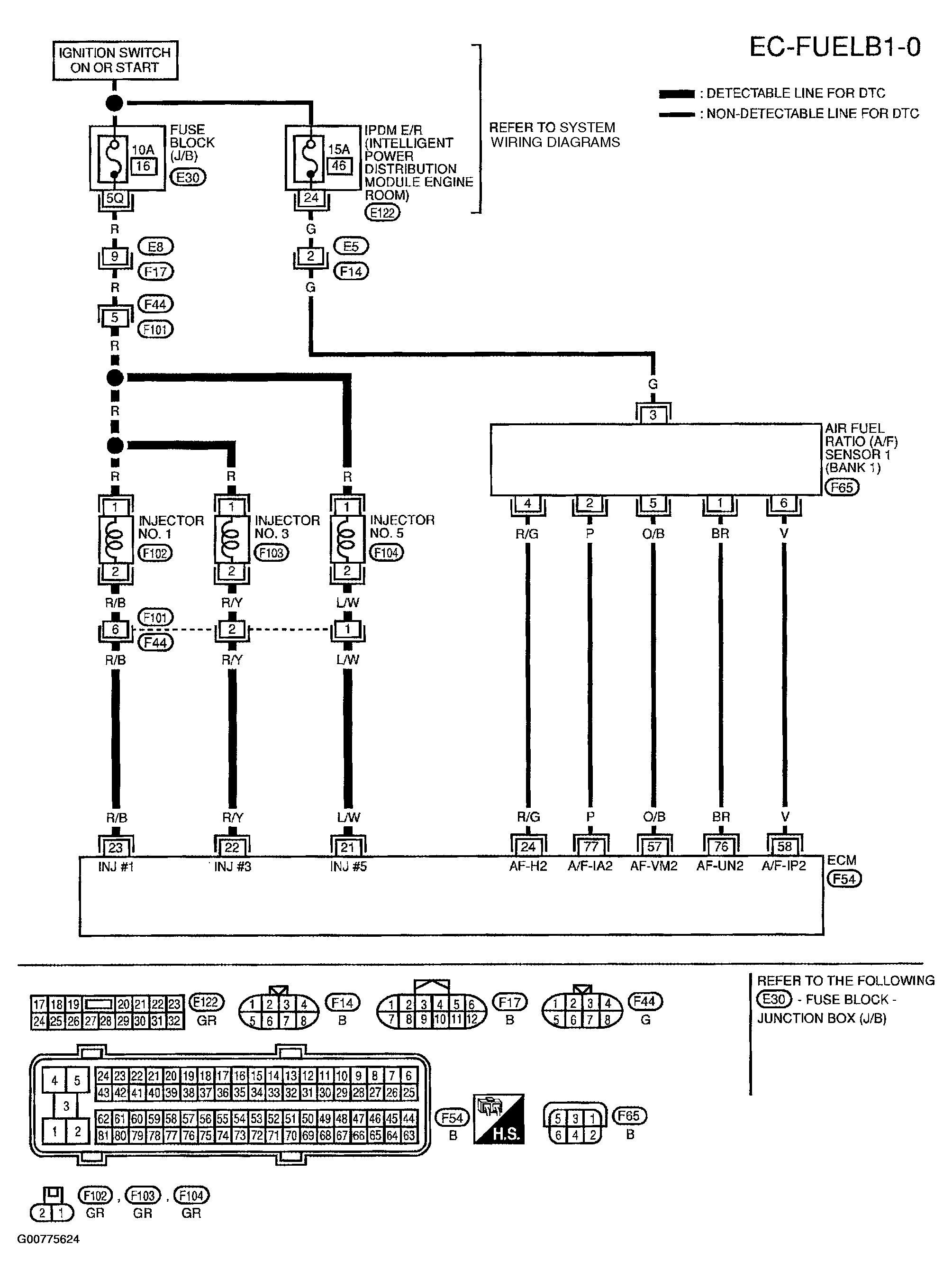

Fig 1: Displaying EC-FUELB1-0 Wiring Diagram
G00775624Courtesy of NISSAN MOTOR CO., U.S.A.
